WIRING DIAGRAMS
Restaurant
scenarios can be saved using a scenario module (programmed by the TOUCH
SCREEN): for example the loudspeakers can be switched on in the rooms
with different sound levels.
Star centre
E
E
E
E
E
E
E
E
D
E
D
D
D
STAR CENTRE
G
D
E
E
D
E
E
D
E
E
E
D
I
F
C
B
A
L

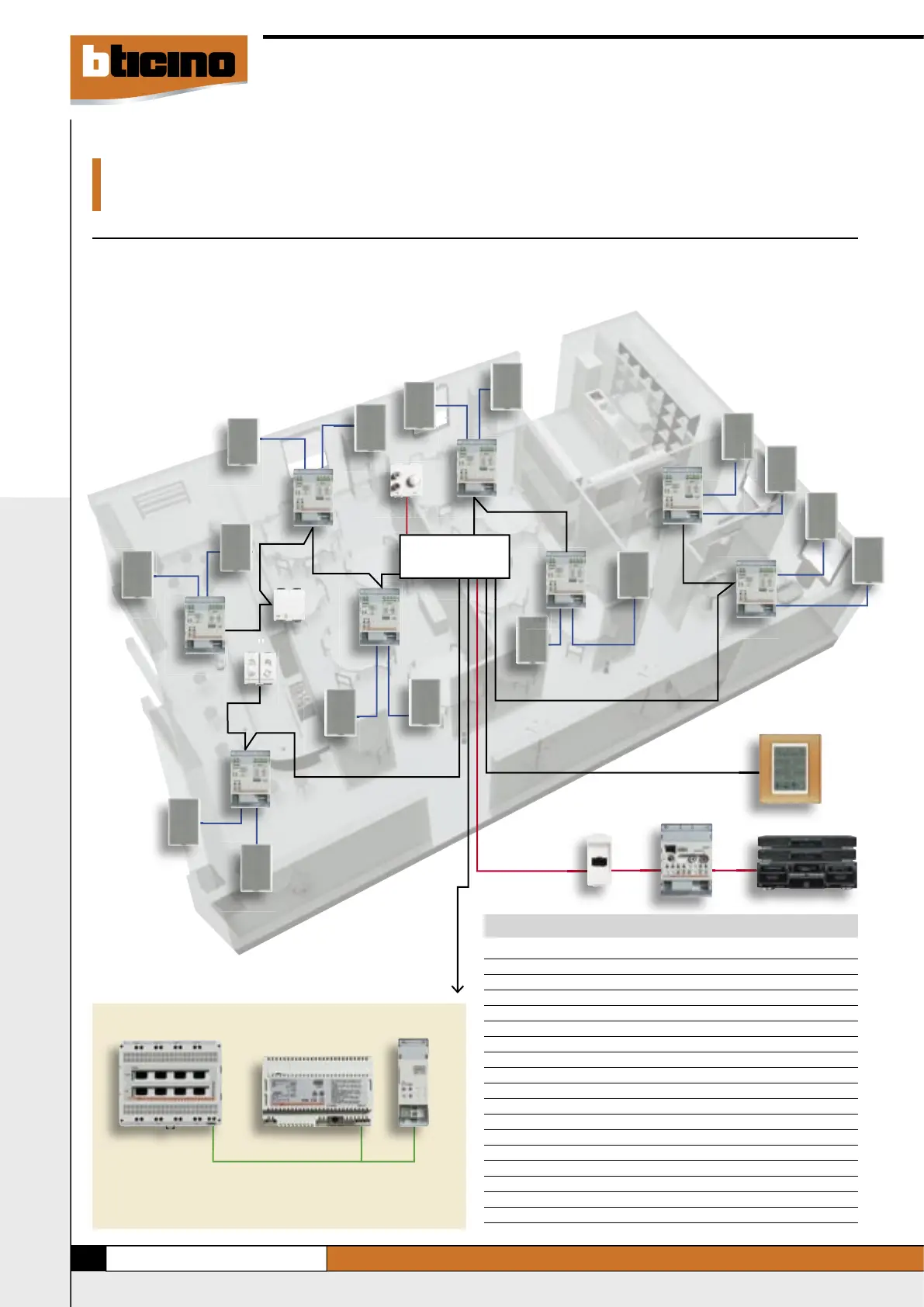

The example has two rooms, a bar area and bathrooms for men and
women. A sound system can be constructed inside a restaurant by installing
wall-mounted loudspeakers for each room (connected to DIN amplifi ers),
two loudspeakers in the bar area and four loudspeakers in the bathrooms.
The system is managed by a TOUCH SCREEN and 3 special controls. Various
H
M
List of material needed to make the system
Item Description Quantity Reference
346000 Power supply 1 A
F441 Audio/video node 1 B
L/N/NT4560 RCA input 1 G
L4561 Stereo control 1 C
F502 Amplifi er for the service sector 9 D
L4567 Wall-mounted loudspeakers 18 E
L4651/2 Special control 3 H
L/N/NT4683 TOUCH SCREEN 1 I
F420 Scenario modules 1 L
L/N/NT4911BF Right button cover 3
L/N/NT4911AI Left button cover 3
3499 Line terminator 4
33698...(2/3/4)
8-contact connector 1 F
336904 Twisted cable with 2 conductors 1c
L/N/NT4575SB Radio interface 1 M
L4572SB Radio control 1
L/N/NT4919SB Button cover 2
NOTE: the above system can also be achieved with AXOLUTE Items
