CONFIGURATION MY HOME - 2 WIRE SOUND SYSTEM
CONFIGURATION
A configuration which is only performed on the special controls or when
programming the TOUCH SCREEN. All the management commands on
amplifier Item L4562 can be performed. Configuring the device:
• A=AMB
• PL/PF=1
• SPE=8
CONFIGURATION FOR ROOM CONTROL
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Room 1
A=1
PL/PF=1
SPE=8
A=1
PL/PF=2
SPE=8
Point to point
control
Room 2
Amplifiers
A=1
PF=1
A=1
PF=2
Control of
Room 1
A=AMB
PL/PF=1
SPE=8
A configuration which is only performed on the special controls or when
programming the TOUCH SCREEN. All the management commands can be
performed as in the room control configuration apart from adjusting the
volume.
Configuring the device:
• A=GEN
• PL/PF= (in this situation the PL/PF is not configured)
• SPE=8

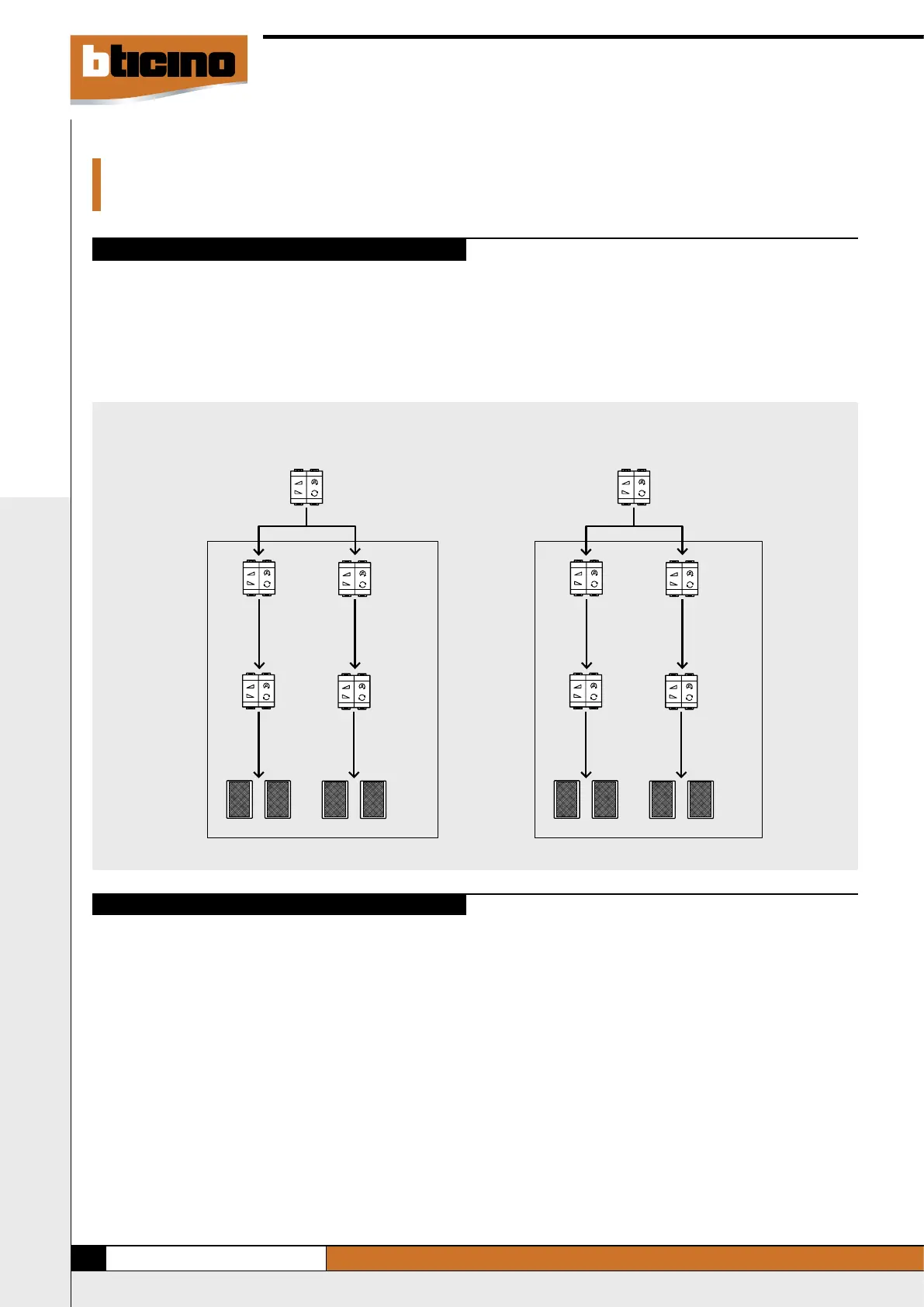

CONFIGURATION FOR GENERAL COMMAND
Pressing the device buttons affects all the amplifiers configured with “A”,
the same as the configurator positioned on the device “PL/PF” (in this case
all the amplifiers with A = 1).
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A=2
PL/PF=1
SPE=8
A=2
PL/PF=2
SPE=8
A=2
PF=1
A=2
PF=2
Control of
Room 2
A=AMB
PL/PF=2
SPE=8
This configuration lets the device act on the operation of all the amplifiers
inside the room independent of the type of amplifier configuration.
