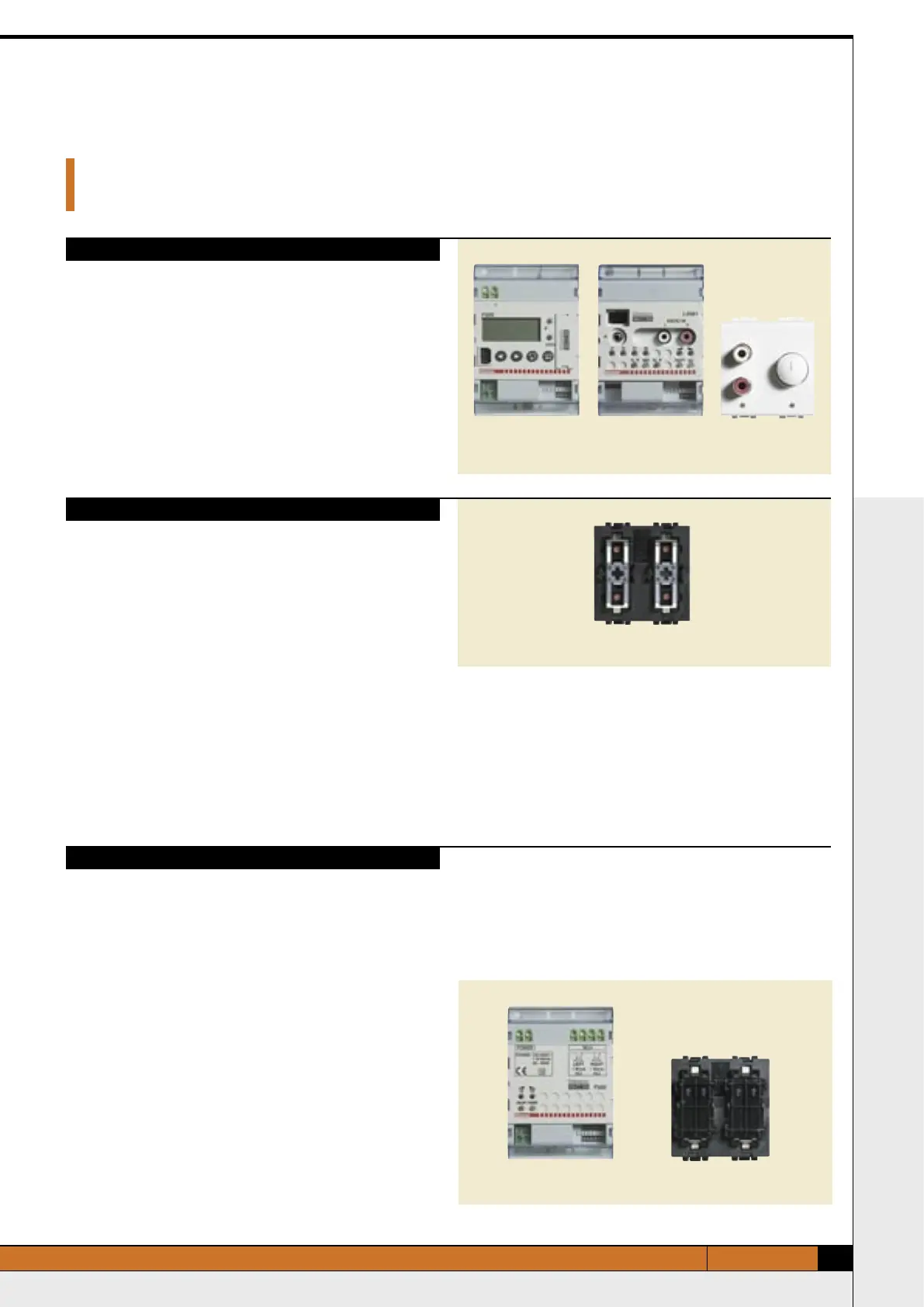

CONFIGURATION
MY HOME GUIDE 2 WIRE SOUND SYSTEM
51
CONFIGURATION
CONFIGURATION
Operating modes
Radio tuner FM Item F500
S1 = 1 to 4 local address of the sound source
RCA input Item HC/HS/L/N/NT4560
S1 = 1 to 4 local address of the sound source
Stereo control Item L4561
S1 = 1 to 4 local address of the sound source
M1 = 1 to 4 configuration of how many devices must be commanded inside
the same device, Max 4 (example HI-FI systems with radio, CD
reader etc…)
M2 = 1 to 6 time which elapses between a command and the next during
the source switching on sequence (see instruction sheet)
SOUND SOURCES
Radio tuner Stereo control RCA input
Special control Item L4651/2
A = 1 to 9 address of the room of the amplifier to be commanded
PL/PF = 0 to 9 address of the amplifier to be commanded
SPE = 8 sound system mode
M = 0 (follow me mode)
*
or
A = AMB room configuration
PL/PF = 1 to 9 configuration of the room to be commanded (in this case all
the amplifiers of the same room will be commanded)
SPE = 8 sound system mode
M=1 (source activation S = 1)
*
or
A = GEN this command switches on all the amplifiers in the home
PL/PF = /
SPE = 8 sound system mode
M = 4 (source activation S = 4)
*
SPECIAL CONTROL
Special control
Stereo amplifier Item L4562
A = 1 to 9 address of the amplifier room
PL = 0 to 9 amplifier address
M2 = - (no configurator) when the amplifier is switched on, the last source
which was on is activated, “FOLLOW ME” mode
= 1 to 4 when the amplifier is switched on, the source with the same
configuration as that set on the device itself switches on
(example amplifier with M2=2, in this case the source with S=2
will switch on), “NO FOLLOW ME” mode.
Amplifier for DIN rail Item F502
A = 1 to 9 address of the amplifier room
PL = 0 to 9 address of the amplifier
M1 = - (no configurator) supplies 20% of the maximum volume
= 2 supplies 50% of the maximum volume
= 4 supplies 100% of the maximum volume
M2 = - (no configurator) when the amplifier is switched on, the last source
which was on is activated, “FOLLOW ME” mode
= 1 to 4 when the amplifier is switched on, the source with the same
configuration as that set on the device itself switches on
(example amplifier with M2=2, in this case the source with S=2
will switch on), “NO FOLLOW ME” mode.
AMPLIFIERS
M3 = 1
1 both the outputs reproduce the signal received on the LEFT channel
= 2
both the outputs reproduce the signal received on the RIGHT channel
= 3 the amplifier reproduces a monophonic signal on both the
loudspeaker outputs
* : configure M1 only if the system is integrated with the video door-entry system.
DIN amplifier Stereo amplifier
NOTE (
*
):
M 0 to 9 indicates the source to be activated before switching on the
amplifier. If M = 0, source 1 will switch on without first
switching the sources to OFF (follow-me mode)
Example:
- if A = 1, PL1/PF1 and M1 = 3 3 the Radio control will manage the amplifier
with address A = 1 and PF = 1 and will activate source number 3.
