Bticino MY HOME User Manual

CONFIGURATION
MY HOME GUIDE 2 WIRE SOUND SYSTEM
49
CONFIGURATION
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF

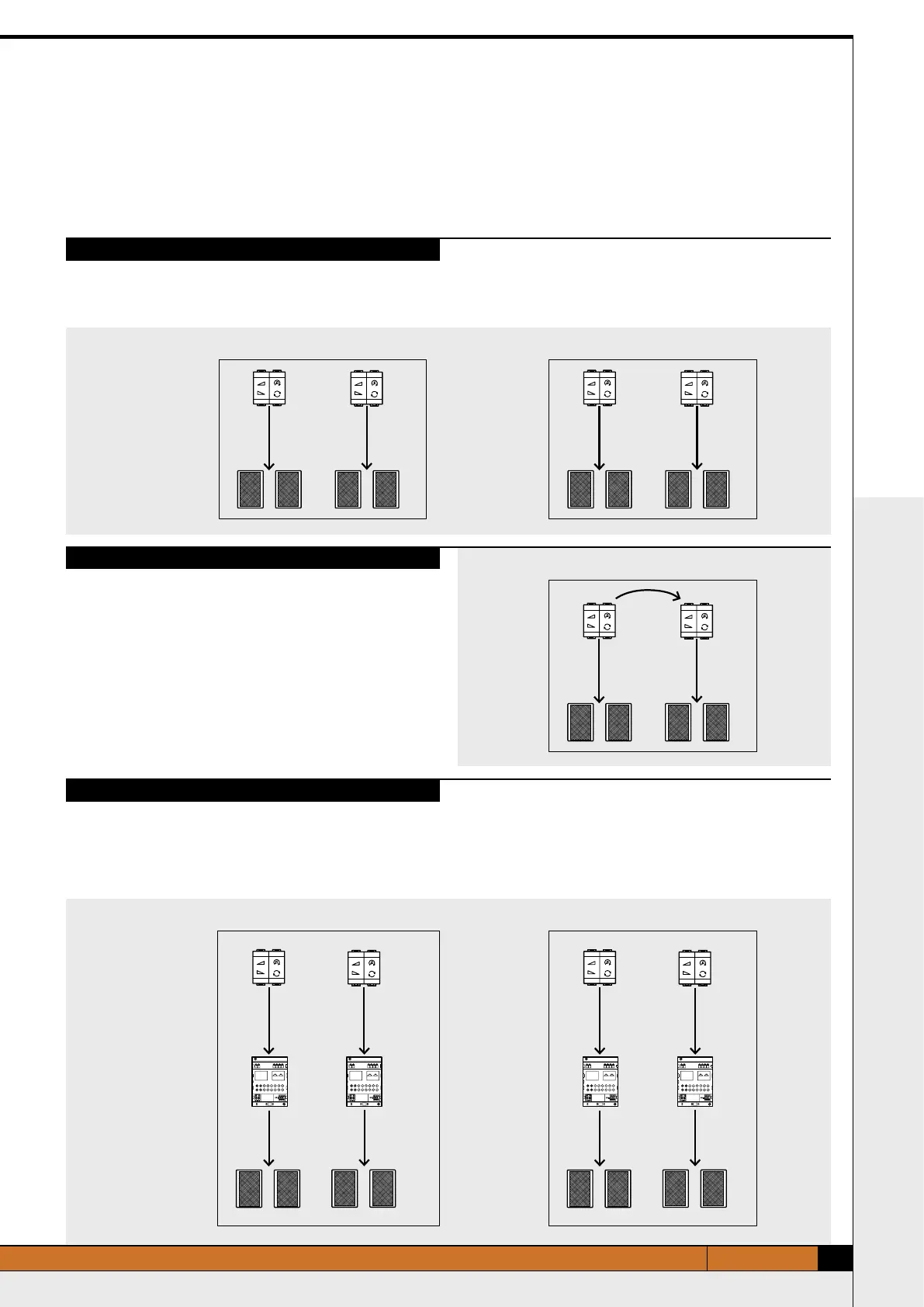

Using only the amplifiers, without them being controlled by special controls
or TOUCH SCREEN, the devices are configured on housings A and PF.
Room 1
A=1
PF=1
A=1
PF=2
Amplifiers
Single control
Room 2
A=2
PF=1
A=2
PF=2
Using 2 amplifiers configured with:
• 1st amplifier: A=1, PF=1
• 2nd amplifier: A=1, PF=1, M1=SLA
If the volume is adjusted on one amplifier, it is automatically adjusted on
the other amplifier as well. Any command performed on one amplifier takes
place on the other amplifier.
A=1
PF=1
A=1
PF=1
M1=SLA
Amplifiers
Master/Slave
SINGLE CONFIGURATION
MASTER/SLAVE CONFIGURATION
This configuration uses the special controls or a TOUCH SCREEN to control the
amplifiers remotely.
Configuring the special control:
• A=1
• PL/PF=1
POINT TO POINT CONFIGURATION
ON
OFF
ON
OFF
ON
OFF
ON
OFF
• SPE=8 (sound system mode)
on pressing the special control buttons, the device sends its command to the
configured amplifier.
• A=1
• PF=1
Room 1
Room 1
A=1
PL/PF=1
SPE=8
A=1
PL/PF=2
SPE=8
Point to point
control
Room 2
A=2
PF=1
A=2
PF=2
Amplifiers
A=1
PF=1
A=1
PF=2
A=2
PF=1
A=2
PF=2
