WIRING DIAGRAMS

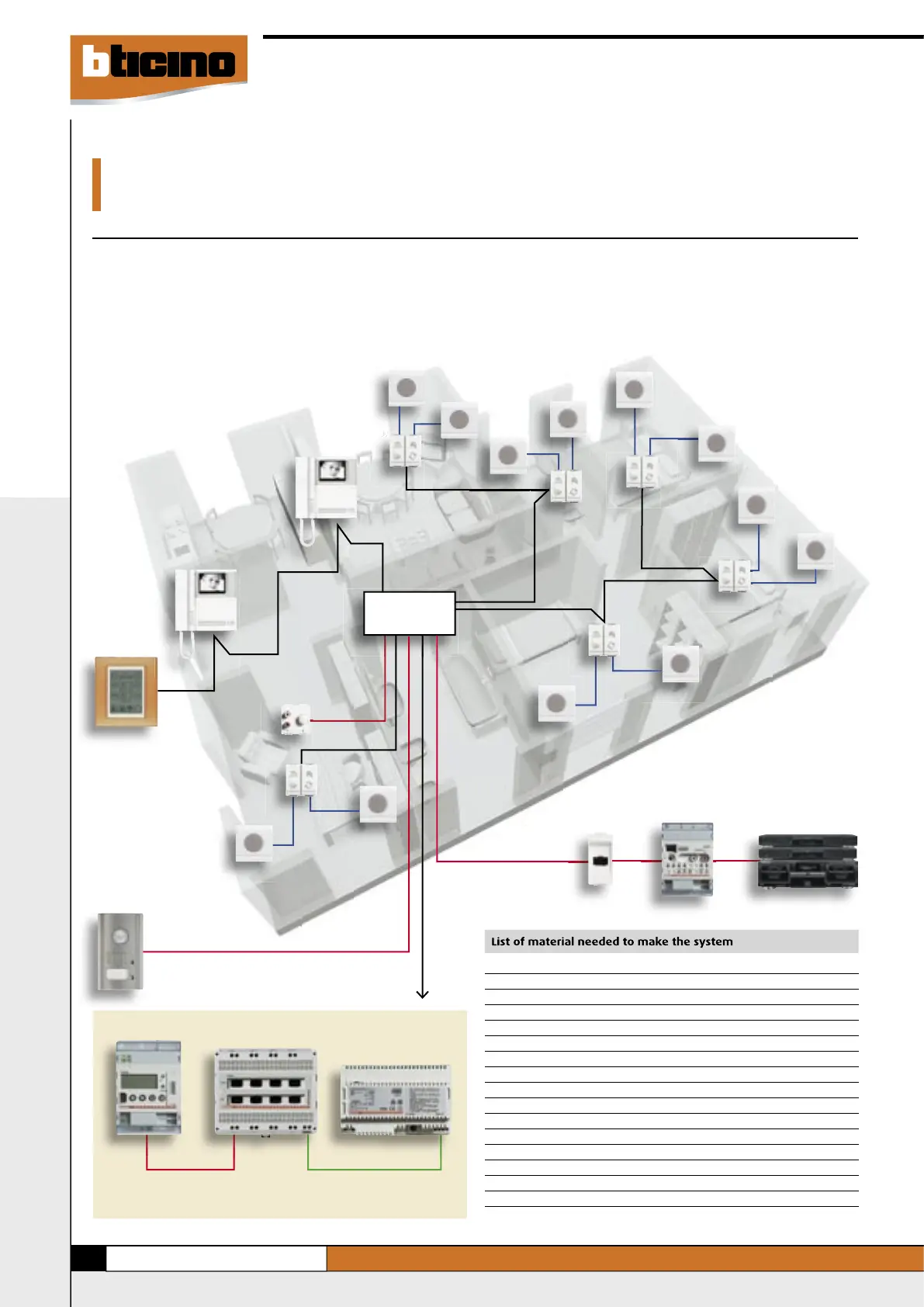

Large house with 2 wire video door entry system
The two wire sound system can be combined with the two wire video door
entry system. A TOUCH SCREEN and fl ush-mounted amplifi ers, 1 entrance
panel and 2 PIVOT handsets are installed in the system. When the entrance
panel is activated, the sound system reduces the volume of the stereo
sources so that the sound of the bell can be heard.
The audio will return to its original volume when the internal unit handset is
replaced. Using the 4-button block installed in the video door entry units the
loudspeakers in the home can be used to page people.
List of material needed to make the system
Item Description Quantity Reference
346000 Power supply 1 A
F441 Audio/video node 1 B
L/N/NT4560 RCA input 1 H
L4561 Stereo control 1 C
F500 Radio tuner 1 G
L4562 Flush-mounted amplifi er 6 D
L/N/NT4565 Flush-mounted loudspeakers 12 E
L/N/NT4683 TOUCH SCREEN 1 I
344102 VideoPIVOT hanDSET 2 L
34681…(2/3/4)
4-pushbutton block 2
342510 Entrance panel camera 1
342170 One-family speaker unit 1
3499 Line terminator 4
33698...(2/3/4)
8-contact connector 4 F
336904 Twisted cable with 2 conductors 1
NOTE: the above system can also be achieved with AXOLUTE Items
