The radio tuner can receive FM radio emissions. The front pushbuttons and
the backlit display adjust the device locally, save 5 radio stations and display
RDS messages and the tuned frequency.
The device can perform two types of search: manual or automatic.
The device can be managed (switch on/off, change frequency etc.) by flush-
mounted amplifiers L4562 or by using correctly configured control devices
Item L4651/2 and/or TOUCH SCREEN Item L/N/NT4683 and Item H4684.
The tuner must be installed in a zone with sufficient signal to receive the
radio emitters.
Supply voltage from BUS: 18 to 27 Vd.c.
Extra supply voltage: 18 to 30 Vd.c.
Size: 4 DIN modules
Range: 87.5MHz to 108MHz
Dissipated power: 1W
Absorption:
• In stand-by: 12mA
• When working: 50mA (with extra 3mA power supply)
Operating temperature: 5°C to 45°C
Technical data

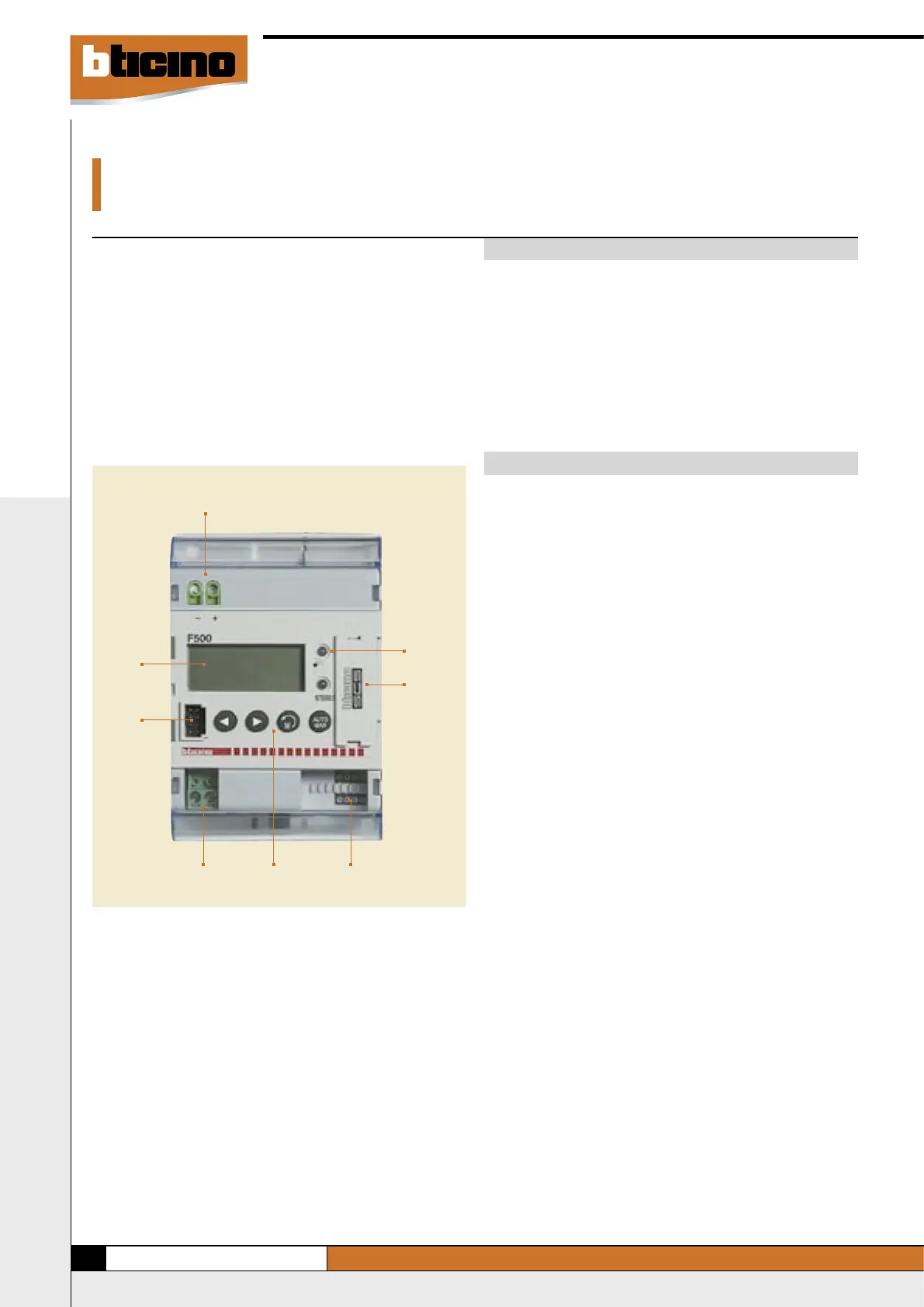

1. pull-out terminal for connection to the BUS
2. radio tuner programming and radio programme scanning buttons
3. configurator housings:
4. housing for future expansions
5. radiophonic signal indication LED
6. terminal for extra power supply
7. terminal for connection to the BUS via patch cord
8. backlit display to show the frequency, RDS messages and saved stations
Legend
6
5
4
21 3
7
8
TECHNICAL FEATURES
FM radio turner Item F500
