2 Description

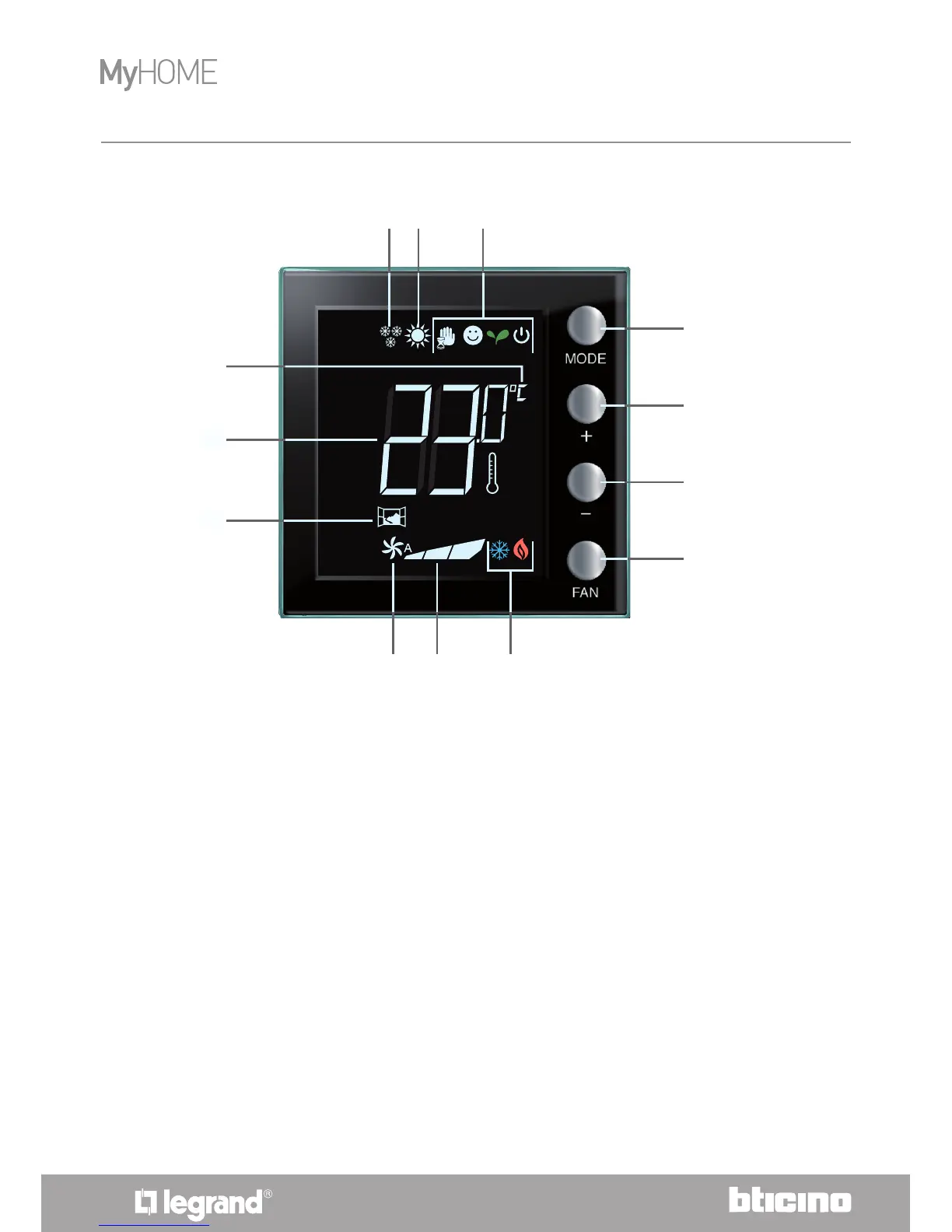

2.1 Meaning of icons and keys
1 - Heating function.
2 - Cooling function.
3 - Operating mode icons (see table in paragraph 2.2).
4 - MODE key: a short pressure changes the mode of operation of the device; an extended pres-
sure (unless used as MyHOME probe) changes the function an extended pressure (unless used
as MyHOME probe) changes the heating/cooling function. (This function can be disabled us-
ing the MyHOME_Suite software for the hotel thermostat and residential thermostat modes).
5 - “
+” key: increase the set value.
6 - “
–” key: decrease the set value.
7 - FAN key: set the fan coil speed on 3 levels + automatic. (This function can be disabled using
the MyHOME_Suite software).
8 - Heating/cooling on indicator (see table in paragraph 2.2).
9 - Fan coil speed indicator, 3 levels.
10 - Fan coil in automatic mode indicator.
11 - Window indicator: active local contact according to the programming completed by the installer.
12 - Measured (thermometer symbol on) / set (thermometer symbol off) temperature indicator.
13 - Unit of measure: °C or °F measurement unit can be modified from the user menu.
7
4
5
6
3
910
12
13
1 2
8
11
