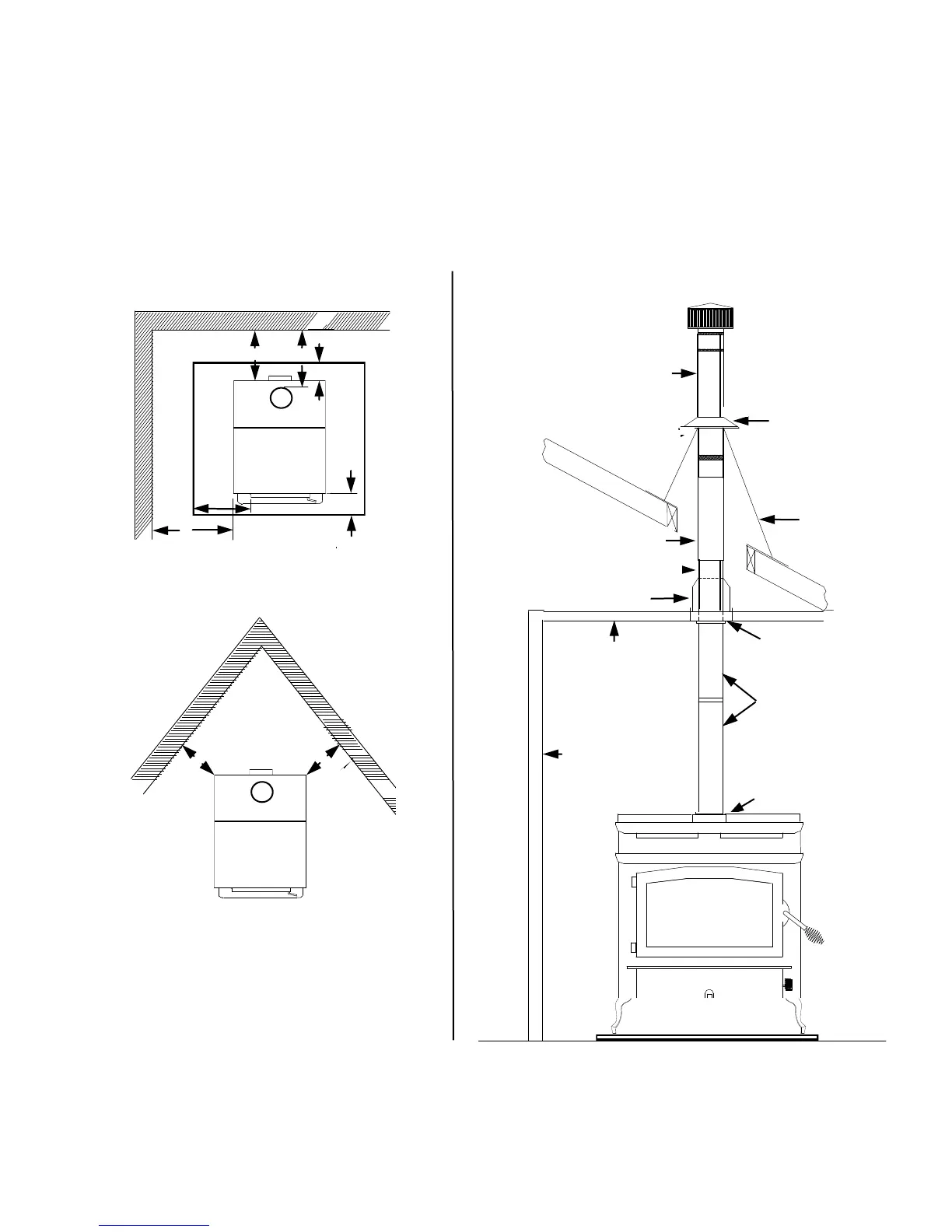

A. Vertical exit using (6" Single Wall pipe minimum 24 ga. blued or
black pipe and any listed 2100° UL 103 HT. TYPE Chimney).
With standard close clearance shield and pipe shield.
Model 261 minimum clearance to combustibles.
NOTE: All clearances are to combustibles with low clearance shields, and using single wall pipe
and minimum floor protector. The clearances above may be reduced. Follow NFPA-211 codes if
available or follow instructions on (Pages 10 ,and 11).
NOTE: Model 261 comes standard with low clearance shields.
BACK WALL
SIDE WALL
A
E
B
F
C
C
D
G
C
C
A B C D E F G
MODEL 261 13” 8" 13" 12" 8" 3" 20"
Figure 3.
BACK WALL
SIDE WALL
A
E
B
F
C
C
D
G
A
E
B
D
F
BACK WALL
SIDE WALL
PROTECTOR
G
Figure 4.
NEW BUCK
CAST COLLAR
Part# MA6CHIMCNB
SINGLE WALL
CONNECTOR PIPE
CEILING SUPPORT
CEILING
INSTALLATION
RADIATION SHIELD
FLASHING
CONTEMPORARY CAP
STORM COLLAR
DO NOT OBSTRUCT
CAULK
NEW BUCK
SIDE
WALL
LISTED 2100° UL 103 HT
TYP. CHIMNEY
LISTED 2100° UL 103 HT TYPE
BUCK STOVE
