BuckMaster 261 - Page 13

Page 11

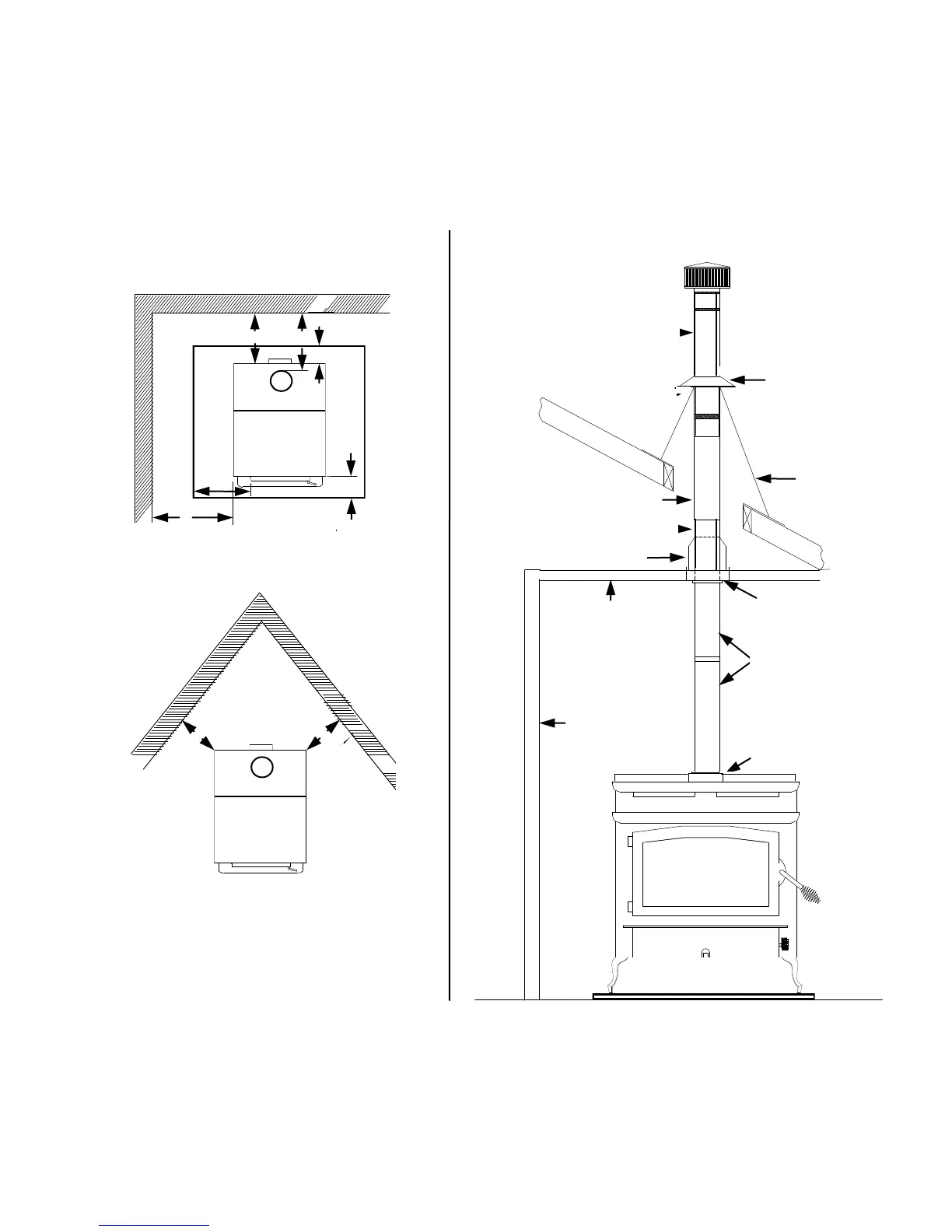

B. Vertical exit using (6" DVL Close Clearance pipe or Shielded Single
wall pipe, and any listed 2100° UL 103 HT. TYPE Chimney).
With standard close clearance shield and pipe shield.
Model 261 minimum clearance to combustibles.
NOTE: All clearances are to combustibles with all low clearance shields and double wall pipe
or shielded single wall pipe and minimum floor protector.
NOTE: Model 261 comes standard with low clearance shields.
NEW BUCK
CAST COLLAR
Part# MA6CHIMCNB
CEILING SUPPORT BOX
CEILING
INSTALLATION
RADIATION SHIELD
FLASHING
CONTEMPORARY CAP
STORM COLLAR
DO NOT OBSTRUCT
CAULK
NEW BUCK
SIDE
WALL
LISTED 2100° UL 103 HT TYP.
LISTED 2100° UL 103 HT TYPE
Figure 5.
Figure 6.
BUCK STOVE
DVL CLOSE CLEAR-
ANCE PIPE OR
SHIELDED
BACK WALL
SIDE WALL
A
E
B
F
C
C
D
G
C
C
A B C D E F G
MODEL 261 14” 4" 14" 7" 8" 3" 20"
BACK WALL
SIDE WALL
A
E
B
F
C
C
D
G
A
E
B
D
F
BACK WALL
SIDE WALL
PROTECTOR
G
