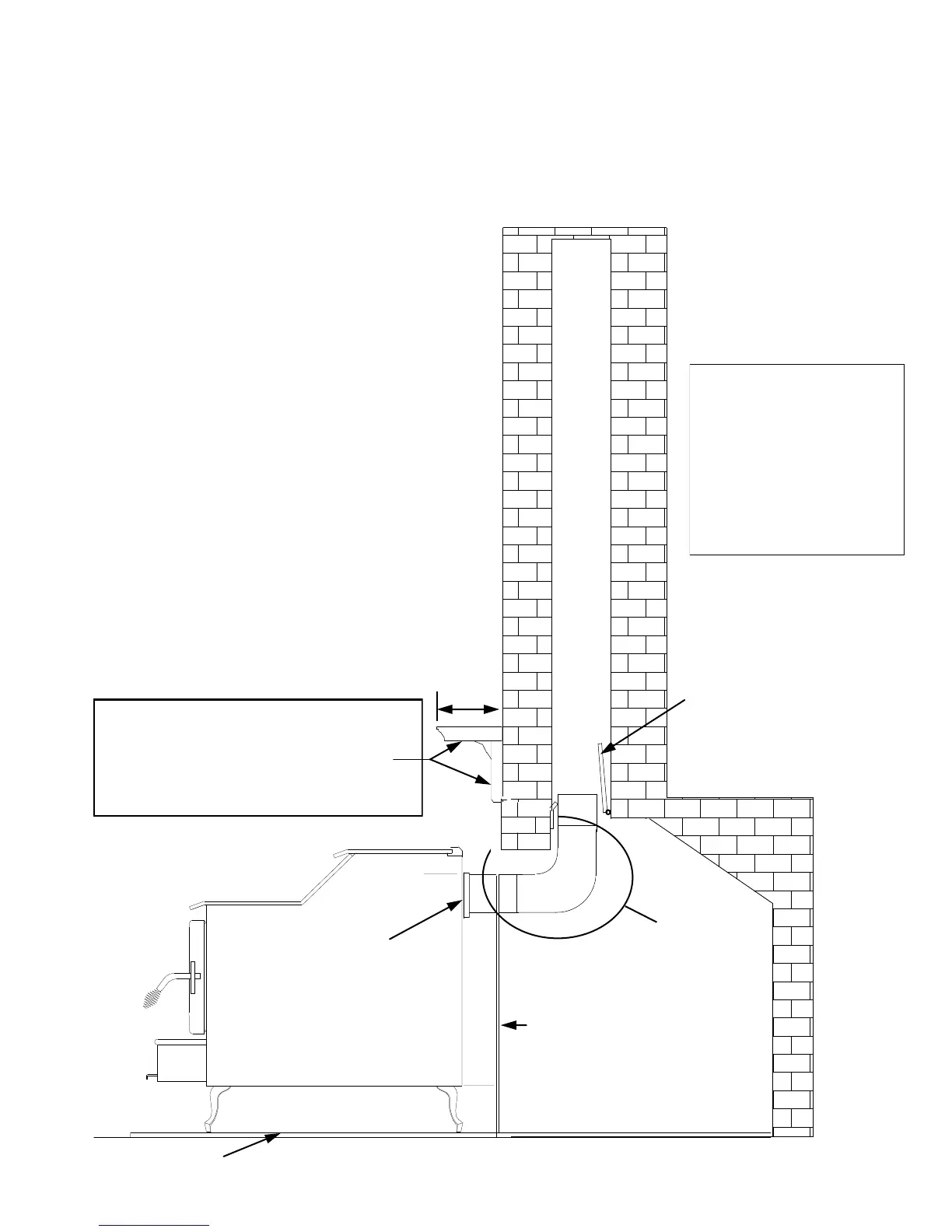

D. Rear exit in to Masonry Fireplace using
(6" single wall pipe, minimum 24 ga. blued or black) .
With standard close clearance shield and pipe shield
SEALING
PLATE
HEARTH
SINGLE
WALL
PIPE
WITH 2" LEGS, THE
TOP OF THE REAR
EXIT ON THE STOVE IS
BELOW 24" FROM
FLOOR OR HEARTH
ENABLING TO INSERT
PIPE INTO MOST
MASONRY FIREPLACE
NOTE: Optional 2” legs Part # FA FS261 Are
available when installing Model 261 into a
masonry fireplace with existing height of only 24”.
NOTE: For minimum clearances (Page 29 Figure 23. also Figure 24).
Remove or wire open the
fire place dampper.
NEW BUCK CORP.
CAST COLLAR
Part# MA6CHIMCNB
Figure 24.
( NOTE: )
MINIMUM CLEARANCES FROM
TOP OF UNIT TO MANTEL OR
MANTEL SUPPORTS
14 1/2" MINIMUM
8"
