Page 33
ALCOVE INSTALLATION
AND CLEARANCES

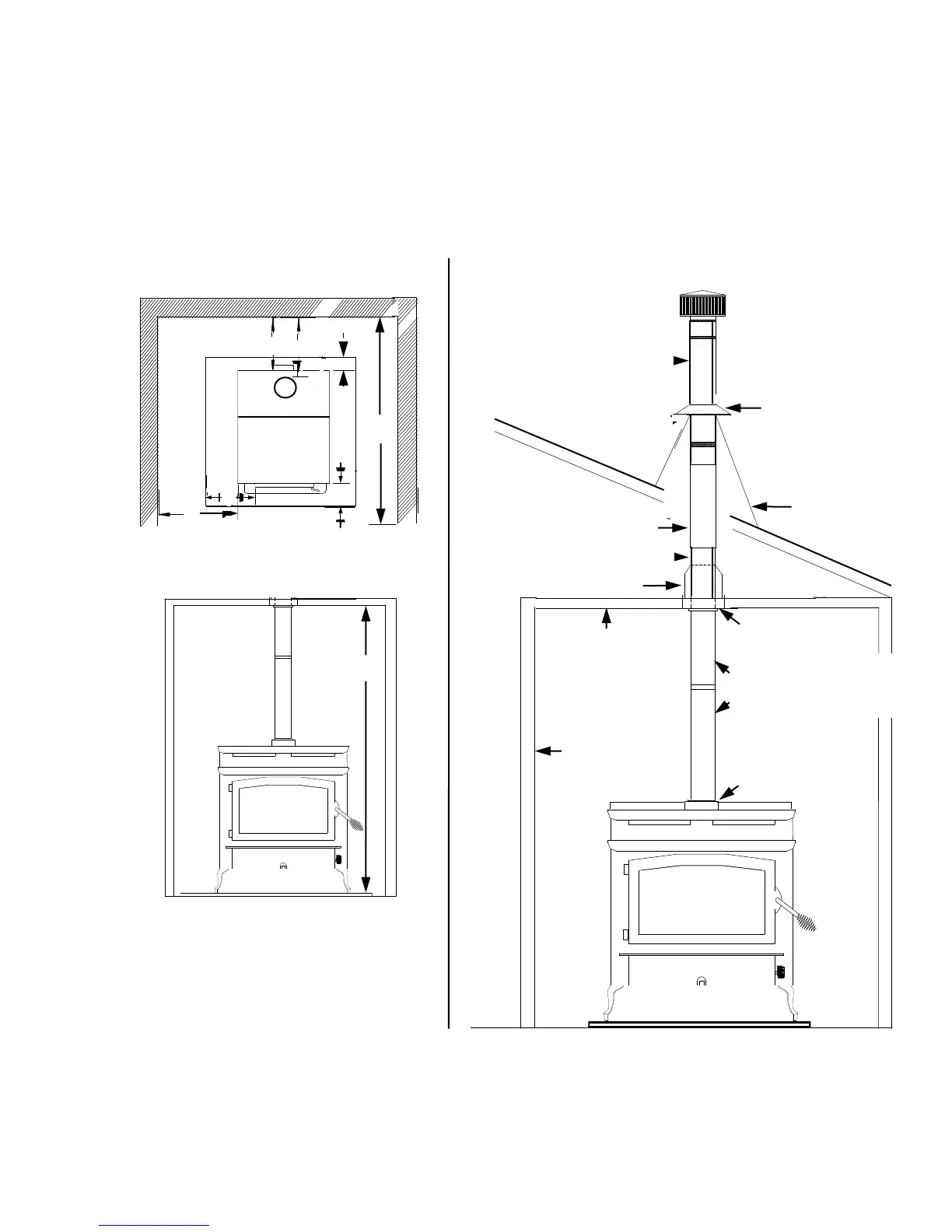

A-1. Alcove Vertical exit using (6" DVL Close Clearance pipe, and any
listed 2100° UL 103 HT. TYPE Chimney).
With standard close clearance shield and pipe shield.
Model 261 minimum clearance to combustibles.
Figure 27
NOTE: All clearances are to combustibles with all low clearance shields and double wall pipe ,
and minimum floor protector.
NOTE: Model 261 comes standard with low clearance shields.
A B C D E F G H
MODEL 261 14” 4" 7" 20" 8" 3" 47" 84"
H
BUCK STOVE
Figure 28
CEILING
SUPPORT BOX
CEILING
INSTALLATION SHIELD
RADIATION
FLASHING
CONTEMPORARY CAP
STORM COL-
DO NOT OBSTRUCT
CAULK
NEW BUCK
SIDE
WALL
LISTED 2100° UL 103 HT TYPE
LISTED 2100° UL 103 HT TYPE
BUCK STOVE
BACK WALL
SIDE WALL
A
E
B
F
C
C
D
G
D
D
B
C
G
A
SIDE WALL
BACK WALL
E
NEW BUCK CORP.
CAST COLLAR
Part# MA6CHIMCNB
DVL CLOSE CLEARANCE
PIPE OR SHIELDED
SINGLE WALL PIPE
D
F
PROTECTOR
