Page 42
NOTE: All clearances are to combustibles with all low clearance shields and double wall pipe
or shielded single wall pipeand minimum floor protector.
NOTE: Model 261 comes standard with low clearance shields.
A B C D E F G
MODEL 261 14” 4" 14" 7" 8" 3" 20"
Vertical exit using (6" DVL Close Clearance pipe, and any
listed 2100° UL 103 HT. TYPE Chimney).
With standard close clearance shield and pipe shield.

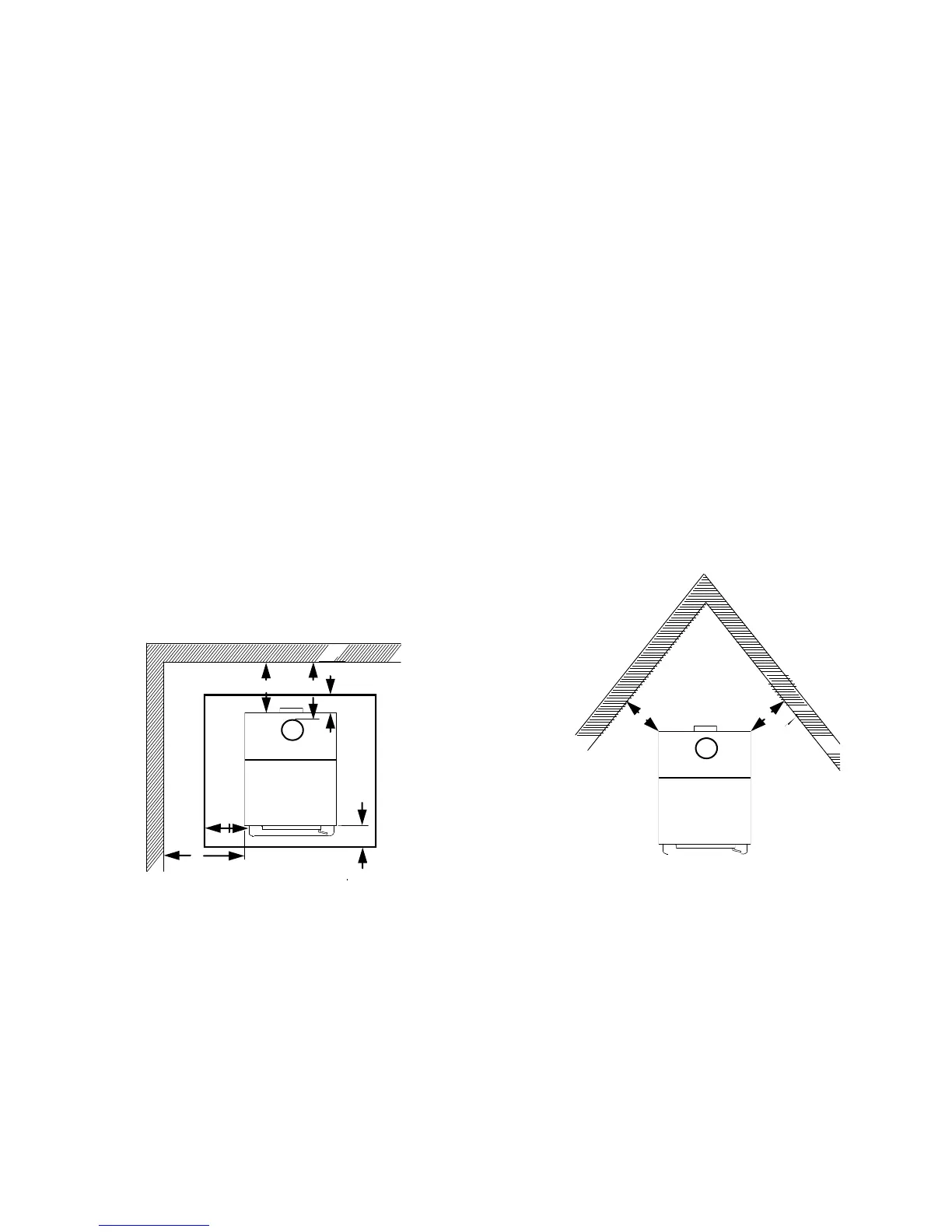

Model 261 minimum clearance to combustibles.
FREESTANDING MOBILE HOME INSTALLATION
Figure 35.
BACK WALL
SIDE WALL
A
E
B
F
C
C
D
G
C
C
BACK WALL
SIDE WALL
A
E
B
F
C
C
D
G
A
E
B
D
F
BACK WALL
SIDE WALL
PROTECTOR
G
9. Now, reposition the heater on the pad being sure to line the feet up with the reference
marks.
10. Slide the outside air duct up to the bottom of the heater and attach it with the screws
supplied with the kit, using a wrench or ratchet. (See Page 43 Figure 38)
. Note: If the mobile home is underpinned you must provide extra pipe (NOT INCLUDED
IN PACKAGE) too extend out side air ducting through underpinning or foundation of
mobile home. The inlet of the outside air duct must be in the same atmospheric as pressure
the exhaust . (See Page 43 Figure 38).
