Buderus Ecomatic HS 2102 - Sensor Resistance Curves

Sensor Curves 12
27
41
50 59
68
77
86
Room Temperature (°F)
Room Temperature Sensor (BF)
Switch the power off before taking any measurements. Remove sensors from the back of the Ecomatic and measure
the resistance of the cable ends. The curves show mean values and are subject to deviations.
26
Outdoor Temperature (˚F)

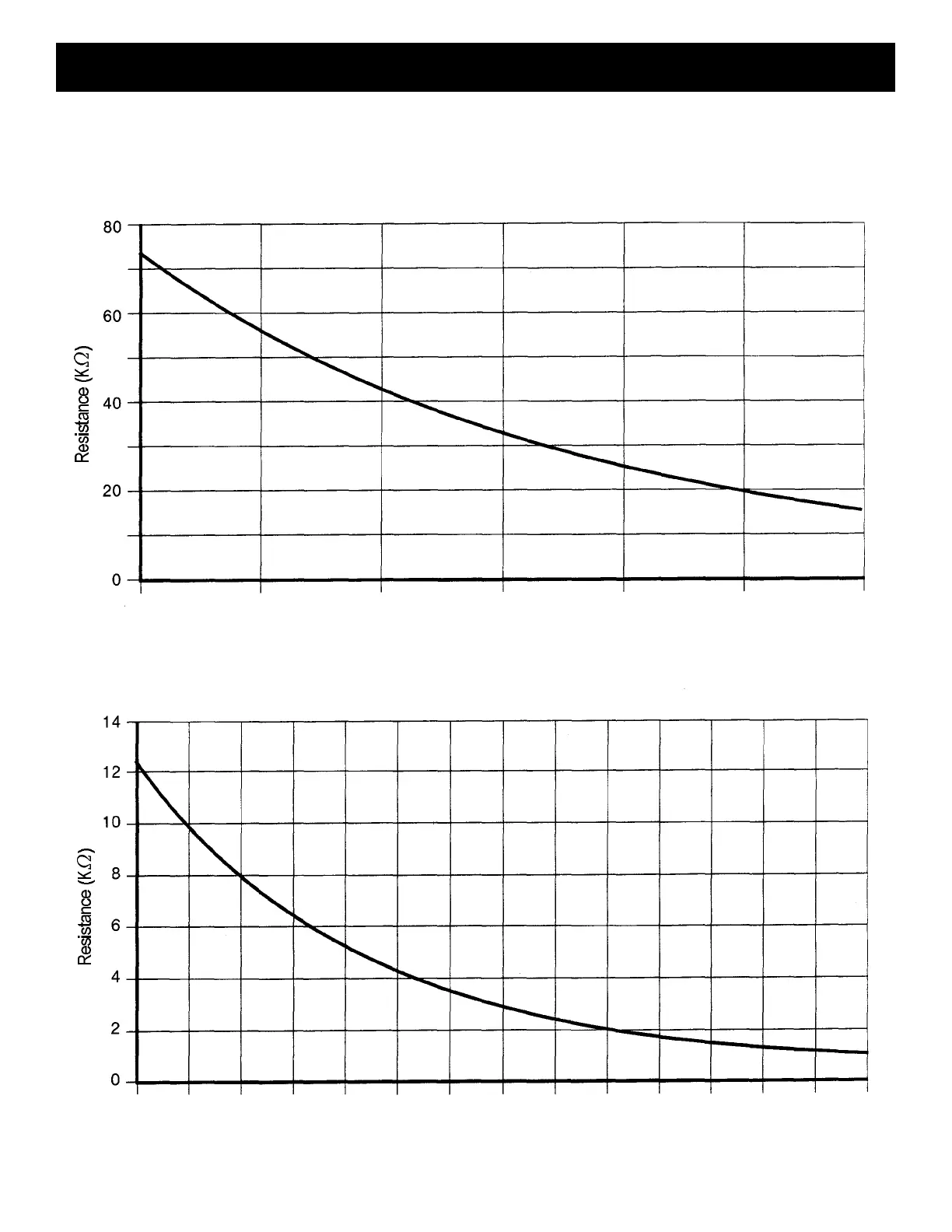

Boiler, domestic hot water temperature sensors (FK, FB)
Outdoor temperature sensor (FA)
Boiler Water Temperature (˚F)
5
14
23
32
41
50
59
68
86
104 122 140
158
176
194
12 Sensor Curves (General)
