IGNITION/HEADLIGHT KEY SWITCH 7.3
GENERAL
1WARNING1WARNING
DO NOT modify the ignition/headlight switch wiring to
circumvent the automatic-on headlight feature. Visibility
is a major concern for motorcyclists. Failure to have
proper headlight operation could result in death or seri-
ous injury.
Switch positions are explained in Ta ble 7-8.
NOTE
The key locks the ignition system and is removable in both
the LOCK and P positions. The P position is located counter-
clockwise from the LOCK position and allows the rider to
remove the key while leaving the lights on. When the key is
placed in the P position, several indicator markers are or can
be activated. Refer to Table 7-9.

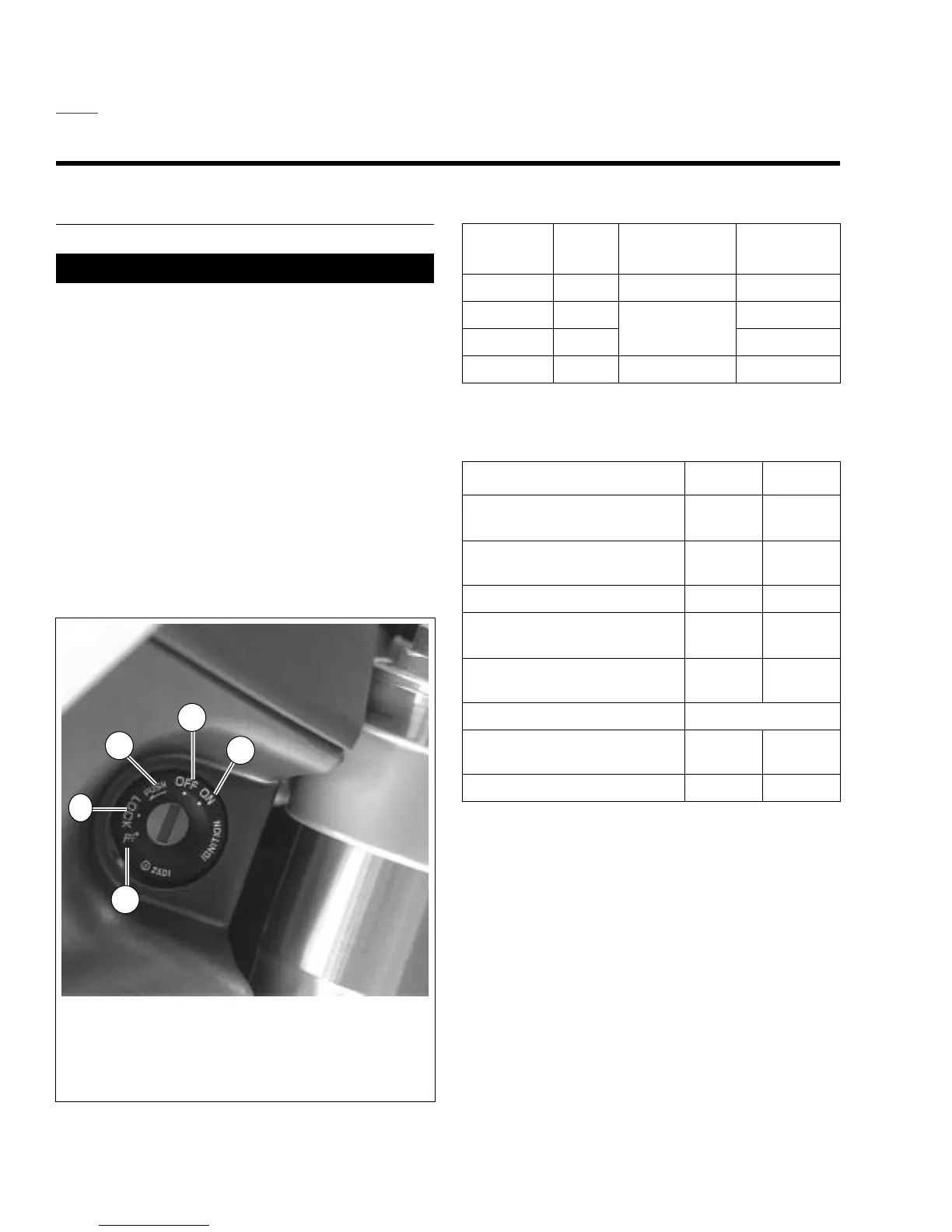

Figure 7-2. Ignition/Headlight Key Switch
1. ON position
2. OFF position
3. PUSH DETENT
4. LOCK position
5. PARKING LIGHT position
1
3
4
5
2
12127
Table 7-8. Ignition Key Switch Positions
LABEL IGN. LAMPS
REMOVE
KEY
OFF off off yes
P off See note &
Table 7-9.
yes
ON on no
LOCK off off yes
Table 7-9. Indicator Markers
ITEM P ON
Headlight position marker
(European models only)
on on
Headlight high beam
off
can be
activated
Headlight low beam off on
Instrument module illumination
lamps
off on
Stop lamp
off
can be
activated
Front and rear turn signals can be activated
Horn
cannot be
activated
can be
activated
AUX power outlets
on
on
