8

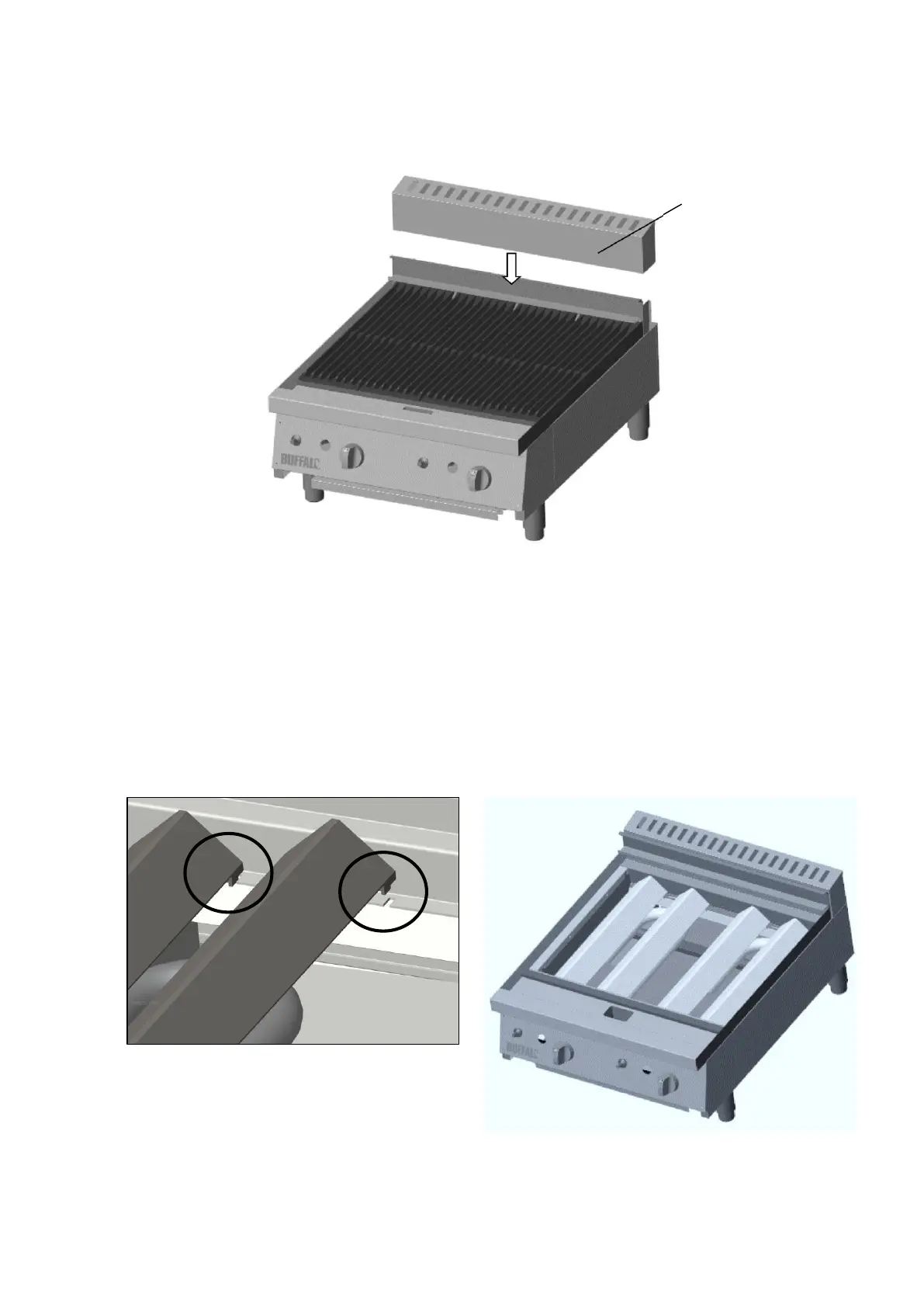

E. Install the Flue
1. Remove the Flue from the packaging, then remove all protective film from the flue.
2. Install the flue at the back of the unit by pushing it down.
F. Install the cast radiants (for units with cast radiants)
1. Remove the cast radiants from the packaging.
2. Install the cast radiants. Place each cast radiant over the “U” shaped burner tubes (peak-side
up). See image below. Ensure that the corner edges are inserted on the position slots on the
front and back radiant support flange.
