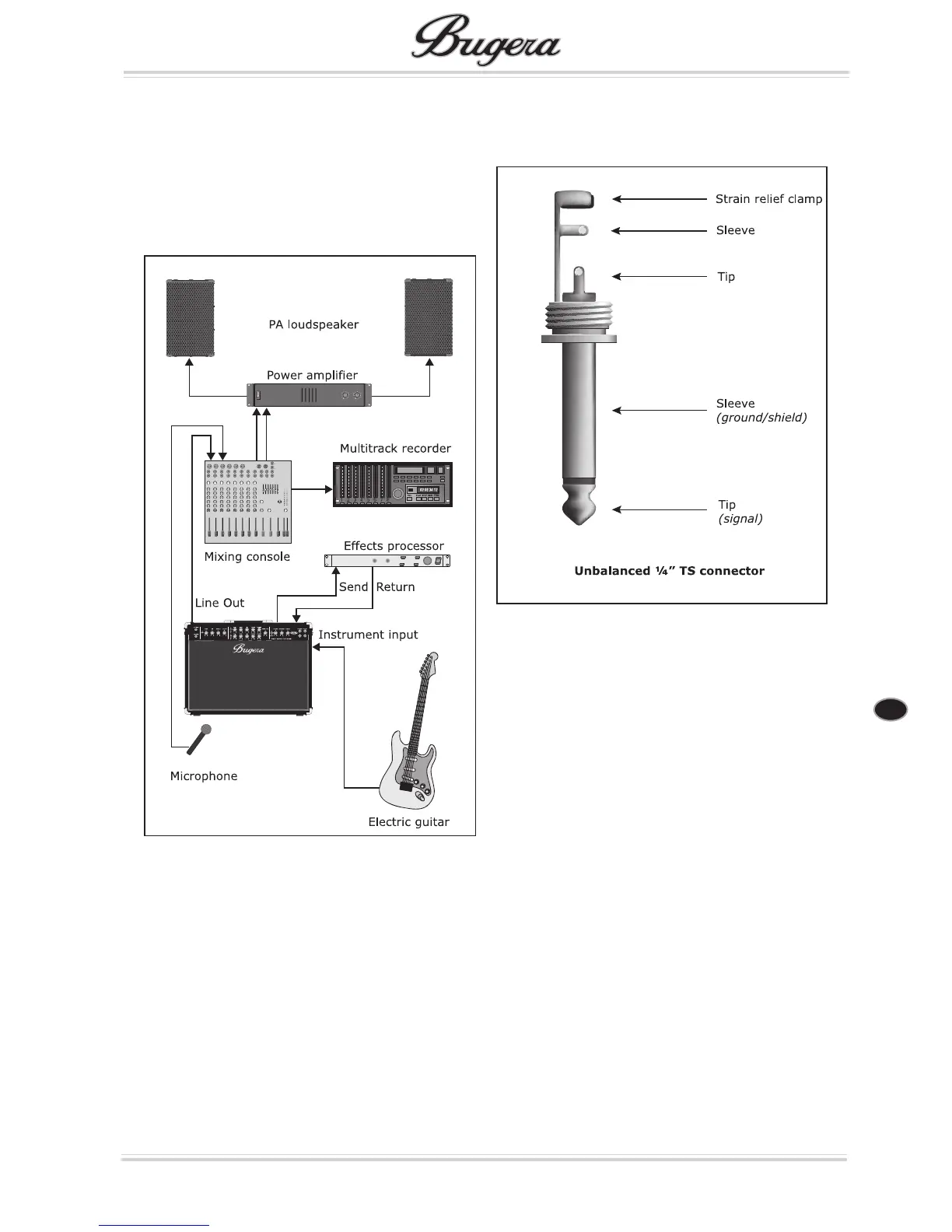

The following figure shows a setup of the 333XL-212
together with an external effects unit connected over the
FX LOOP. And the LINE OUT is connected to the line input
of a mixer in order to send the signal to a recording device.
The LEVEL control of the LINE OUT lets you adjust the
output level of the BUGERA to the input sensitivity of the
mixer. In addition, the speaker signal of the BUGERA is
picked up by a microphone and is fed to the microphone
input of the mixer. This way you get a second guitar signal
which then can be amplified by a PA system and/or can
be recorded as well.
Live setup with a BUGERA combo
Audio connections
Audio connections
The inputs and outputs of the BUGERA amplifier use mono
jack connectors.
¼" mono jack connector
