Bühler technologies Nivotemp NT 61D - Standard Pin Assignment NT 61 D

Nivotemp NT 61D, Nivovent NV 71D

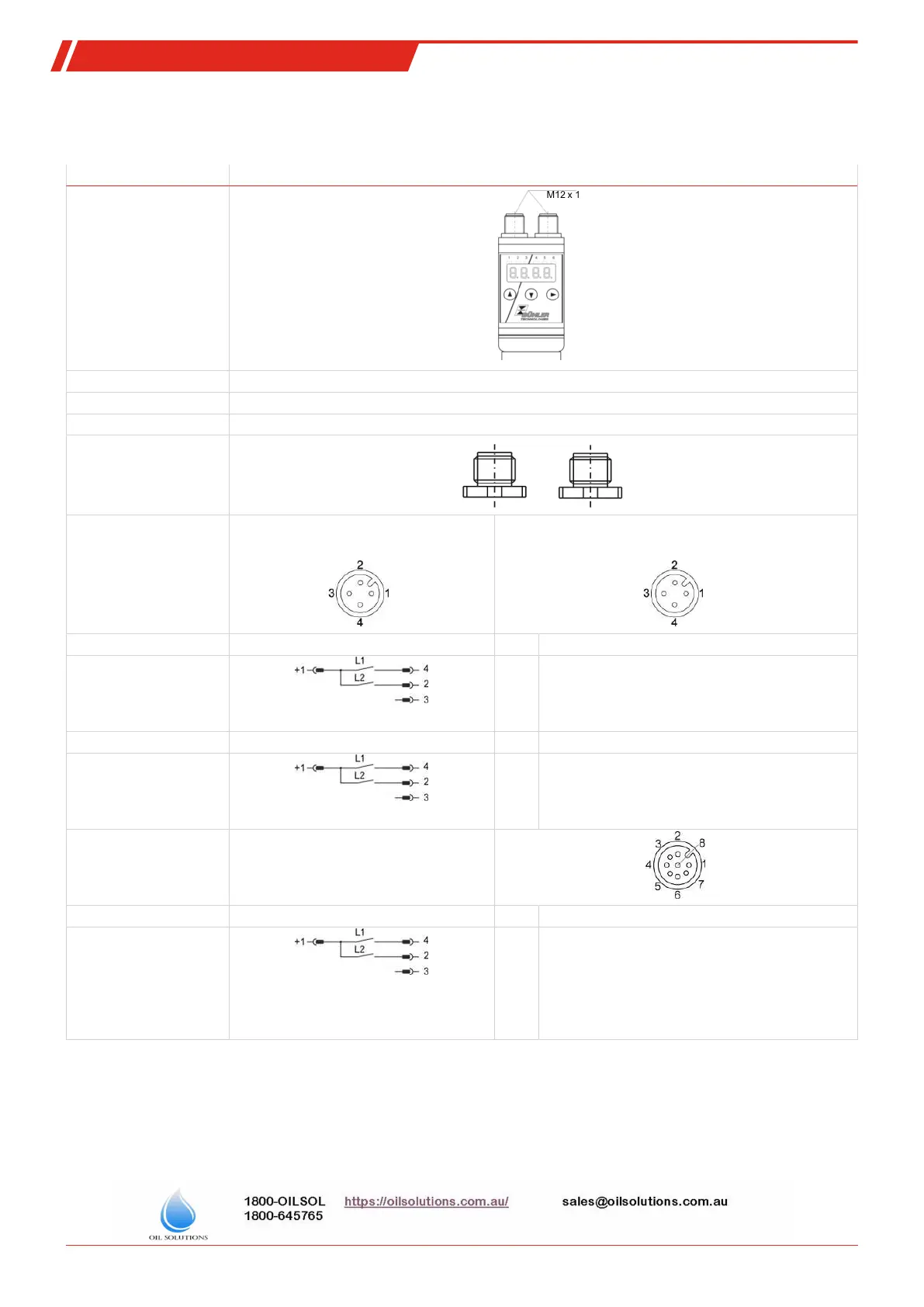

9.4 Standard pin assignment NT 61D
Plug connection
2 x M12 (base)
Dimensions
Number of pins 4-pin / 4-pin
DIN EN 61076-2-101
Voltage max. 30 V DC
Connection schematic Plug A
(level)
Plug B
(temperature)
2T Pin
2 x temperature output 1
2
3
4
+24 V DC
S2 (PNP)
GND
S1 (PNP)
1T-KT Pin
1 x Temperature output
1 x Analogue output
1
2
3
4
+24 V DC
Analogue
GND
S1 (PNP)
Connection schematic
4T Pin
4 x Temperature output 1
2
3
4
5
6
+24 V DC
S2 (PNP)
GND
S1 (PNP)
S3 (PNP)
S4 (PNP)
35Bühler Technologies GmbHBE100017 ◦ 01/2020
