Heavy Duty Finishing Mower
37
BLADE HEIGHT ADJUSTMENT
The mowers must be raised off the ground far enough to pull the wheel yoke (#5) out of
the welded sleeves at the ends of the axles (#1). Be sure the tractor is turned off. Pull
out the clip (#4) and remove the wheel yoke. There are ½” and 1” spacers to adjust the
cutting height. The cutting height is 1 ¾” with no spacers under the sleeve at the end of
the axles. This can be adjusted using the spacers by ½” increments up to 4 ¾”. Check
to see that the spacers are set at the same height on all the wheel yokes.

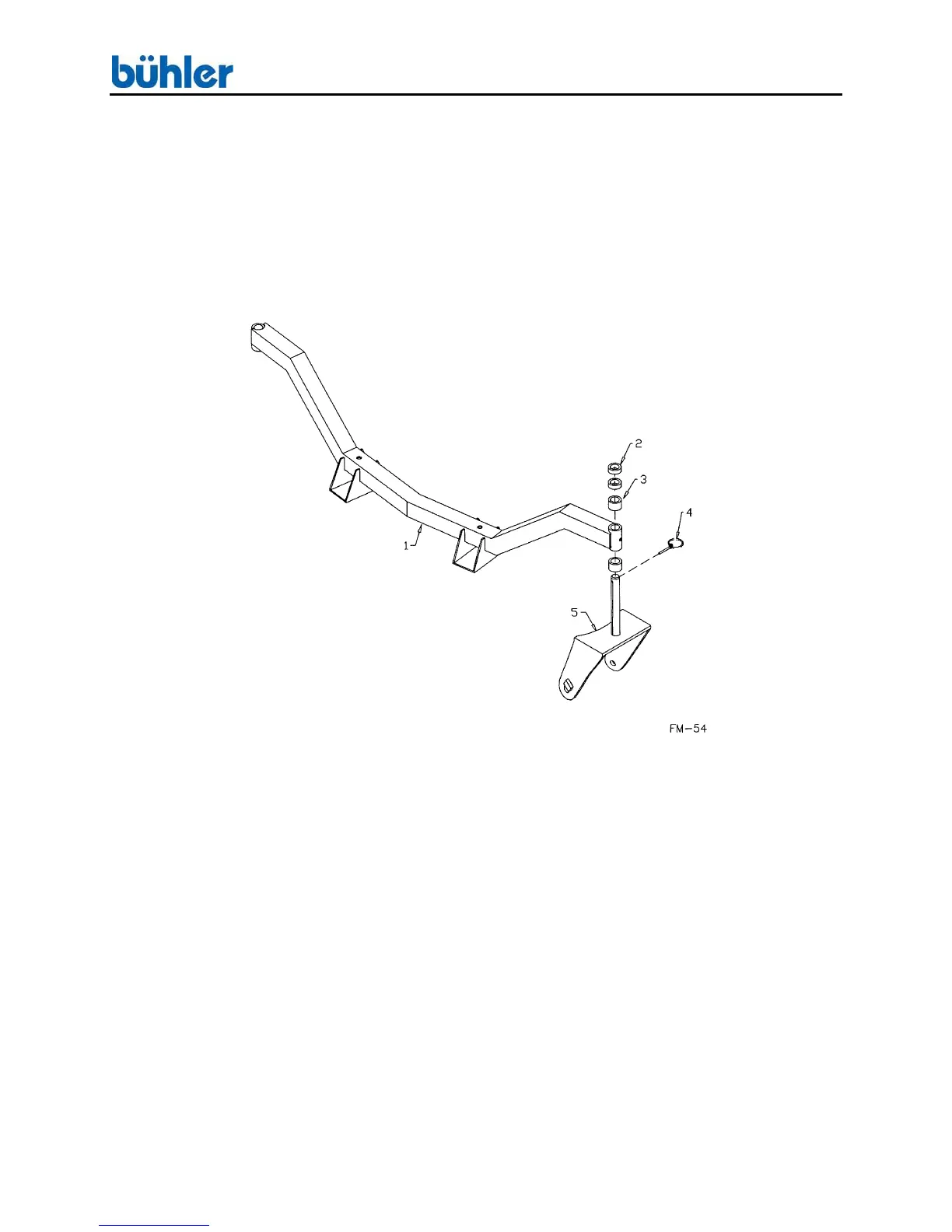

BLADE HEIGHT ADJUSTMENT
ITEM PART# DESCRIPTION
1 908942 67 1/2'' Axle Beam Weldment (5')
908944 69 1/2'' Axle Beam Weldment (6')
908946 71 1/2'' Right Axle Beam Weldment (7')
2 902504 1/2'' Lg x 1 5/8'' OD Bushing (pl)
3 902503 1'' Lg x 1 5/8'' OD Bushing (pl)
4 966729 3/16'' Linch Pin (pl)
5 902422 Wheel Yoke
