Removing the Extended Rear
Convenience Center
1. Make sure that all items have been removed from
the top and the inside of the rear convenience
center.
2. Remove the carpeted mat from the vehicle.
3. Lift the handle(s) on the top of the lid to open the
rear storage bin. The center lid will also need to be
opened.
4. Remove the two nuts from inside the rear storage
bin. The nuts are located in the bottom of the bin.
5. Lift the rear storage bin and remove it from the rear
of the vehicle.
6. Remove the two nuts inside the forward storage
bin. These nuts are located along the bottom of
the center divider wall.
7. Lift the forward storage bin and remove it from the
rear of the vehicle.

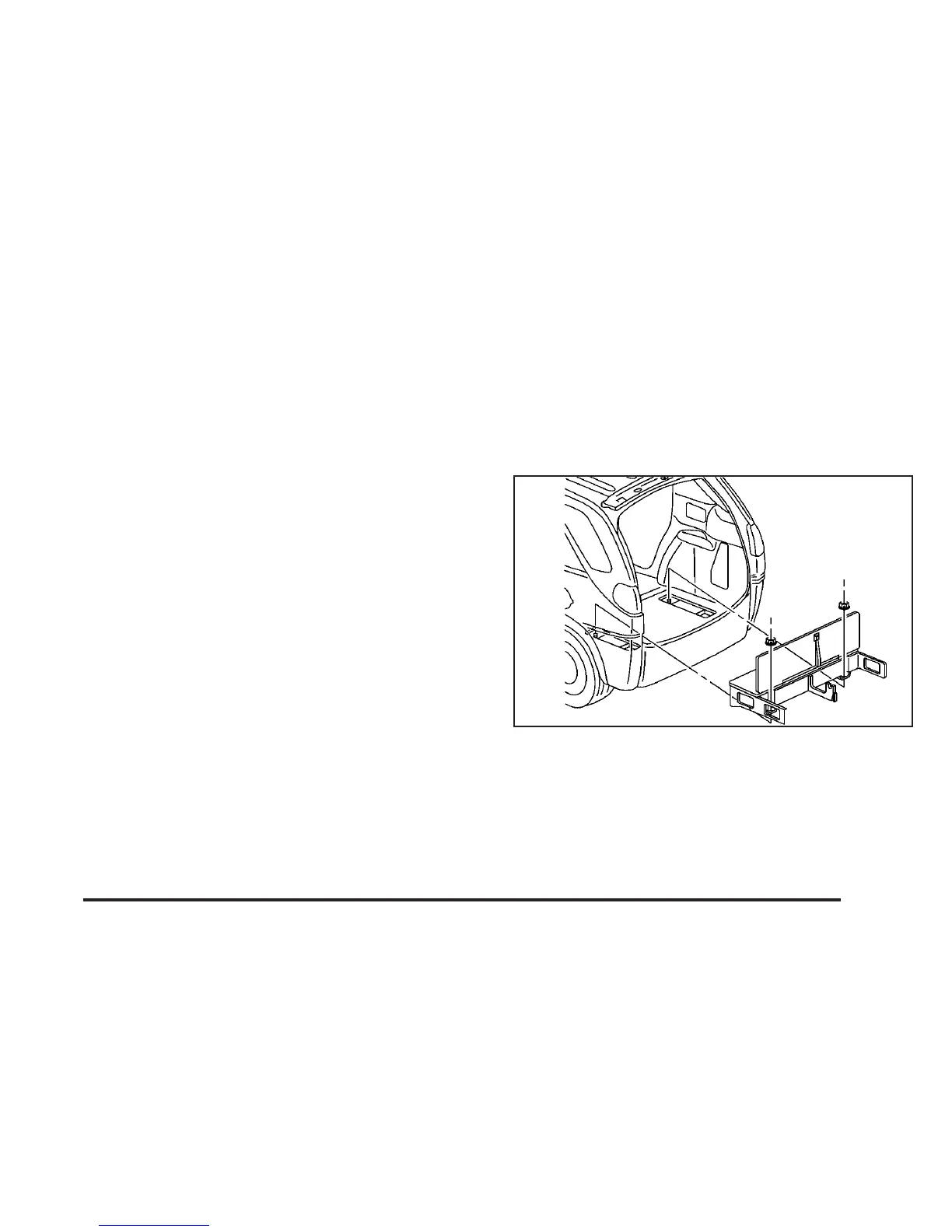

Replacing the Extended Rear
Convenience Center
1. Make sure that all items have been removed from
the rear of the vehicle.
2. Remove the carpeted mat from the vehicle.
3. Lift the forward bin into the back of the vehicle.
Place the mounting brackets onto the forward
mounting bolts on the floor of the vehicle.
4. Put the nuts back onto the mounting bolts and
tighten.
2-45
