The Head-Up Display also displays the following lights
and messages when they appear on the instrument
panel cluster:
• Turn Signal Indicators. See Turn
Signal/Multifunction Lever on page 3-8.
• High-Beam Indicator. See Turn Signal/Multifunction
Lever on page 3-8.
• Low-Fuel Warning Message. See Low Fuel Warning
Message on page 3-56.

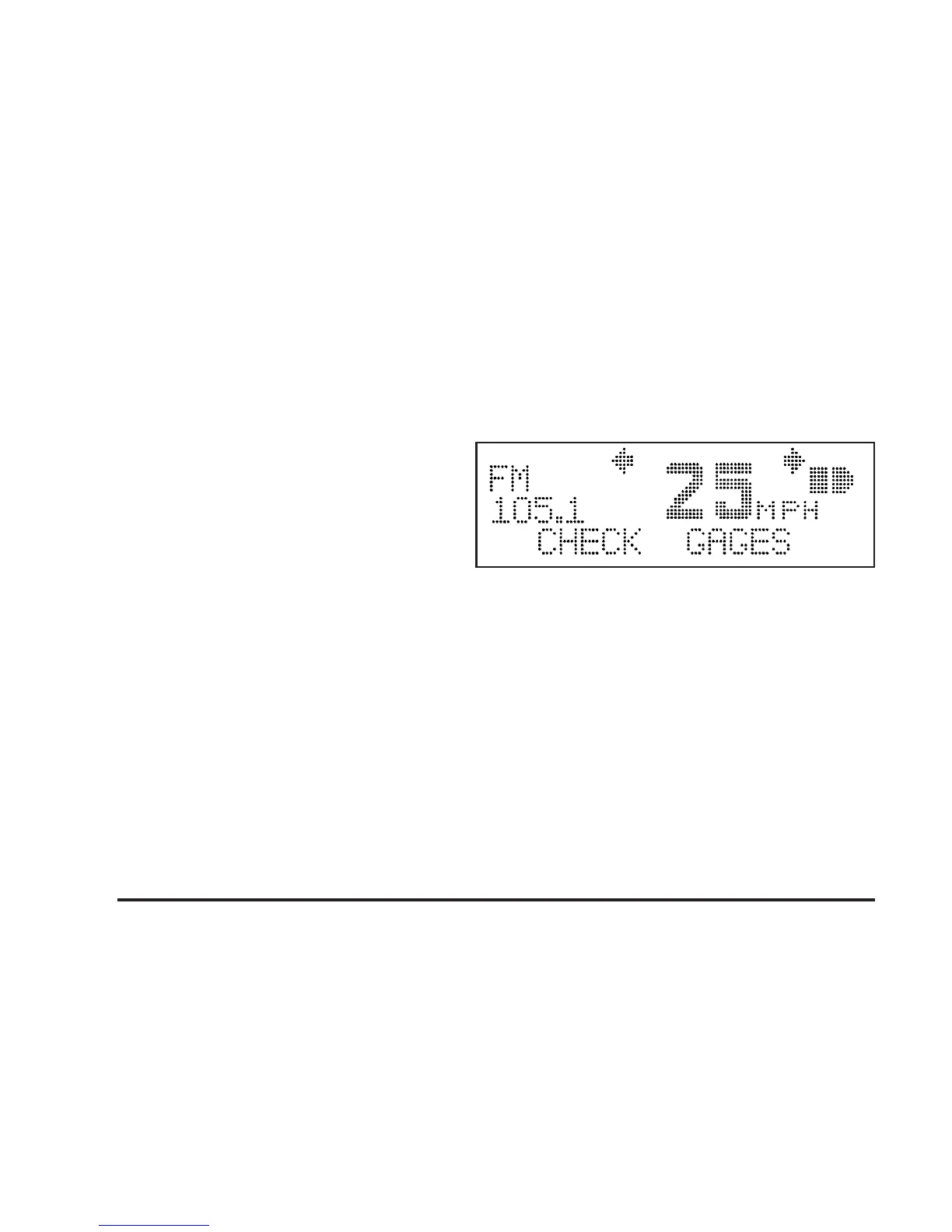

The Head-Up Display also displays a CHECK GAGES
icon. The following messages could appear on the
instrument panel cluster when CHECK GAGES appears:
• Engine Coolant Temperature Warning. See Engine
Coolant Temperature Warning Message on
page 3-51.
• Low Oil Pressure. See Low Oil Pressure Message
on page 3-52.
• Charging System Indicator. See Charging System
Indicator Message on page 3-52.
• Low Brake Fluid Warning. See Low Brake Fluid
Warning Message on page 3-57.
Under warning conditions, the CHECK GAGES icon will
illuminate in the HUD. Look at the instrument panel
cluster for more information.
3-22
