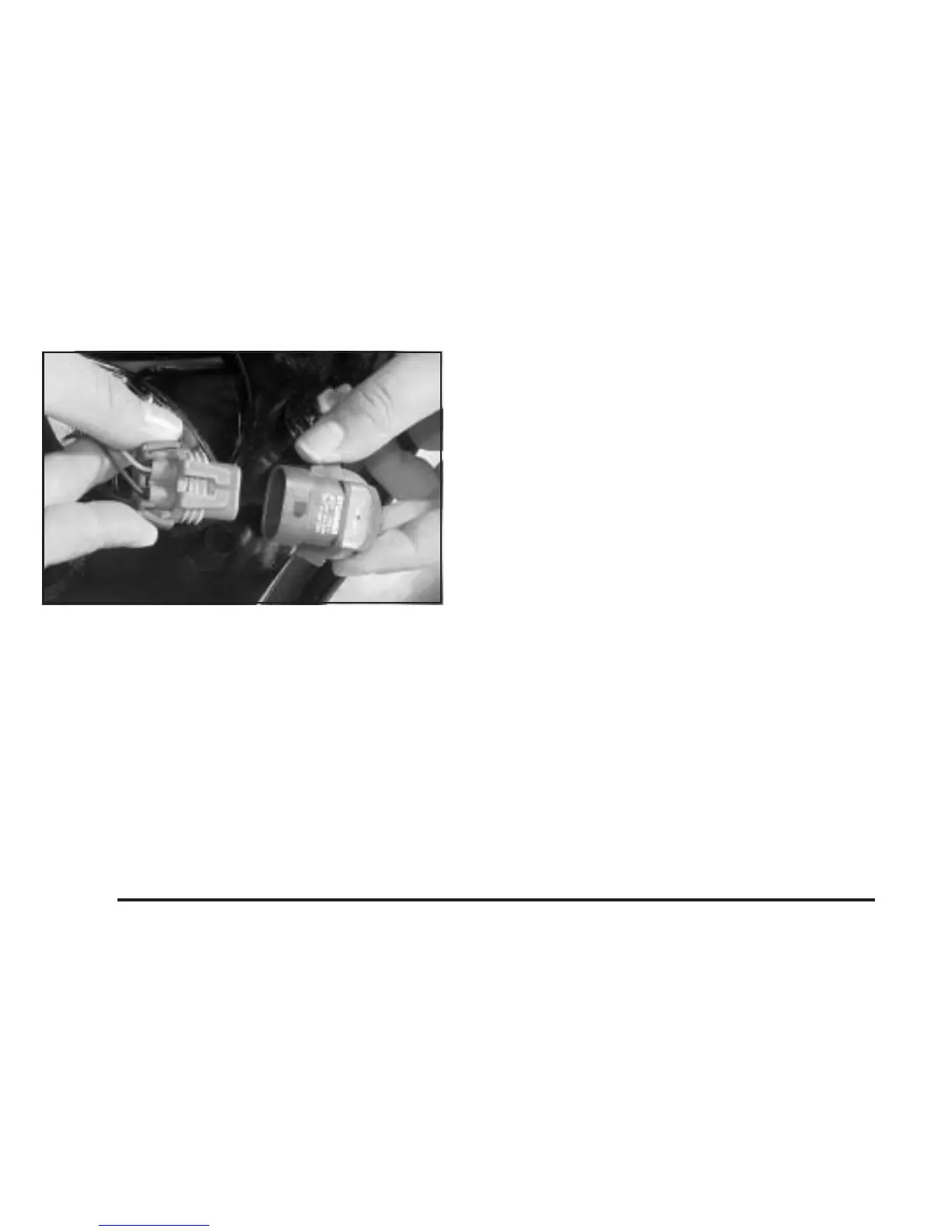

8. Unhook the electrical connector by lifting up the
gray tabs and separate the connector from the
bulb base.
9. Install the appropriate new bulb into the electrical
connector. Push the bulb firmly enough so that the
gray tabs hook over the tab on the bulb.
10. Put the bulb assembly back into the lamp housing
and turn the bulb socket one-quarter of a turn
counterclockwise.
11. Align the retaining clips on the back of the headlamp
with the rectangular holes in the mounting panel.
12. Push firmly on both ends of the headlamp to snap it
into position.
13. Push the retaining clip down to its original position.
14. Reinstall the wing stud.
5-46
