Taillamps, Turn Signal, and
Stoplamps
1. Open the liftgate. See Liftgate on page 2-11 for
more information.

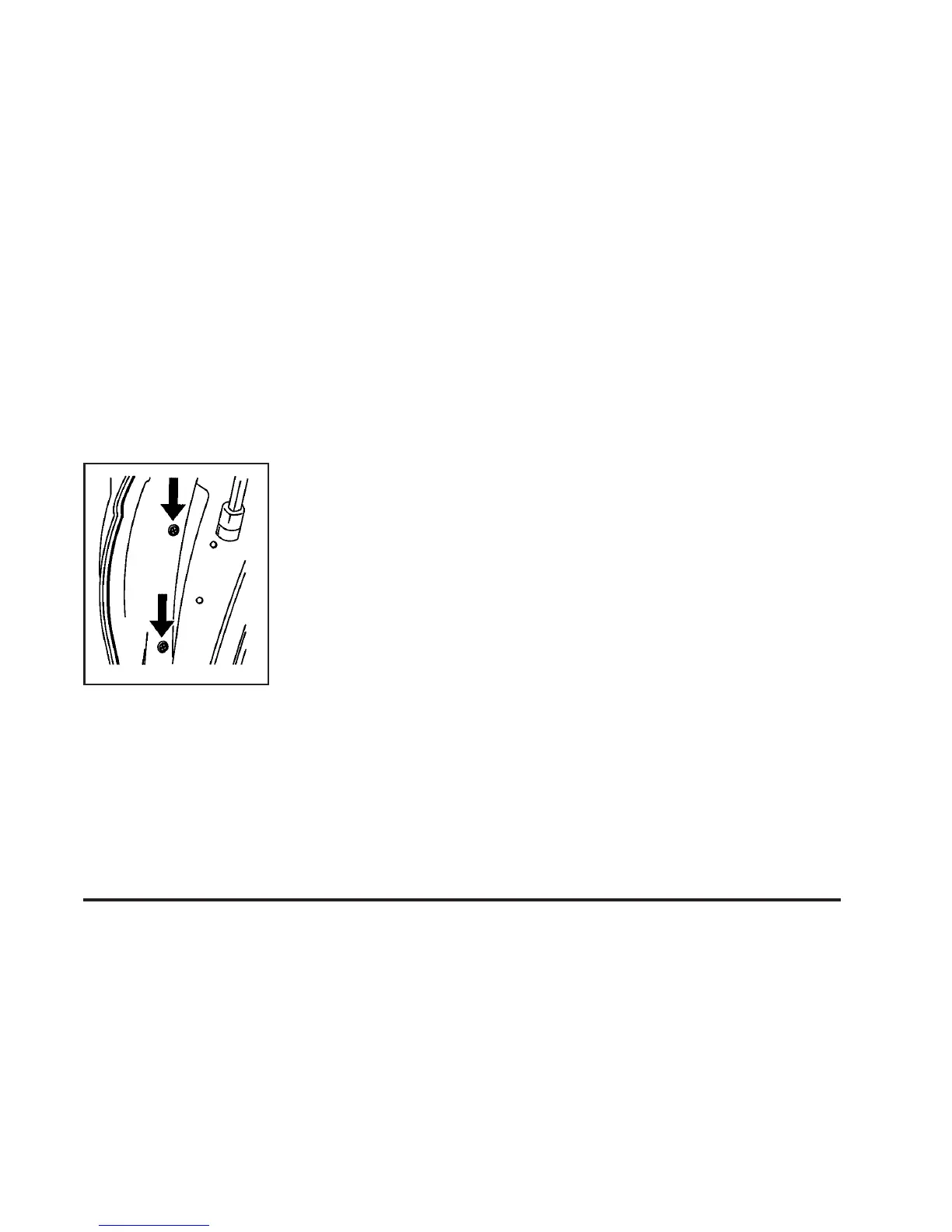

2. Remove the two screws
on the inboard taillamp
panel.
3. Pull the lamp directly rearward from the vehicle.
4. Turn the bulb socket one-quarter of a turn
counterclockwise.
5. Pull the bulb assembly out from the lamp housing.
6. Unhook the electrical connector by lifting up the tabs
and separate the connector from the bulb base.
7. Install the new bulb into the electrical connector.
Push the bulb firmly enough so that the tabs hook
over the tab on the bulb.
8. Reverse the steps to reinstall.
9. Reinstall the lamp to its pocket by lining up the
mounting pin and pushing forward to set the
position.
10. Reinstall the screws removed in Step 2.
11. Close the liftgate.
5-47
