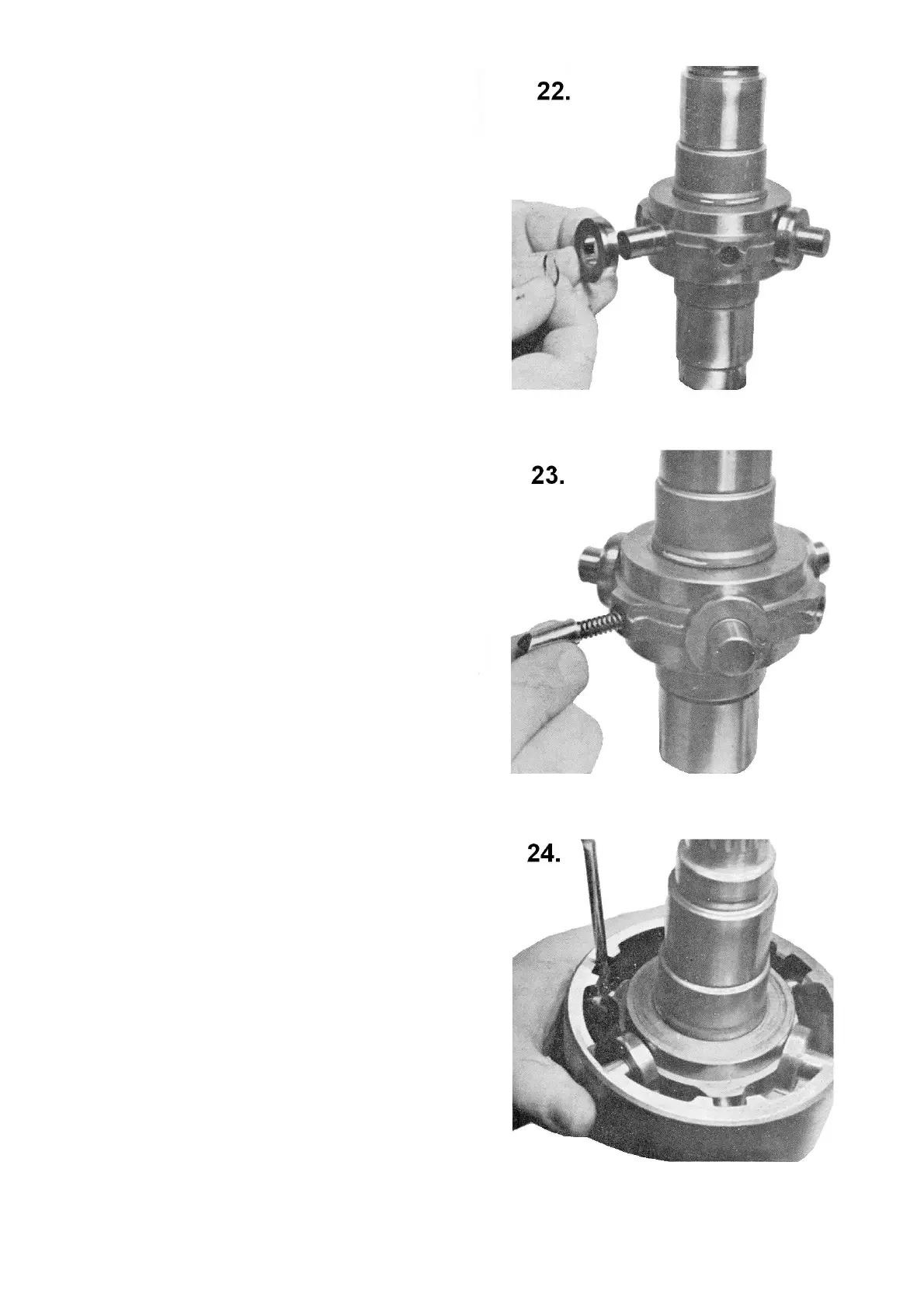

Fit the tension rollers on the shafts for
suspension by rollers.
“Note”: The tension rollers must be placed
so that the big surface lies outwards.
Fit the pressure springs in the check bolts.
Fit the check bolts in the corresponding
bores.
The point of the check bolts should turn so
that it is horizontal.
Press the sliding sleeve from the bottom
against the check bolts.
Press the check bolts back with a screw-
driver and at the same time press the
sliding sleeve upwards.
The bolts should rest in the points of rest of
the sliding sleeve.
