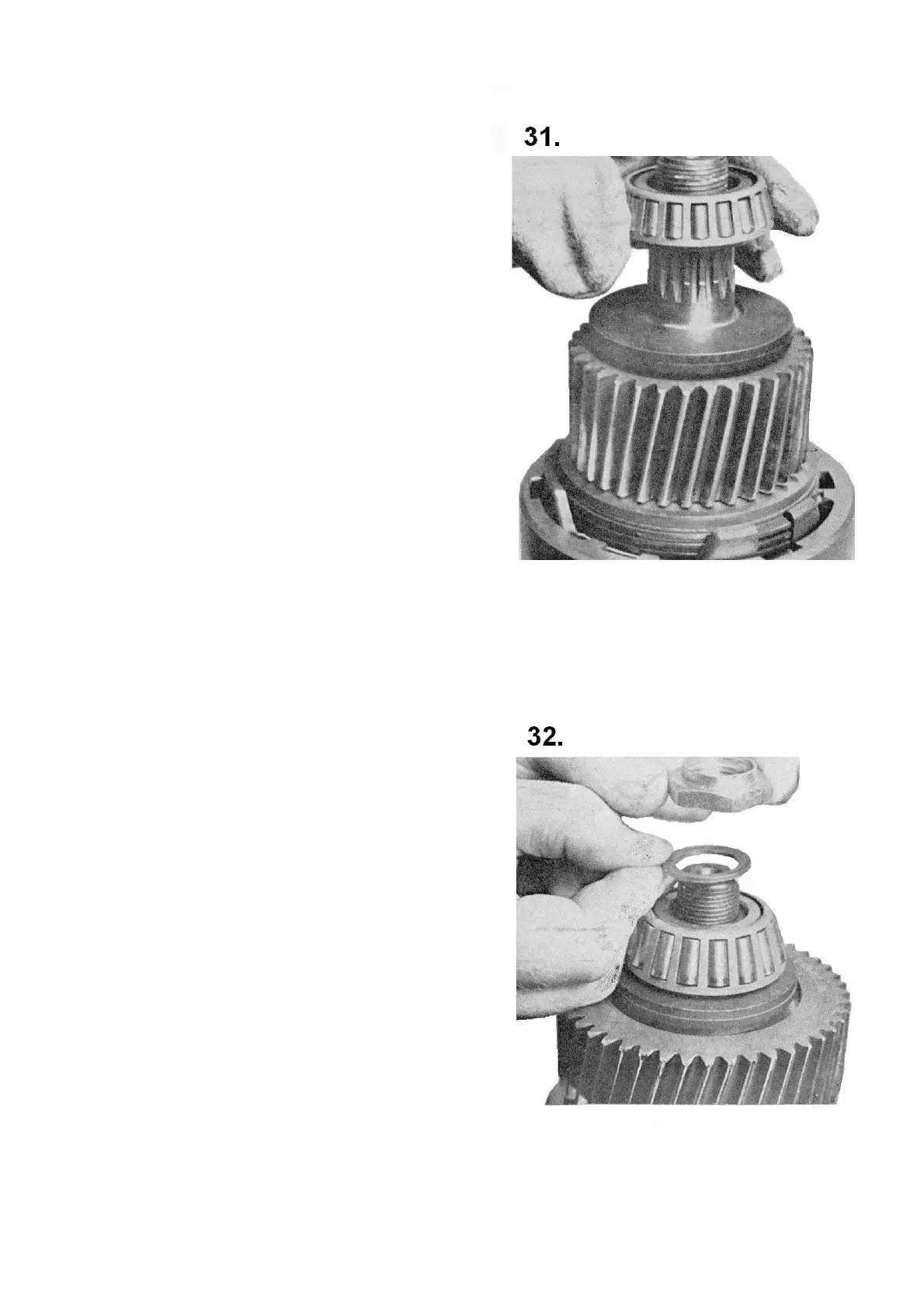

Heat the tapered roller bearing inner collar to
about 85°C and fit it with the thin end of the
taper roller facing the shaft end of the output
shaft until it fits tightly against the disc
springs.
Tighten the tapered roller bearing with bush
No. 1 x 56 136 995 and original hexagon nut
until it fits tightly against the shaft assembly.
See picture No. 33 overleaf too).
“Note”: Fix the tapered roller bearing for
“ASTERN” with supporting washer and
original hexagon nut.
The torque of the nut is 100 Nm (10.0 kpm).
Secure the nut.
