Fitting of Input and Output Shafts with Shifting Fork in Gearbox

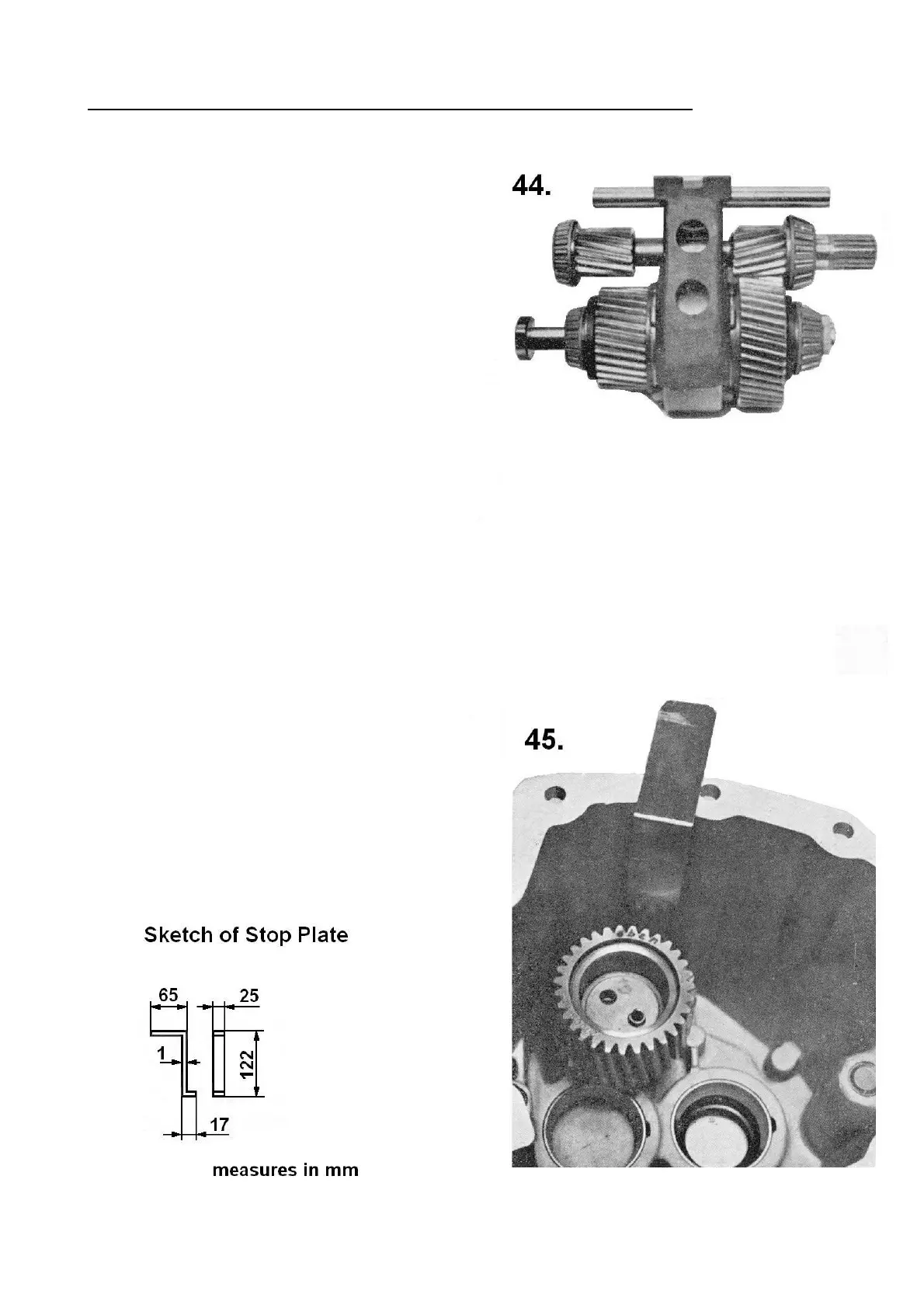

Place the shaft arrangement as
shown on the picture.
“NOTE”: The long side of the
reversing shaft faces the
input side.
Fit the intermediate wheel and
needle bearing.
Lift intermediate wheel with stop
plate (see illustration).
The intermediate wheel should be
lifted about 25 mm, otherwise fitting
is not possible.
