Fitting of Shaft Seal Rings
Fit the protective cap No. 1 x 56
136 992 over the input shaft.
Smear the seal ring 25 x 33 x 6 with
a thin layer of grease on the lip ring
and smear with a thin layer of
plastic liquid jointing on the outside.

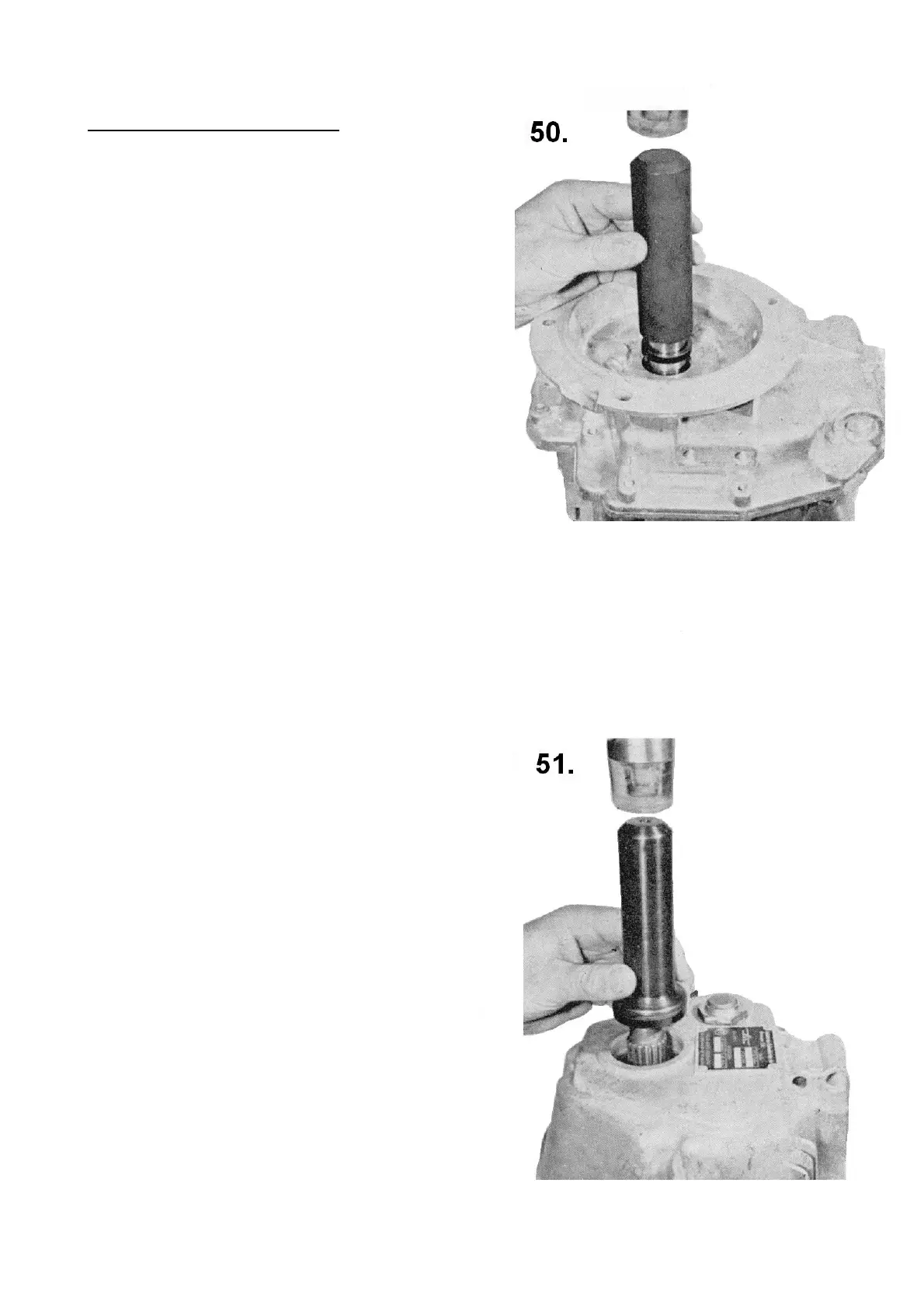

Fit the seal ring with punch No. 1 x
56 199 916 so that it fits tightly
against the bore of the housing.
Smear the similar seal ring 32 x 45
x 7 for the output shaft in the same
way as the seal ring for the input
shaft and fit it by means of punch
No. 1 x 56 136 993 in the housing
so that it fits tightly against the
tapered roller bearing inner collar.
