BullFrog A7L - Adjusting Jet Flow and Types

25
Interchanging JetPaks-
A Series,R Series, and STIL

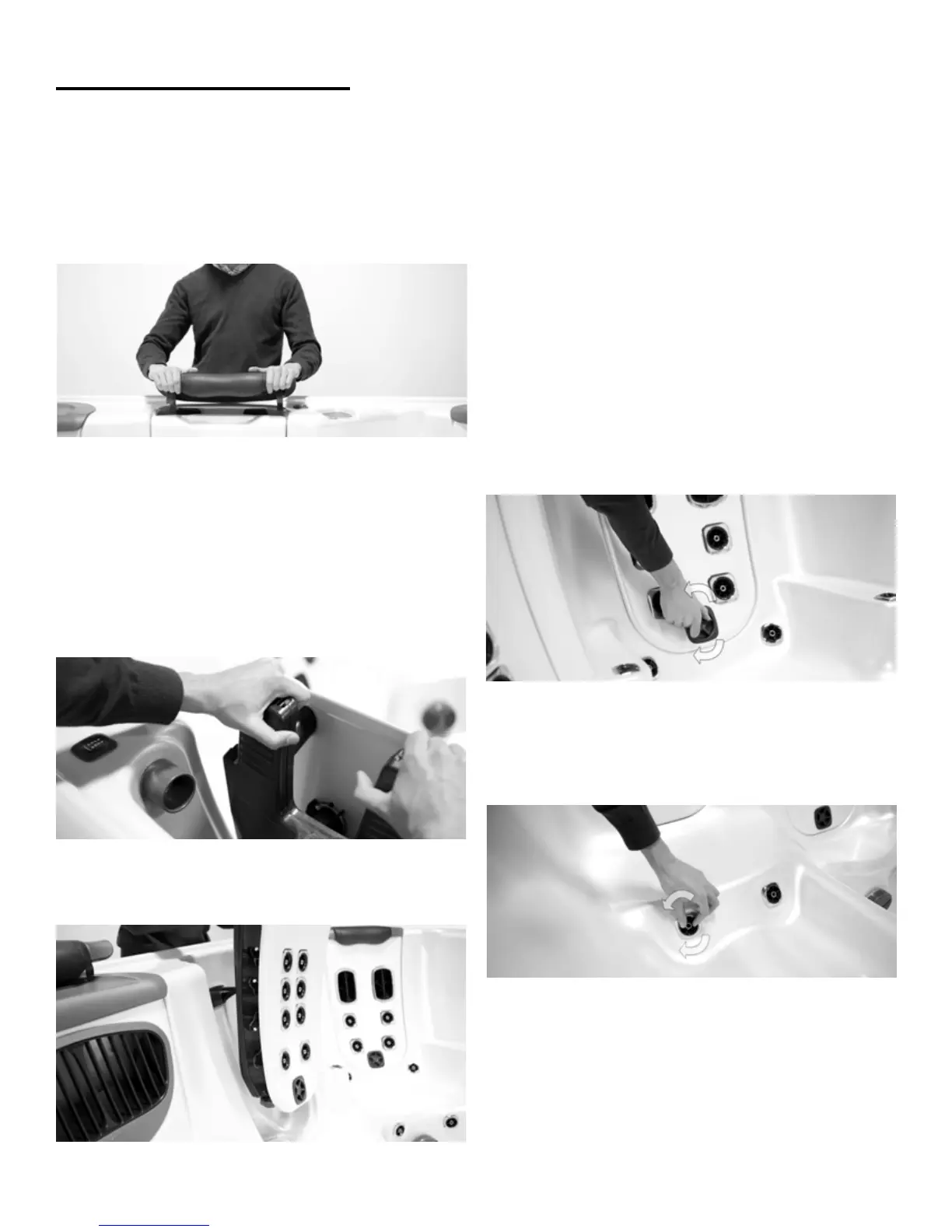

Step 1: Put the spa in “Hold”, this will prevent the pump(s)
from activating (see Control Systems).
Step 2: Remove the head rest and Snap-Cap by lifting upwards.
CAUTION! WHILE PERFORMING STEPS 3&4 YOU
MUST USE THE BLACK MANIFOLD AREA AS THE
POINT OF CONTACT AS SHOWN IN THE PICTURE.
PRESSURE APPLIED TO THE FRONT FACE (ACRYLIC
PLATE) MAY CAUSE DAMAGE TO THE JETPAK
VOIDING THE WARRANTY
Step 3: While applying pressure downward on the manifold
push the manifold toward the inside of the spa to release the
manifold from the wall clip assembly, then lift the jet plate
straight up to remove.
Step 4: Exchange JetPak
Step 5: Lower the manifold of the new JetPak carefully as to
align the lower valve assembly and gasket into the bulkhead
tting. Apply pressure downward as you move the JetPak
manifold until the manifold is secured in the wall clip assembly .
Step 6: Reattach the Snap-Cap and head rest.
Jets
Jet Types
A unique combination of the nest jets available are chosen
to optimally balance each JetPak with ideal performance and
massage intensity. You can achieve virtually limitless therapy
options by adjusting many of the jets for a custom experience.
Adjustable Jets A, R & S Series
To adjust the water ow to A, R & S Series JetPaks, turn the
valve located in the lower portion of each JetPak.
• To increase jet water pressure, turn the valve handle counter
clockwise.
• To decrease jet water pressure, turn the valve handle
clockwise.
• To adjust the water ow to A, R & S Series jets in the shell,
turn the inner jet face.
• To increase jet water pressure, turn the jet face clockwise.
• To decrease jet water pressure, turn the jet face counter
clockwise.
Adjustable Jets X Series Spas
To adjust the water ow on adjustable jets, simply turn the outer
ring.
• To increase jet water pressure, turn the outer ring clockwise.
• To decrease jet water pressure, turn the outer ring counter
clockwise.
NOTE: Turning o jets will increase pressure to other jets on
same pump. To avoid unnecessary system pressure never shut o
all jets at the same time.
NOTE: To allow for proper circulation, the valve located in A,
R & S Series JetPaks is designed to adjust jet pressure, but will
not completely stop jet ow.
