Bunn VPR APS - Schematic Wiring Diagram; Brewer Electrical Schematic

Page 12
L1
BLK
TANK HEATER
WHI
LOWER WARMER
"KEEP WARM" HEATER
WHI
BLK

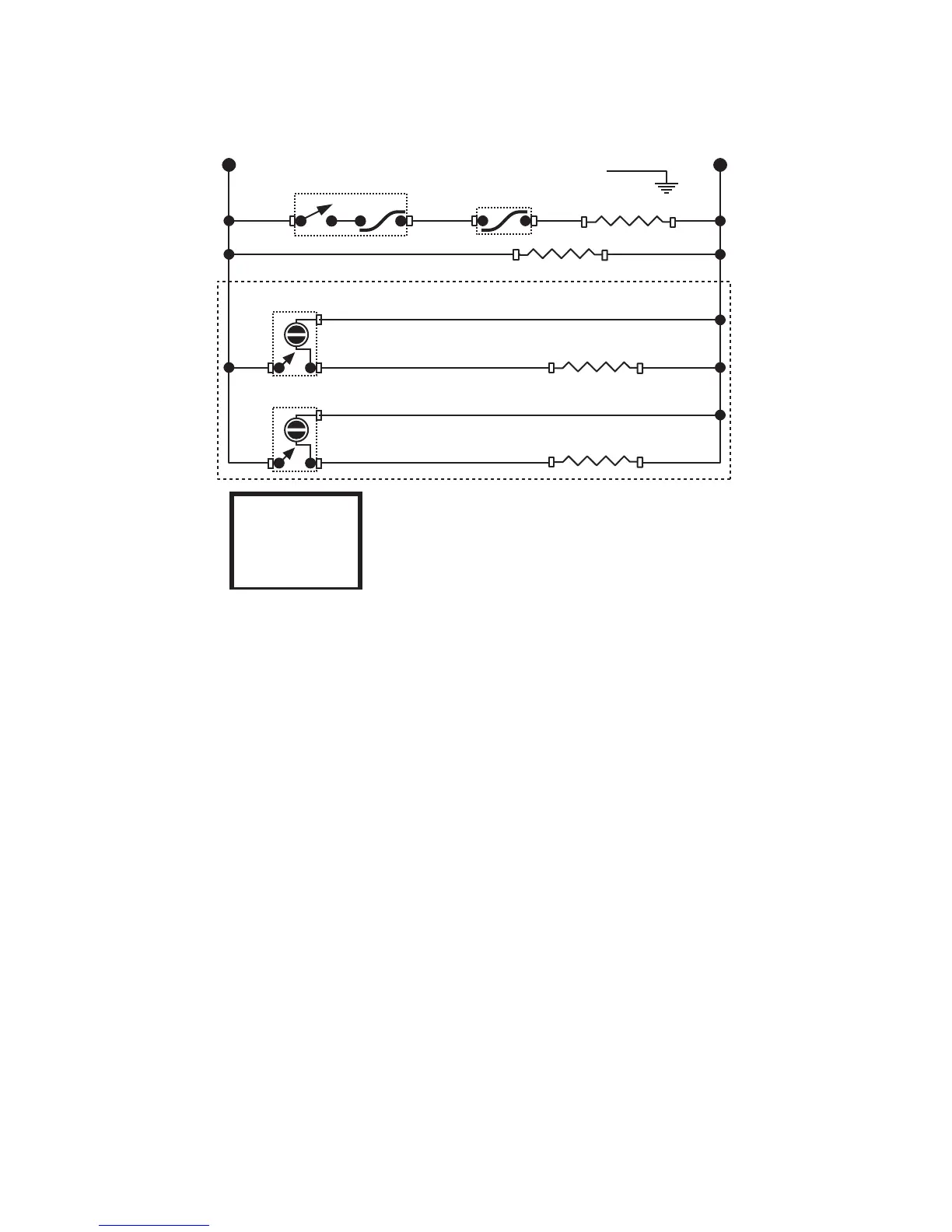

SCHEMATIC WIRING DIAGRAM
VPR, VPR TC & VPR APS
GREEN
N
WHI
WHI
BLK
33769.0000C 03/06 © 2001 BUNN
-
O
-
MATIC CORPORATION
UPPER WARMER
WHI
BLK
120 VOLTS A C
2 WIRE
SINGLE PHASE
60 HZ
WHI/RED
VIO
LIMIT
THERMOSTAT
BLU/BLK
SW. & THERMOSTAT
ON/OFF
SWITCH
ON/OFF
SWITCH
WHI
WHI
MODEL VPR ONLY
39064 042806
