SERVICE
This section provides procedures for testing
and replacing various major components used in
this brewer should service become necessary. Refer
to Troubleshooting for assistance in determining the
cause of any problem.
WARNING - Inspection, testing, and repair of electri-
cal equipment should be performed only by qualified
service personnel. The brewer should be disconnected
from the power source when servicing, except when
electrical tests are required and the test procedure
specifically states to plug-in the brewer.
COMPONENT ACCESS
WARNING - Disconnect the brewer from the power
source before the removal of any panel or the replace-
ment of any component.
All components are accessible by the removal of
the top cover, fill basin and warmer assemblies.
The top cover is attached with two #4-40
screws.
P3447.70

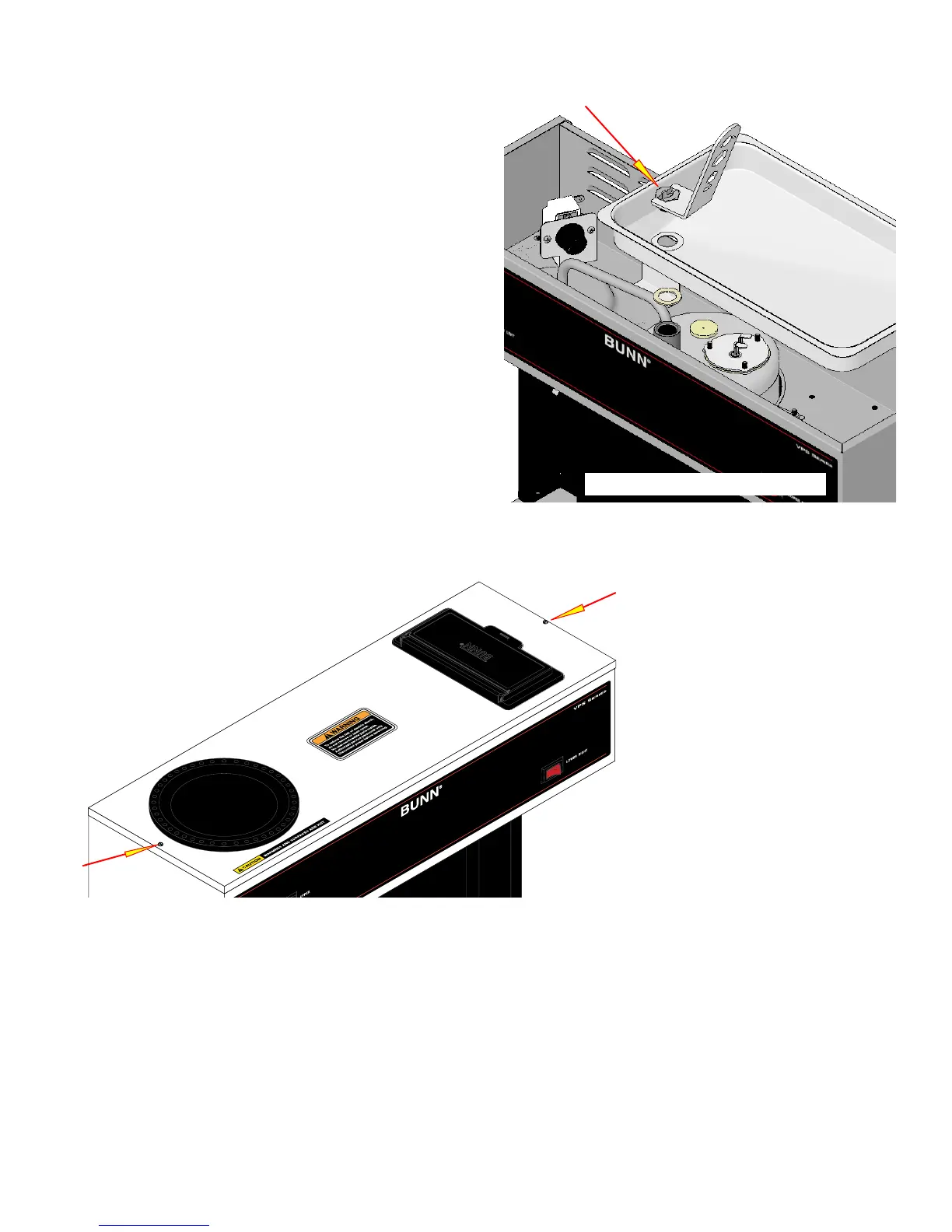

The tank inlet fitting secures the fill basin to the
tank lid. Basin wrench 01060.0000 shown.
FIG. 7-1 FILL BASIN REMOVAL
FIG. 7-2 COMPONENT ACCESS
