6 TRI-FLEX II BED - OPERATION MANUAL
The control box for the bed is located under the head gatch on the left side of

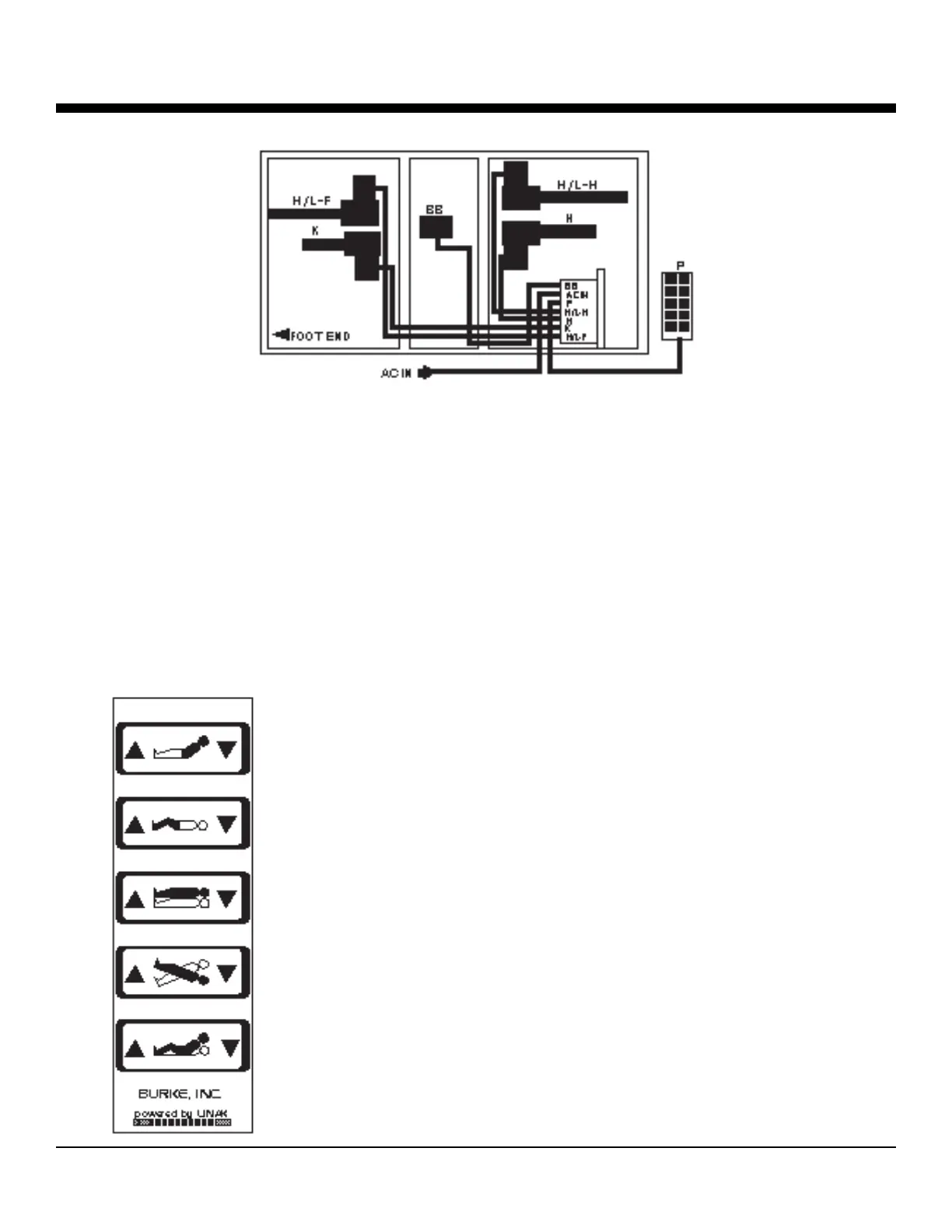

the bed. This schematic is also on a label located on the control box. The
abbreviations are as follows:
H = Head gatch actuator
K = Knee gatch actuator
H/L-H = Hi/o Head actuator
H/L-F = Hi/Lo Foot actuator
BB = Battery Backup
P = Pendant
AC IN = AC power cord
Electrical Schematic
Pendant Controls
The pendant control of the bed controls all bed functions. The
pendant symbols are defined as follows:
HEAD GATCH - UP/DOWN
adjusts upper body for patient comfort
KNEE GATCH - UP/DOWN
adjust knee for patient comfort
FULL BED HI/LOW - UP/DOWN
adjusts bed height for transfer and/or other patient care.
return to full down when patient is unattended
TRENDELENBERG - UP/DOWN
adjust full bed for trendelenberg function
HEAD/KNEE - UP/DOWN
both head and knee gatch work simultaneously
Control Schematics
