Burley Bee Owner’s Instruction and Safety Manual
I. Hardware Bag Contents and Tool List
IMPORTANT: Please verify that you have received all of the
con tents listed. Do not pro ceed with as sem bly if any parts are
missing; contact Bur ley im me di ate ly for replacement parts.
Hardware Bag Contents
(2) large red refl ectors
(2) hex head refl ector screws
(2) 1” plastic refl ector brackets
(1) 5 x 10 plastic bag
Envelope
Burley Checklist
Warranty Card
Burley Bee Owner’s Instruction & Safety Manual
II. Mounting the Refl ectors
The red refl ectors install onto the rear of the main frame tube of the trailer on the
right and left sides. The main frame tubes run along either side of the trailer bottom
frame.

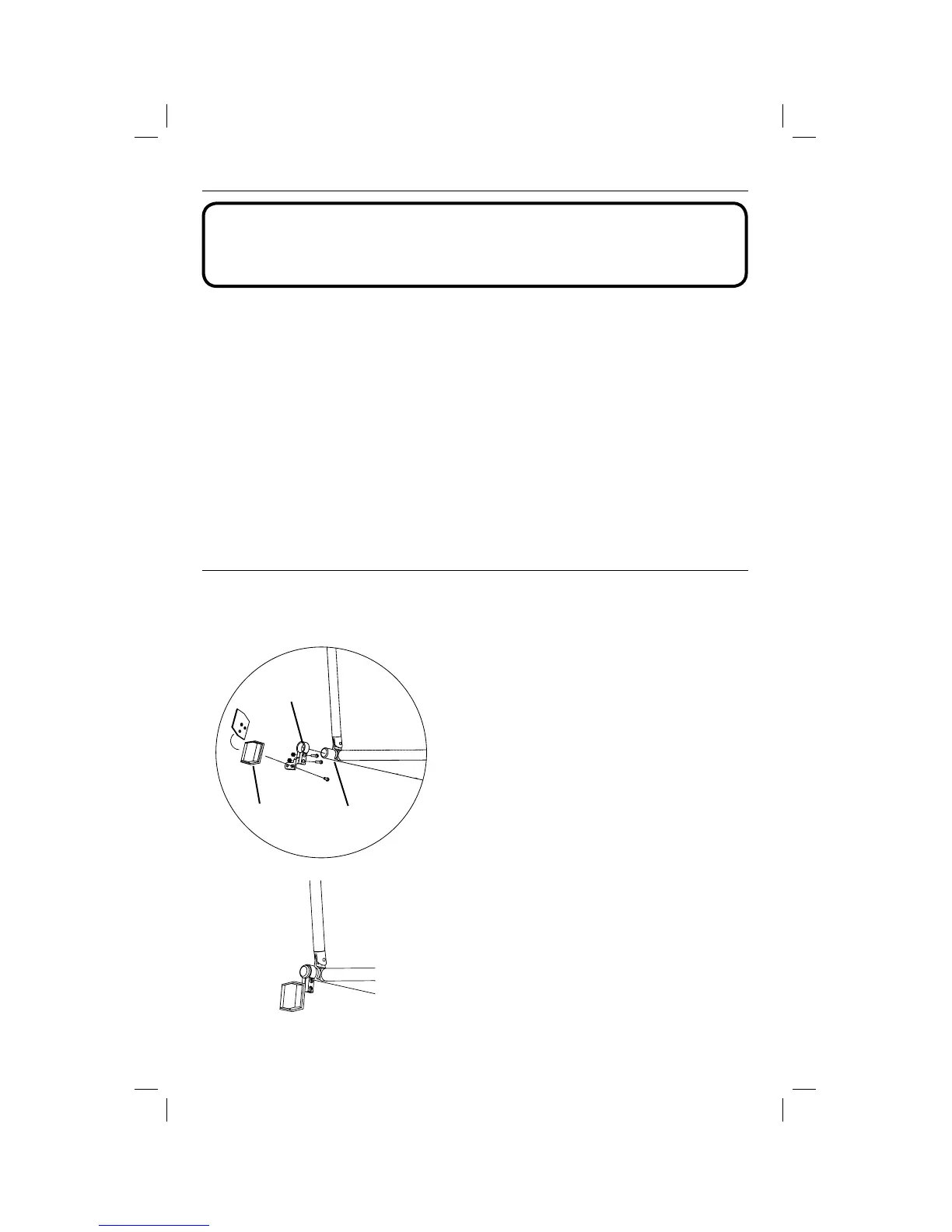

1. The bracket (A) mounts as shown on the
section of the main frame tube that extends
behind the trailer (B). Tighten the clamp onto
the tube so that the two holes used to mount
the refl ector are horizontal.
2. Screw the refl ector (C) onto the bracket as
shown.
3. The lower screw on the refl ector bracket
is used to adjust the angle of the refl ector.
Adjust the angle of the refl ector to ensure
that the back face is oriented vertically to the
ground, so that the refl ector points directly
back when the trailer is attached to the bike.
4. Repeat for the other side of the trailer.
A
B
C
Tools Required
Phillips screwdriver
9/16" socket and torque wrench
Flat blade screwdriver
