Burnertech Inverterjet Series User Manual

Installation / Service / User Manual BURNERTECH
6
3 Technical Information
3.1 Technical Data
MODEL INVERTERJET 50/M INVERTERJET 90/M
Type Pre-Mix Burner Pre-Mix Burner
Fuel Natural Gas/LPG Natural Gas/LPG
Power Min-Max [kW] 10-50 18-90
Modulation Range 1:5 1:5
Nominal Voltage Range [VAC] 120/230 120/230
Frequency [Hz] 50/60 50/60
Phase 1 ~ 1 ~
Fan Current Draw Max [A] 1.9 1.9
Gas Connection 1/2 “BSP 1/2 “BSP
Gas Pressure Min - Max [mbar] 10 – 60 10 – 60

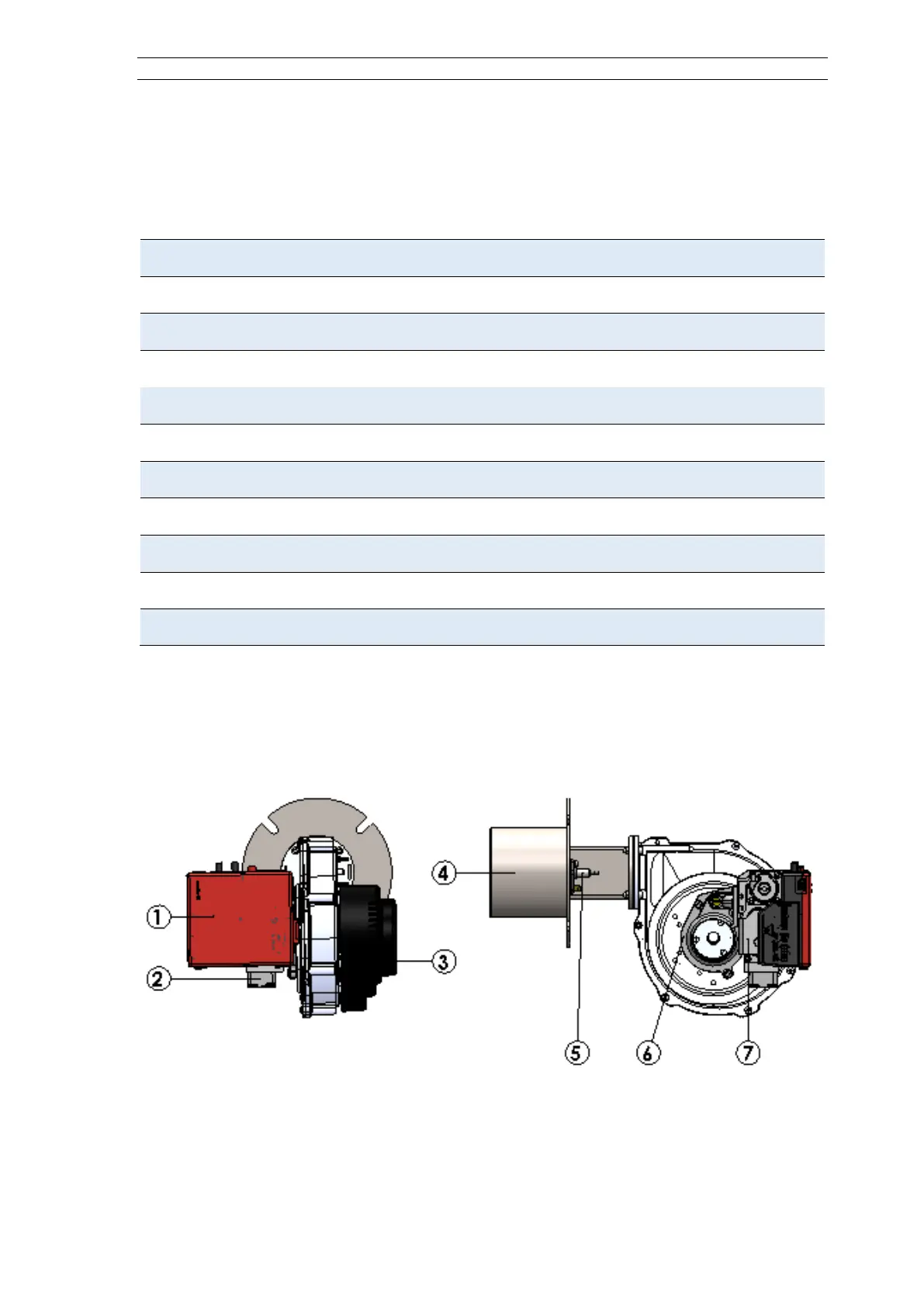

3.2 Technical Description of the Burner Parts
The Inverterjet 50M and 90M have the following technical description of the parts.
1 Controller
2 Gas Connection Flange
3 Fan Housing
4 Inverterjet Burner Head
5 Ignition Electrode
6 Venturi
7 Gas Valve
8 Ionisation Probe (Not shown)
