© 2021 Alamo Group Inc.

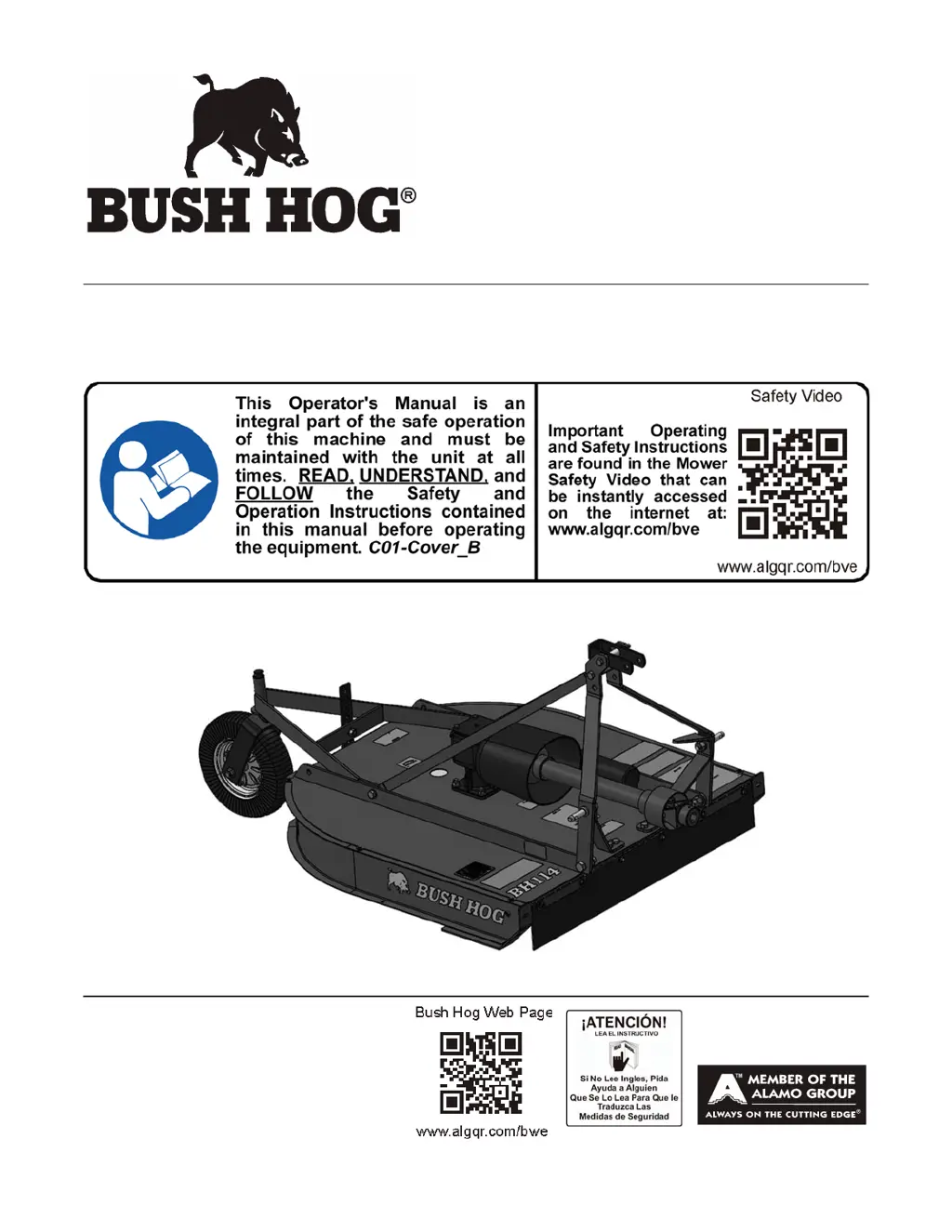

BH100 SERIES
MODELS
BH114, BH115, BH116
Published 04/21 Part No. 50081411
OPERATOR’S MANUAL
BUSH HOG
®
2501 Griffin Ave.
Selma, AL 36703
334-874-2700
www.bushhog.com
ROTARY MOWER
$0.00

Table of Contents

Questions and Answers

  • P
    Philip KnappAug 16, 2025
    How to fix uneven cut with Bush Hog BH100 Lawn Mower?
    • U
      unealAug 16, 2025
      To fix an uneven cut with your Bush Hog Lawn Mower, consider these potential causes and solutions: * Reduce ground speed if it's excessive. * Replace worn, dull, or bent blades. * Adjust the mower to ensure it is level from side to side. * Adjust the mower height. * Adjust the tractor tire pressure on both sides. * Reduce ground speed when turning. * Adjust your tractor wheel spacing. * Repair or replace a damaged mower pan.
  • A
    Alan BuckleyAug 19, 2025
    Why are blade bolts working loose on my Bush Hog BH100 Lawn Mower?
    • R
      Randy FoxAug 19, 2025
      If the blade bolts on your Bush Hog Lawn Mower are working loose: * Tighten the bolts to 600 ft./lbs. * Replace the blade carrier if the bolt hole is elongated or oversized. * Replace the lockwasher if it's broken.
  • D
    David BradyAug 22, 2025
    What to do if Bush Hog Lawn Mower leaves uncut material?
    • D
      Dr. Katherine MckinneyAug 22, 2025
      To address uncut material when using your Bush Hog Lawn Mower: * Reduce ground speed if it's excessive. * Ensure you are using full PTO speed. * Install blades correctly to ensure proper rotation.
  • W
    william75Aug 26, 2025
    Why is my Bush Hog BH100 gearbox leaking?
    • R
      rossalexisAug 26, 2025
      If your Bush Hog Lawn Mower gearbox is leaking, possible causes include: * A damaged oil seal, which should be replaced. * A bent shaft, requiring replacement of both the oil seal and shaft. * A rough oil seal race, which may need shaft replacement or race repair. * An incorrectly installed oil seal, necessitating replacement. * An oil seal not sealing in the housing, addressed by replacing the seal or using a sealant. * Too high oil level, requiring draining to the correct level. * A damaged gasket, which should be replaced. * Loose bolts, which need tightening. * A sand hole in the casting, suggesting replacement of the castings or gearbox.
  • J
    Jason SanchezAug 28, 2025
    Why does my Bush Hog Lawn Mower leave streaks?
    • A
      Amanda FreemanAug 28, 2025
      To resolve streaking conditions with your Bush Hog Lawn Mower: * Allow grass to dry before cutting if conditions are too wet. * Lowering the cutting height may help if slow blades are unable to cut due to the tractor's speed and grass being pressed down. * Sharpen or replace dull blades. * Refer to the Cutting Height Instructions if the cutter's height is lower at the rear or front.
  • J
    Jennifer CannonAug 31, 2025
    Why does the shear pin shear on my Bush Hog BH100 Lawn Mower?
    • J
      Joe RiddleAug 31, 2025
      If your Bush Hog Lawn Mower shear pin shears, consider these potential causes: * Ensure the tractor PTO is running at 540 RPM. * Reduce ground speed if the material is heavy. * Use only the recommended shear pin for replacement. * Idle the engine before engaging the PTO. * Increase cutting height in rocky conditions. * Check gearbox ratios if the blade carrier RPM is too high.
  • J
    Jodi SteeleSep 3, 2025
    Why is my Bush Hog BH100 gearbox overheating?
    • C
      Christy JacksonSep 3, 2025
      If your Bush Hog Lawn Mower gearbox is overheating: * Fill to the level plug if the lubricant is low. * Replace with the proper lubricant if the current type is incorrect. * Remove any excessive trash build-up around the gearbox.
  • H
    Helen LeeSep 6, 2025
    How to improve shredding with Bush Hog Lawn Mower?
    • D
      Donna BrownSep 6, 2025
      For poor shredding with your Bush Hog Lawn Mower: * Raise the front of the mower relative to the rear to hold and circulate material longer if your ground speed is excessive. * Lower the cutting height if you are cutting too high.
  • E
    Elizabeth RodriguezSep 9, 2025
    What to do if my Bush Hog BH100 Lawn Mower is windrowing?
    • A
      Ashley DavisSep 9, 2025
      To address windrowing with your Bush Hog Lawn Mower: * Raise the front of the mower relative to the rear if the material is heavy and lush. * Reduce ground speed if it's excessive. * Wait for conditions to dry if they are too wet.
  • C
    Chad BergerSep 12, 2025
    Why is my Bush Hog Lawn Mower gearbox noisy?
    • C
      Christopher MayerSep 12, 2025
      If your Bush Hog Lawn Mower gearbox is noisy: * Check the lubricant level if it's low. * Run in or change the gears if they are rough. * Replace the bearing if it's worn.

Bush Hog BH100 Series Specifications

General IconGeneral
BrandBush Hog
ModelBH100 Series
CategoryLawn Mower
LanguageEnglish
