Bush Hog LOADER 3045 - Page 11

1-20B-7

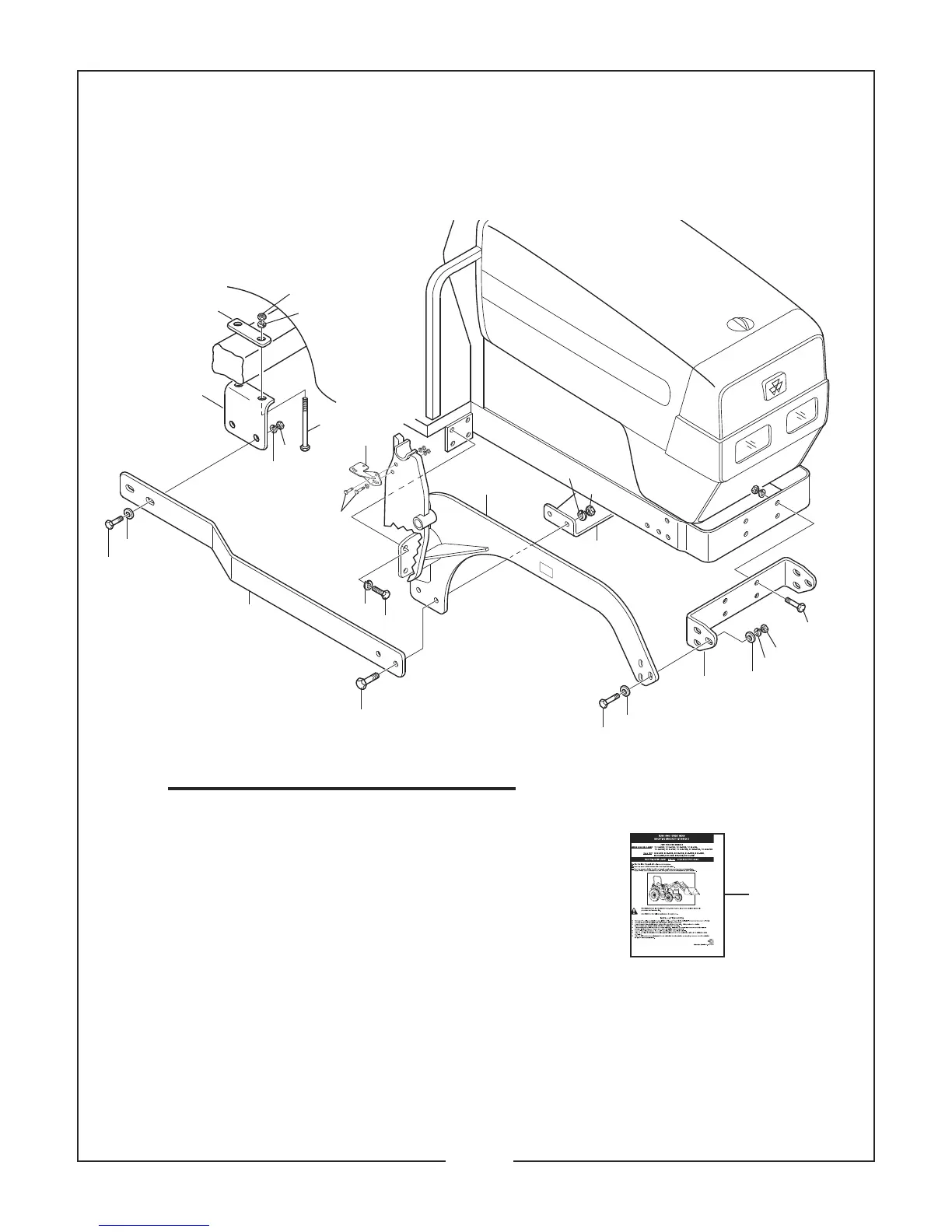

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
50051178 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: MASSEY FERGUSON 1165, 1445, 1455, 1455V
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50042928 2 Rear Brace
2 50051181 1 L.H. Mounting Bracket
50051180 1 R.H. Mounting Bracket
3 50042929 2 Lower Mount Plate
4 50042969 2 Upper Mount Bar
5 50043051 1 Front Bracket
6 50043052 1 Belly Plate
7 50046238 1 Valve Mount Bracket
8 –––– 6 Capscrew 5/8” x 2-1/2” G5 ZP
9 –––– 10 Hex Nut 5/8” CP
10 44814 16 Flatwasher 5/8” SAE HRD ZP
11 –––– 18 Lockwasher 5/8” CP
12 –––– 4 Capscrew 3/4” x 3” G5 ZP
13 –––– 4 Hex Nut 3/4” CP
14 –––– 4 Lockwasher 3/4” CP
15 –––– 4 Capscrew 5/8” x 2” G5 ZP
16 20519 4 Capscrew 1/2” x 7” G5 ZP
17 –––– 4 Hex Nut 1/2” CP
18 –––– 4 Lockwasher 1/2” CP
19 44338 8 Capscrew M16 x 2 x 35 G8 ZP
20 50051179 1 Instruction Sheet
18
16
7
Fasteners from
valve stand kit
2
14
13
6
10
5
10
11
9
Existing
Fasteners
8
19
12
11
1
10
15
3
9
11
4
17
20
SEPTEMBER, 2006
