1-20B-6
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

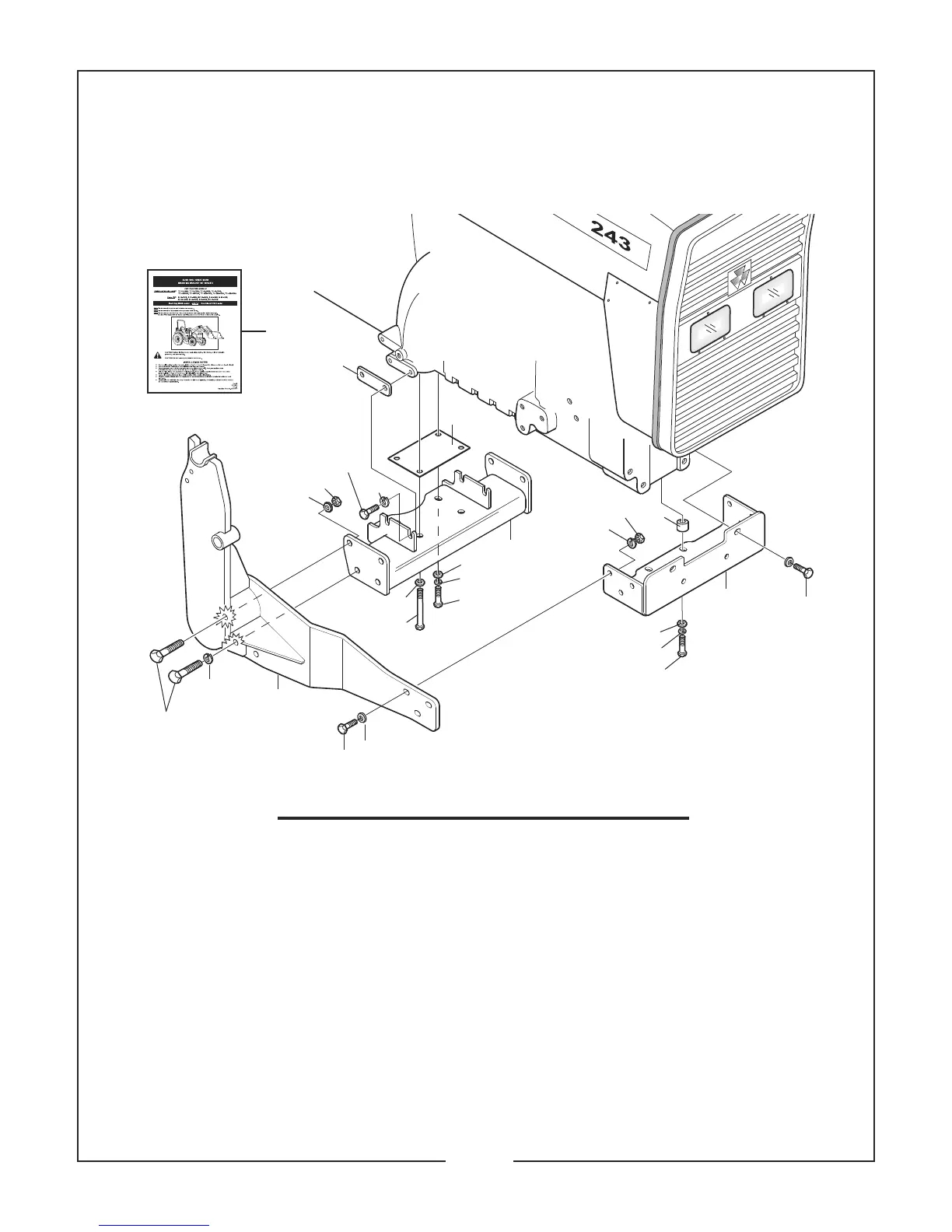

50051172 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: MASSEY FERGUSON 231-2WD, 231S-2WD, 240-2WD, 240S-2WD,
241-2WD, 243-2WD, 250-2WD, 253-2WD, 263-2WD
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50061425 1 Cross Brace
2 50043714 1 Front Bracket
3 50051175 1 L.H. Mounting Bracket Weldment
50051174 1 R.H. Mounting Bracket Weldment
4 50043863 2 Spacer Pad
5 11-3-113 2 Bushing (1”)
6 25H46373 1 Rear Cover Plate
7 44976 2 Socket Head Capscrew 5/8” x 1-1/2” ZP
8 –––– 8 Hex Nut 3/4” CP
9 –––– 6 Hex Nut 5/8” CP
10 44814 16 Flatwasher 5/8” SAE HRD ZP
11 –––– 8 Lockwasher 3/4” CP
12 –––– 16 Lockwasher 5/8” CP
13 –––– 8 Capscrew 3/4” x 2-1/4” G5 ZP
14 –––– 2 Capscrew 5/8” x 4-1/2” G5 ZP
15 –––– 8 Capscrew 5/8” x 2-1/4” G5 ZP
16 –––– 8 Capscrew 5/8” x 1-1/2” G5 ZP
17 50101219 2 Socket Head Capscrew 5/8” x 1-1/4” ZP
18 50051173 1 Instruction Sheet
18
6
1
12
9
5
2
Existing
Hardware
10
12
15
11
8
7, 17 (Left Side)
16 (Right Side)
12
10
12
14
10
15
10
16
3
11
13
4
JUNE, 2008
