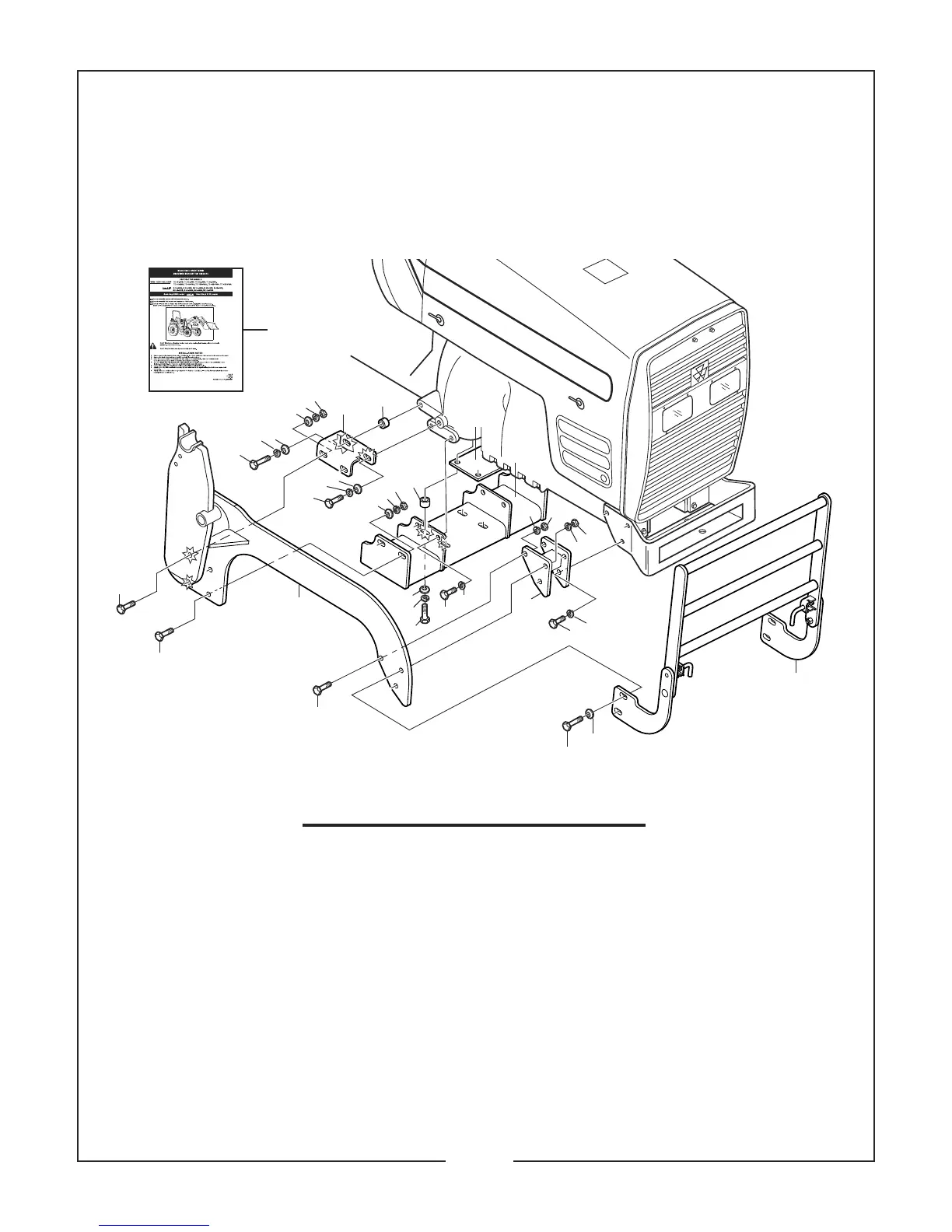

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
50051166 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: MASSEY FERGUSON 431 2WD, 461 2WD,
533 2WD, 543 2WD, 563 2WD
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50046354 1 Grill Guard Assembly
2 50051170 1 L.H. Bracket Weldment
50051169 1 R.H. Bracket Weldment
3 50046063 1 Belly Bracket Weldment
4 25H46373 1 Rear Cover Plate
5 50046052 4 Bushing
6 50046072 2 Front Spacer Weldment
7 50046077 2 Formed Spacer Plate
8 25H44759 2 Spacer Bushing
9 –––– 32 Lockwasher 5/8” CP
10 –––– 4 Capscrew 5/8” x 2-3/4” G5 ZP
11 –––– 12 Capscrew 5/8” x 2-1/4” G5 ZP
12 –––– 4 Capscrew 5/8” x 2-1/2” G5 ZP
13 –––– 6 Capscrew 5/8” x 1/1/2” G5 ZP
14 –––– 14 Hex Nut 5/8” CP GR 5
15 44814 20 Flatwasher 5/8” SAE HRD ZP
16 –––– 6 Capscrew 5/8” x 2” G5 ZP
17 50051167 1 Instruction Sheet
17
11
11
11
11
2
9
9
15
14
7
8
3
9
14
9
14
6
9
1
15
10
16
4
15
15
15
9
14
5
9
13
15
9
12
13
9
JULY, 2007
