Bush Hog LOADER 3045 - Page 13

1-20B-9
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

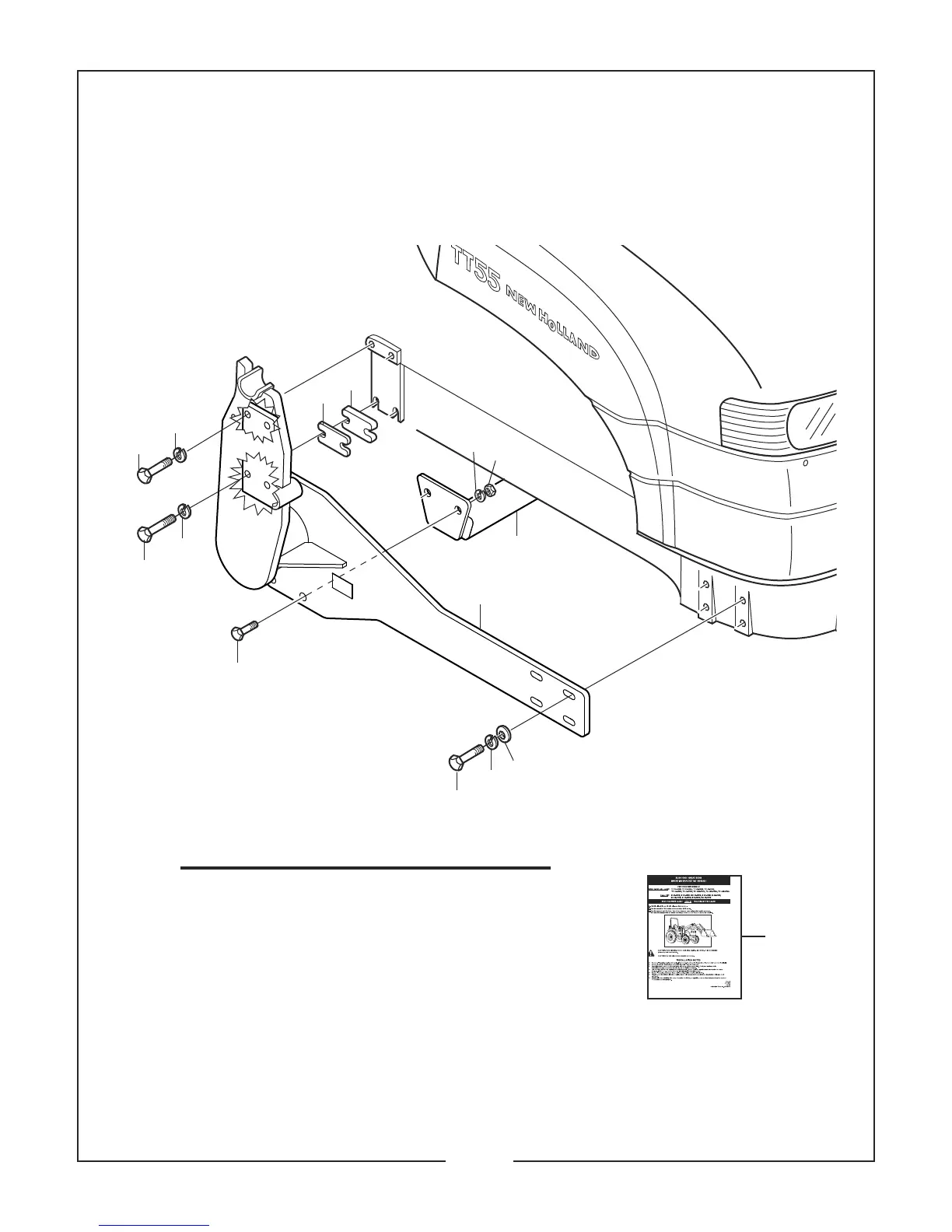

50051192 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: NEW HOLLAND/ FORD TT55-2WD
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50045016 1 Cross Brace Weldment
2 50051195 1 L.H. Mounting Bracket Weldment
50051194 1 R.H. Mounting Bracket Weldment
3 50045025 2 Spacer Block (1/2”)
4 50049131 2 Spacer Block (1/4”)
5 –––– 4 Hex Nut 3/4” CP
6 –––– 4 Lockwasher 3/4” ZP
7 –––– 4 Capscrew 3/4” X 2-1/4” G5 ZP
8 44804 4 Capscrew M16 X 1.5 X 70 G8.8 ZP
9 44814 8 Flatwasher 5/8” SAE HRD ZP
10 44213 12 Capscrew M16 X 1.5 X 50 G8.8 ZP
11 –––– 16 Lockwasher 5/8” CP
12 50051193 1 Instruction Sheet
12
10
11
6
5
2
1
9
11
10
3
4
11
7
8
SEPTEMBER, 2006
