Bush Hog LOADER 3045 - Page 14

1-20B-10
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

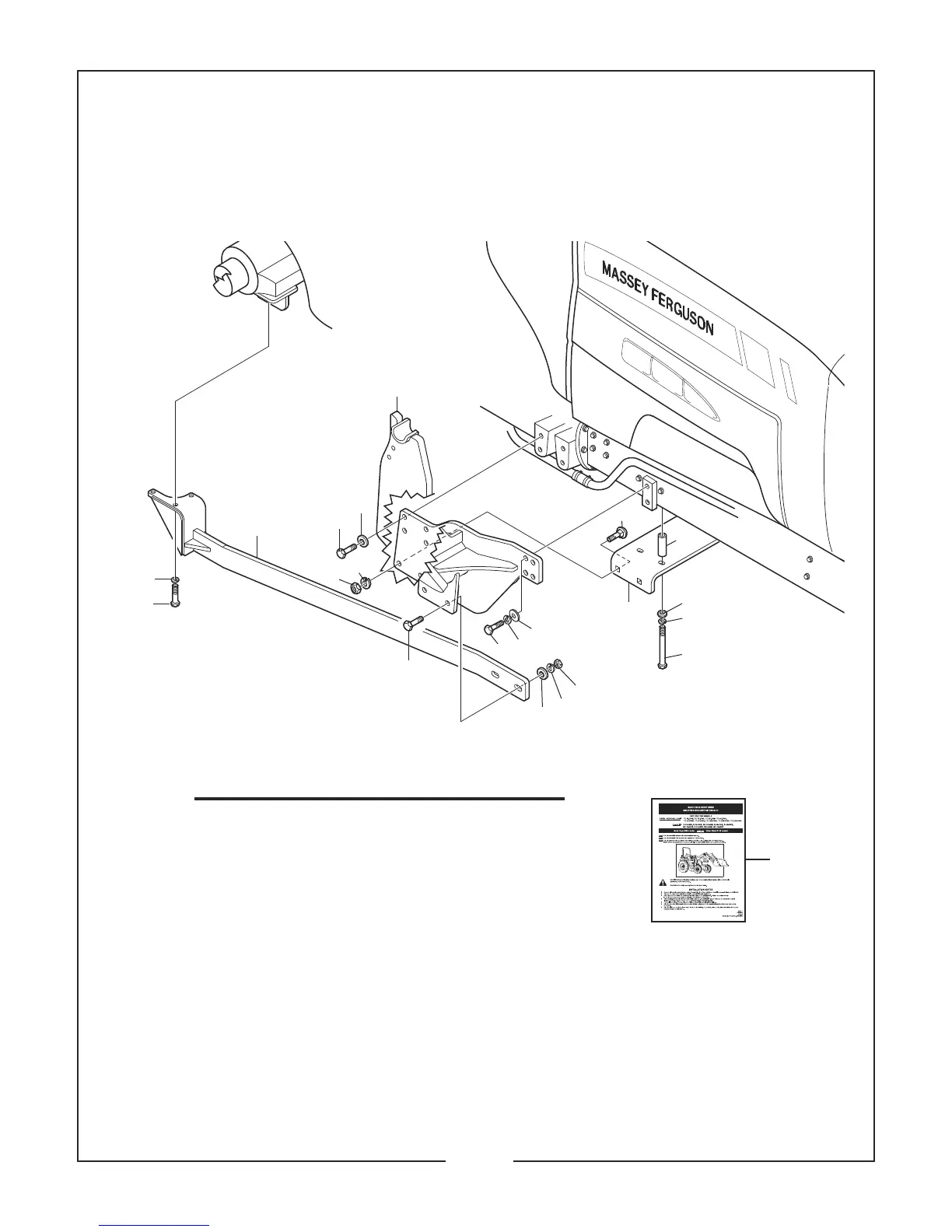

50051546 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: MASSEY FERGUSON 1547-FWA, 1552-FWA;
AGCO ST47A-FWA, ST52A-FWA
CHALLENGER MT285B-FWA, MT295-FW
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50049251 1 L.H. Rear Brace Weldment
50049248 1 R.H. Rear Brace Weldment
2 50049245 1 Lower Crossbrace
3 50051548 1 L.H. Bracket Weldment
50051547 1 R.H. Bracket Weldment
4 50049412 4 Spacer Bushing
5 45033 12 Capscrew M16 x 1.5 x 50 G10.9 ZP
6 44922 4 Capscrew M12 x 1.75 x 110 G10.9 ZP
7 44285 6 Capscrew M12 x 1.75 x 60 G8.8 ZP
8 44269 4 Flatwasher M12 ZP
9 44200 10 Lockwasher M12 ZP
10 –––– 8 Hex Nut 5/8” CP GR 5
11 –––– 20 Lockwasher 5/8 CP
12 44814 8 Flatwasher 5/8” SAE HRD ZP
13 –––– 4 Capscrew 5/8” x 2-1/4” G5 ZP
14 –––– 4 Carriage Bolt 5/8” x 2-1/4” G5 ZP
15 50051552 1 Instruction Sheet
15
7
9
1
5
11
3
14
4
2
8
9
6
11
13
12
11
5
12
11
10
10
JULY, 2007
