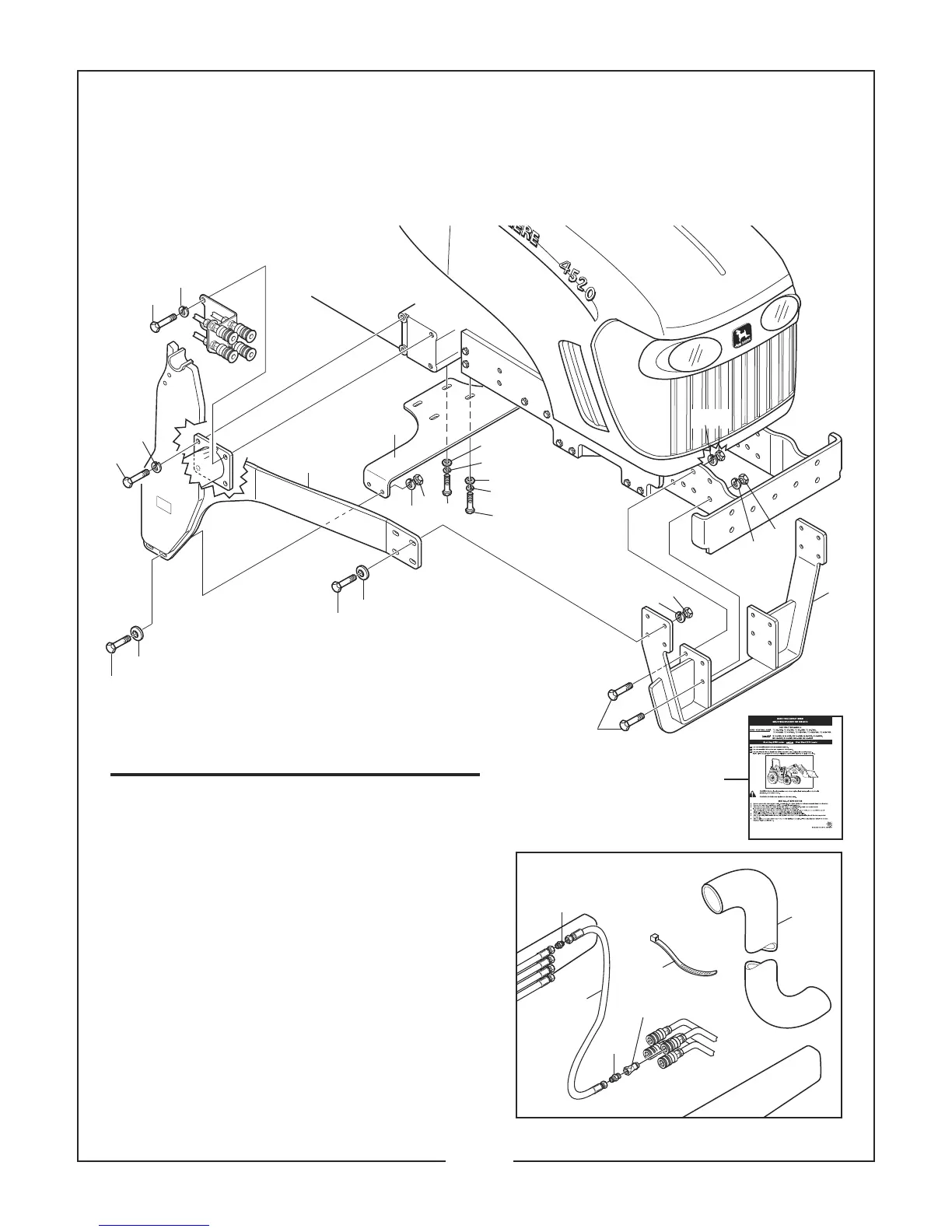

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
50051560 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: JOHN DEERE 4120-FWA, 4320-FWA, 4520-FWA, 4720-FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50048924 1 Belly Bracket Plate
2 50048923 1 Front Support
3 50051562 1 Mounting Bracket L.H.
50051561 1 Mounting Bracket R.H.
4 52161 4 Cable Tie
5 25H46125 2 Hose Sleeve
6 53341 4 Hyd. Fitting Adaptor
7 25H40043 4 Male Straight Adaptor
8 1560384 4 Hyd. Hose (60”)
9 44263 2 Flatwasher M14 ZP
10 44269 2 Flatwasher M12 ZP
11 50020926 12 Flatwasher 1/2” SAE HRD ZP
12 –––– 20 Hex Nut 1/2” CP
13 –––– 12 Capscrew 1/2” x 1-3/4” G5 ZP
14 –––– 8 Capscrew 1/2” x 2” G5 ZP
15 –––– 8 Lockwasher 5/8” CP
16 –––– 22 Lockwasher 1/2” CP
17 –––– 2 Lockwasher 9/16” CP
18 44253 2 Capscrew M14 x 2.0 x 35 G8.8 ZP
19 44281 2 Capscrew M12 x 1.75 x 35 G8.8 ZP
20 44103 8 Capscrew M16 x 2 x 40 G8.8 ZP
21 50051565 1 Instruction Sheet
21
20
20
15
11
13
3
1
16
12
19
10
16
9
17
18
16
12
2
16
12
16
12
13
13
5
Male Quick Coupler
4
8
HYDRAULICS
6
14
11
15
SEPTEMBER, 2006
