Bush Hog LOADER 3045 - Page 16

1-20B-12
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

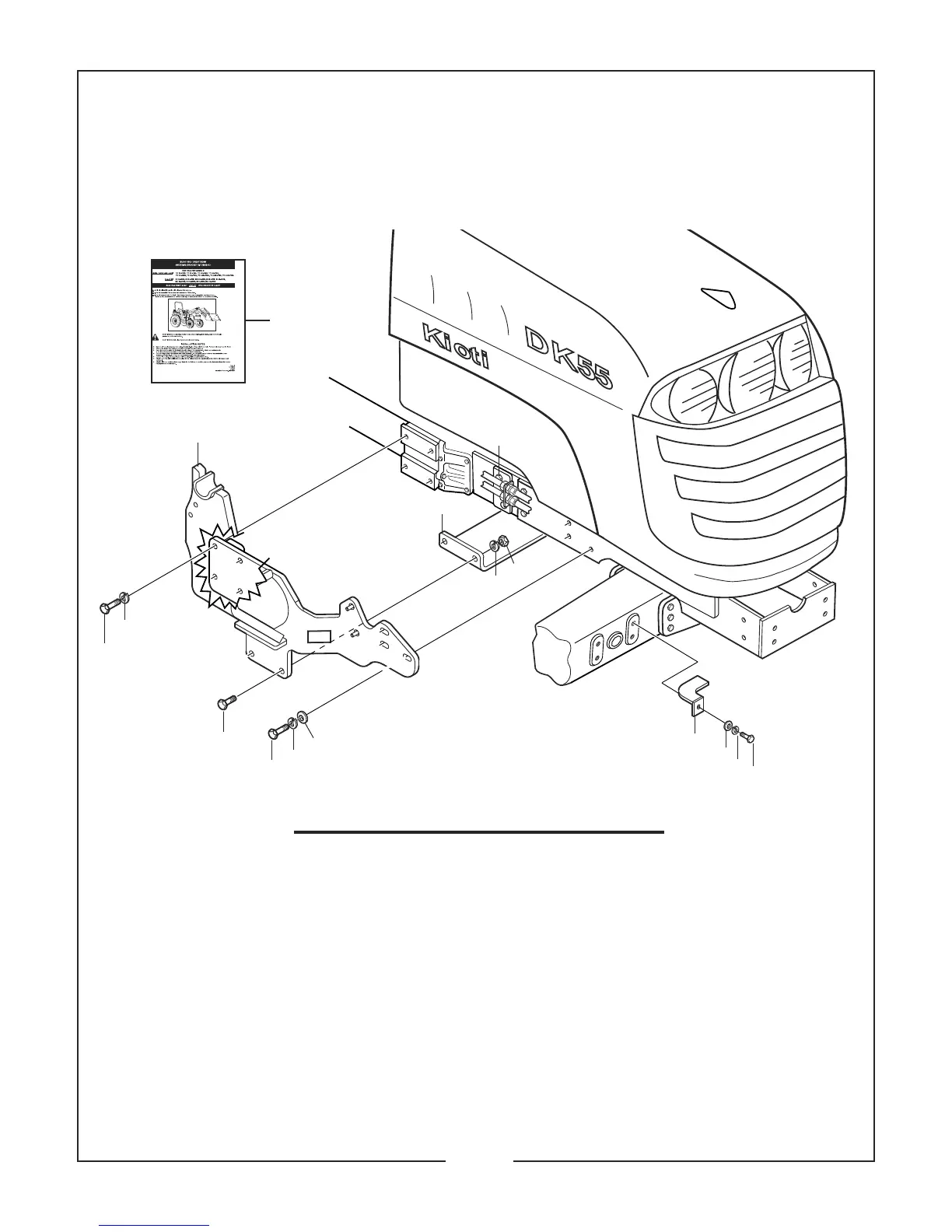

50052154 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: KIOTI DK55, DK55C
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50052156 1 R.H. Mounting Bracket Weldment
50052157 1 L.H. Mounting Bracket Weldment
2 50046045 1 Cross Brace
3 50046349 1 Axle Stop Weldment L.H.
50046350 1 Axle Stop Weldment R.H.
4 –––– 2 Hex Nut 3/8”
5 –––– 2 Lockwasher 3/8” CP
6 44198 2 Lockwasher M10 ZP
7 –––– 2 Flatwasher 3/8” SAE ZP
8 44335 2 Capscrew M10 x 1.25 x 25 G8.8 ZP
9 –––– 4 Hex Nut 5/8” CP GR 5
10 –––– 4 Capscrew 5/8” x 2” G5 ZP
11 –––– 4 Lockwasher 5/8” CP
12 44396 6 Capscrew M14 x 1.5 x 40 G8.8 ZP
13 44377 8 Capscrew M14 x 1.5 x 60 G8.8 ZP
14 44918 6 Flatwasher 9/16” NRW HRD ZP
15 44233 14 Lockwasher M14 ZP
16 50052155 1 Instruction Sheet
16
1
15
10
12
15
14
11
9
2
3
7
6
8
4, 5
13
SEPTEMBER, 2006
