BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
8
2
15
14
3
15
18
15
13
14
17
19
1
16
15
20
7
6
14
15
13
13
9, 10, 11
5
5
4
4
12, 11, 10

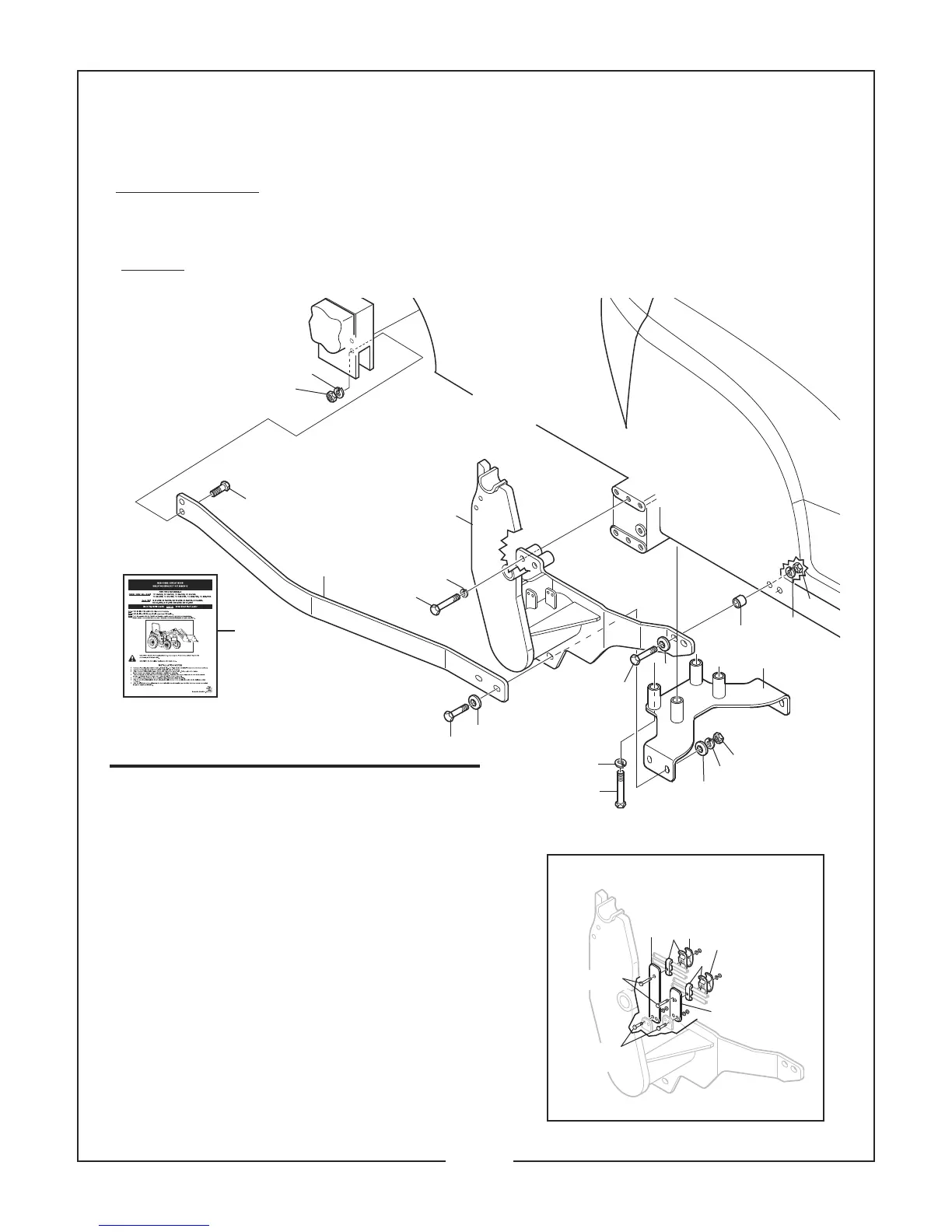

Hydraulic Support Brackets
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50033817 1 Axle Support R.H.
50033816 1 Axle Support L.H.
2 50033825 1 Lower Brace Weldment
3 50052170 1 L.H. Mounting Bracket Weldment
50052169 1 R.H. Mounting Bracket Weldment
4 50028025 2 Cover Plate
5 50028024 2 Tube Clamp - (Pair)
6 50033828 1 Inner Support Bracket
7 50033827 1 Outer Support Bracket
8 25H30646 4 Spacer Bushing - (1”)
9 –––– 2 Capscrew 1/4” x 1-1/2” G5 ZP
10 –––– 6 Hex Nut 1/4” CP
11 –––– 6 Lockwasher 1/4” CP
12 –––– 4 Capscrew 1/4” x 1” G5 ZP
13 –––– 12 Hex Nut 5/8” CP
14 –––– 12 Flatwasher 5/8” SAE HRD ZP
15 –––– 24 Lockwasher 5/8” CP
16 –––– 4 Capscrew 5/8” x 3-1/4” G5 ZP
17 –––– 4 Capscrew 5/8” x 2-3/4” G5 ZP
18 –––– 4 Capscrew 5/8” x 2” G5 ZP
19 44415 8 Capscrew M16 x 2 x 90 G8.8 ZP
20 44324 4 Capscrew M16 x 2 x 110 G8.8 ZP
21 50052168 1 Instruction Sheet
21
50052167 MOUNTING BRACKET KIT
3045 LOADER
FOR TRACTOR MODELS
FORD / NEW HOLLAND TC 35-2WD, TC 35-FWA, TC 35A-2WD, TC 35A-FWA, TC35D-FWA, TC 35DA-FWA, TC40-2WD,
TC 40-FWA, TC 40A-2WD, TC 40A-FWA, TC 40D-FWA, TC 40DA-FWA, TC 45-2WD, TC 45-FWA, TC 45A-2WD,
TC 45A-FWA, TC 45D-FWA, TC 45DA-FWA, T2310-2WD/FWA,T2320-FWA, T2330-FWA, BOOMER 3040 2WD/FWA,
BOOMER 3045 FWA, BOOMER 3050 FWA
CASE / I.H D 35-2WD, D 35-FWA, DX 35-FWA, D 40-2WD, D 40-FWA, DX 40-FWA, D 45-2WD, D 45-FWA, DX 45-FWA,
FARMALL 40-FWA, FARMALL 45-FWA, FARMALL 50-FWA
May, 2009
