1-20B-15
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

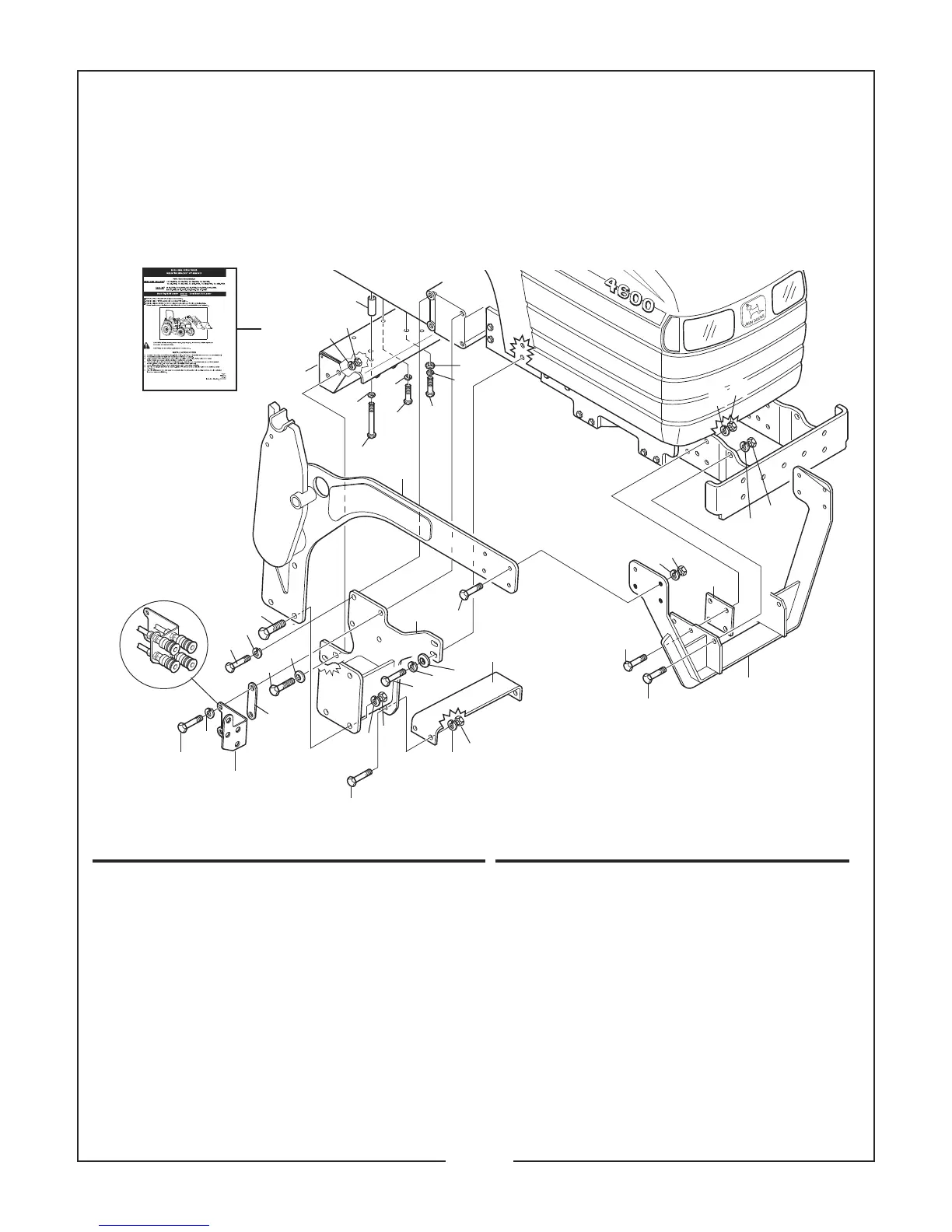

50052178 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON:
JOHN DEERE 4500-2WD/FWA, 4510-2WD/FWA, 4600-2WD/FWA,
4610-2WD/FWA, 4700-2WD/FWA, 4710-2WD/FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50036510 1 Center Support
2 50044939 1 Support Bar
3 50044938 1 Mounting Bracket R.H.
50044937 1 Mounting Bracket L.H.
4 50052180 1 Center Bracket R.H.
50052181 1 Center Bracket L.H.
5 50044934 1 Front Bracket
6 50044942 1 Hyd. Line Relocating Plate
7 50044987 2 Spacer Bushing
8 50044940 2 Bolt Plate
9 50057595 1 Spacer Plate
10 25H42783 4 Hyd. Hose (46 1/2”) (3/4” JIC - 3/4” JIC)
11 53341 4 Straight Thread adapter (3/4” JIC - 3/4” OR)
12 25H40043 4 Union (3/4” JIC - 3/4” JIC)
13 19517 8 Hex Nut 3/4” CP NC Plated CL.2
14 –––– 6 Hex Nut 5/8” CP GR 5
15 –––– 24 Hex Nut 1/2” CP
16 50020926 4 Flatwasher 1/2” SAE HRD ZP
REF. PART
NO. NO.
QTY. DESCRIPTION
17 –––– 4 Flatwasher 5/8” ZP
18 50020934 2 Flatwasher 9/16” Wide Plt
19 –––– 8 Lockwasher 3/4” ZP
20 –––– 14 Lockwasher 5/8” CP
21 –––– 2 Lockwasher 9/16” CP
22 –––– 28 Lockwasher 1/2” CP
23 –––– 8 Capscrew 3/4” x 2” G5 ZP
24 –––– 2 Capscrew 5/8” x 2” G5 ZP
25 –––– 4 Capscrew 5/8” x 1-3/4” G5 ZP
26 –––– 8 Capscrew 1/2” x 2-1/4” G5 ZP
27 –––– 16 Capscrew 1/2” x 1-3/4” G5 ZP
28 44326 6 Capscrew M16 x 2 x 50 G8.8 ZP
29 44103 2 Capscrew M16 x 2 x 40 G8.8 ZP
30 44253 2 Capscrew M14 x 2 x 35 G8.8 ZP
31 44594 2 Capscrew M12 x 1.75 x 90 G8.8 ZP
32 44454 4 Capscrew M12 x 1.75 x 50 G8.8 ZP
33 44394 2 Capscrew M12 x 1.75 x 30 G8.8 ZP
34 50052179 1 Instruction Sheet
34
30
4
27
32
22
16
22
15
19
13
2
26
24
22
15
8
20
22
15
14
5
27
17
3
25
9
6, 10, 11, 12
20
28
23
20
29
22
33
22
31
21
18
14
20
1
7
JUNE, 2008
