Bush Hog LOADER 3045 - Page 20

1-20B-16
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

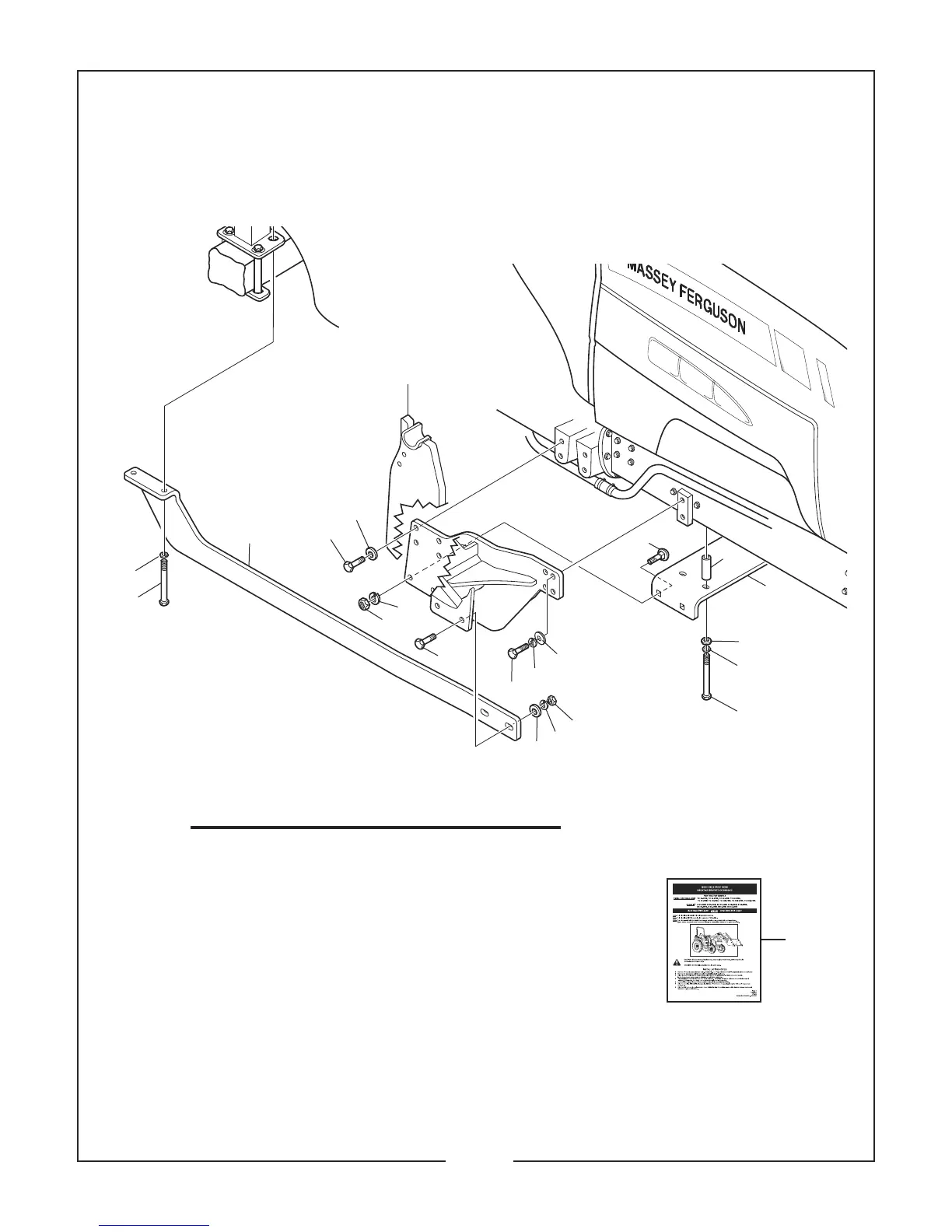

50057359 MOUNTING BRACKET KIT
3045 LOADER
FOR TRACTOR MODELS:
MASSEY FERGUSON 1560-FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50057364 1 L.H. Rear Brace
50057363 1 R.H. Rear Brace
2 50049245 1 Lower Crossbrace
3 50051548 1 L.H. Bracket Weldment
50051547 1 R.H. Bracket Weldment
4 50049412 4 Spacer Bushing
5 45192 4 Capscrew M12 x 1.75 x 190 G10.9 ZP
6 44291 12 Capscrew M16 x 1.5 x 45 G8.8 ZP
7 44332 4 Capscrew M12 x 1.75 x 110 G8.8 ZP
8 44269 4 Flatwasher M12 ZP
9 44200 8 Lockwasher M12 ZP
10 —— 8 Hex Nut 5/8” CP
11 —— 20 Lockwasher 5/8 CP
12 —— 8 Flatwasher 5/8” SAE HRD ZP
13 —— 4 Capscrew 5/8” x 2-1/4” G5 ZP
14 —— 4 Carriage Bolt 5/8” x 2-1/4” G5 ZP
15 50057362 1 Instruction Sheet
15
9
5
1
6
11
3
11
13
6
11
11
12
8
2
4
9
7
12
10
10
14
JULY, 2007
