Bush Hog LOADER 3045 - Page 22

1-20B-18
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

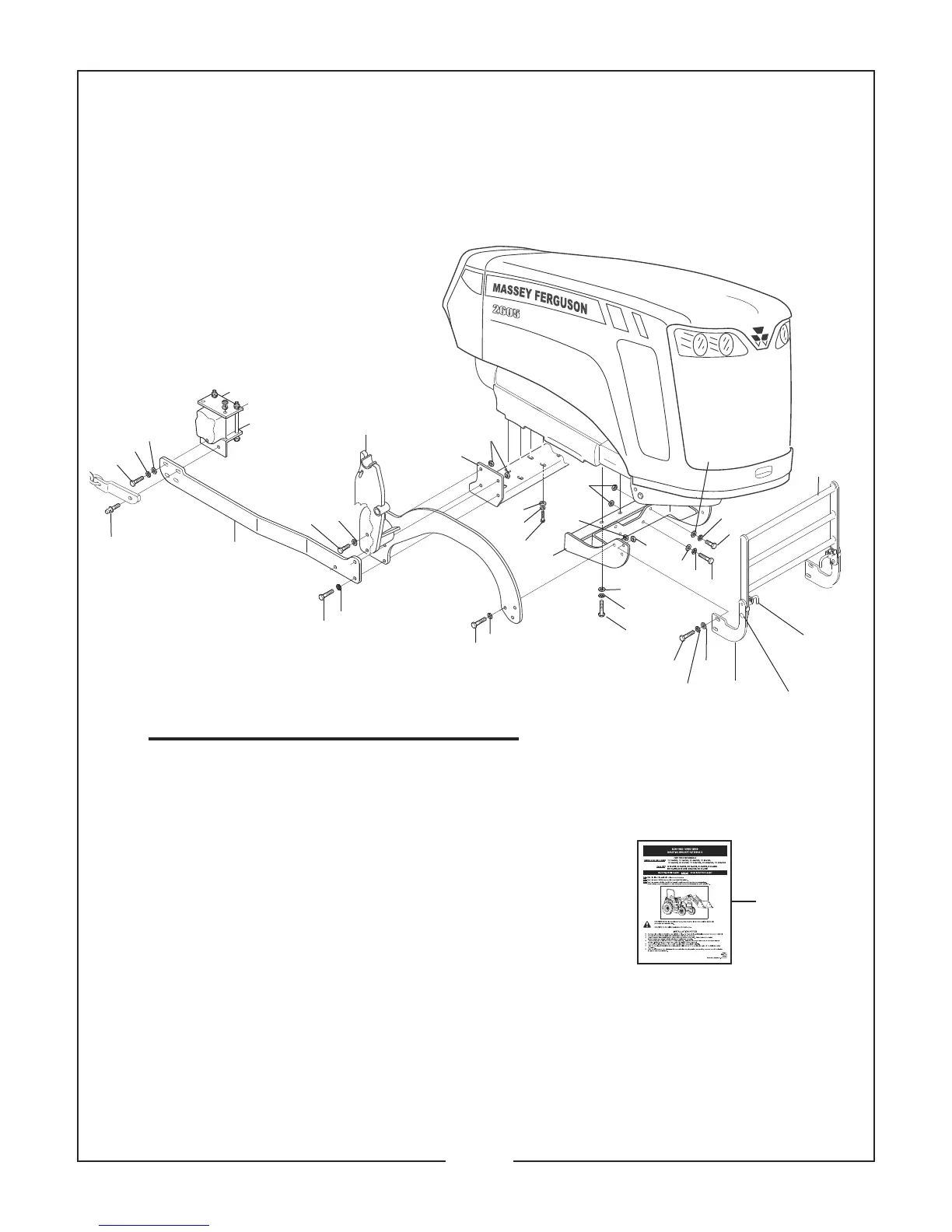

50065717 MOUNTING BRACKET KIT
3045 LOADER
FOR TRACTOR MODEL:
MASSEY FERGUSON 2605-2WD, 2615-2WD
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50062974 1 Front Bracket Weldment
2 50062963 1 R.H. Bracket Weldment
50062964 1 L.H. Bracket Weldment
3 50062972 1 Crossbrace Weldment
4 50065703 1 R.H. Rear Brace
50065704 1 L.H. Rear Brace
5 50046354 1 Grill Guard Assembly
6 50065719 1 Instruction Sheet
7 50062969 2 Hitch Pin
8 –––– 10 Capscrew 5/8” x 2-3/4” G5 ZP
9 –––– 6 Capscrew 5/8” x 2-1/4” G5 ZP
10 –––– 2 Capscrew 5/8” x 4” G5 ZP
11 –––– 12 Flatwasher 5/8” ZP
12 –––– 8 Capscrew 5/8” x 2” G5 ZP
13 –––– 20 Hex Nut 5/8” CP
14 –––– 28 Lockwasher 5/8” CP
15 50016069 2 Grill Guard Side Plate
16 50046355 1 Grill Guard Weldment
17 50034114 2 Spring
18 50032700 2 Latch Pin
19 44078 2 Roll Pin 3/16” x 2”
20 44134 2 Carriage Bolt 1/2” x 1-3/4”
21 44539 2 Hex Nut 1/2” Nylock
6
15
11
14
10
12
14
14
11
13
13
12
14
1
11
14
12
9
14
8
14
14
2
3
13
9
11
4
14
9
7
11
13
11
8
17, 18, 19
20, 21
16
May, 2009
