Bush Hog LOADER 3045 - Page 23

1-20B-19
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

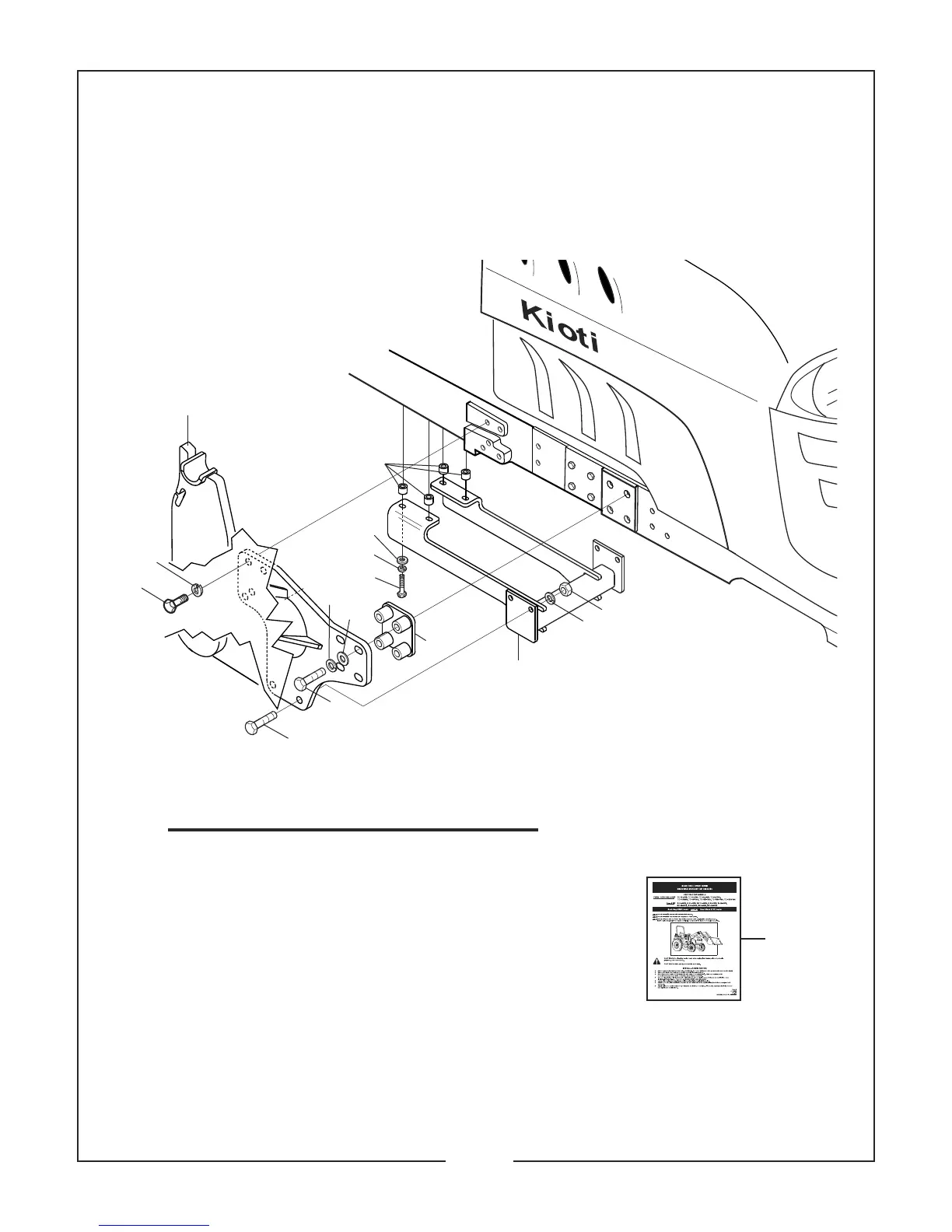

50063136 MOUNTING BRACKET KIT
3045 LOADER
FOR TRACTOR MODEL:
KIOTI DK 40SE FWA, DK 45SE FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50063141 1 L.H. Bracket Weldment
50063140 1 R.H. Bracket Weldment
2 50061682 1 Lower Brace Weldment
3 50063139 1 Instruction Sheet
4 50063150 2 Spacer Weldment
5 50063142 4 Bushing
6 44786 4 Capscrew M12 x 1.5 x 60 G8.8 ZP
7 –––– 4 Lockwasher 1/2” CP
8 –––– 4 Flatwasher 1/2” ZP
9 44232 8 Capscrew M14 x 1.5 x 80 G8.8 ZP
10 44495 8 Capscrew M14 x 1.5 x 45 G8.8 ZP
11 –––– 16 Lockwasher 9/16” CP
12 44918 8 Flatwasher 9/16” NRW HRD ZP
13 –––– 4 Hex Nut 5/8” CP GR 5
14 –––– 4 Lockwasher 5/8” CP
15 –––– 4 Capscrew 5/8” x 2” G5 ZP
