Bush Hog LOADER 3045 - Page 24

1-20B-20
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

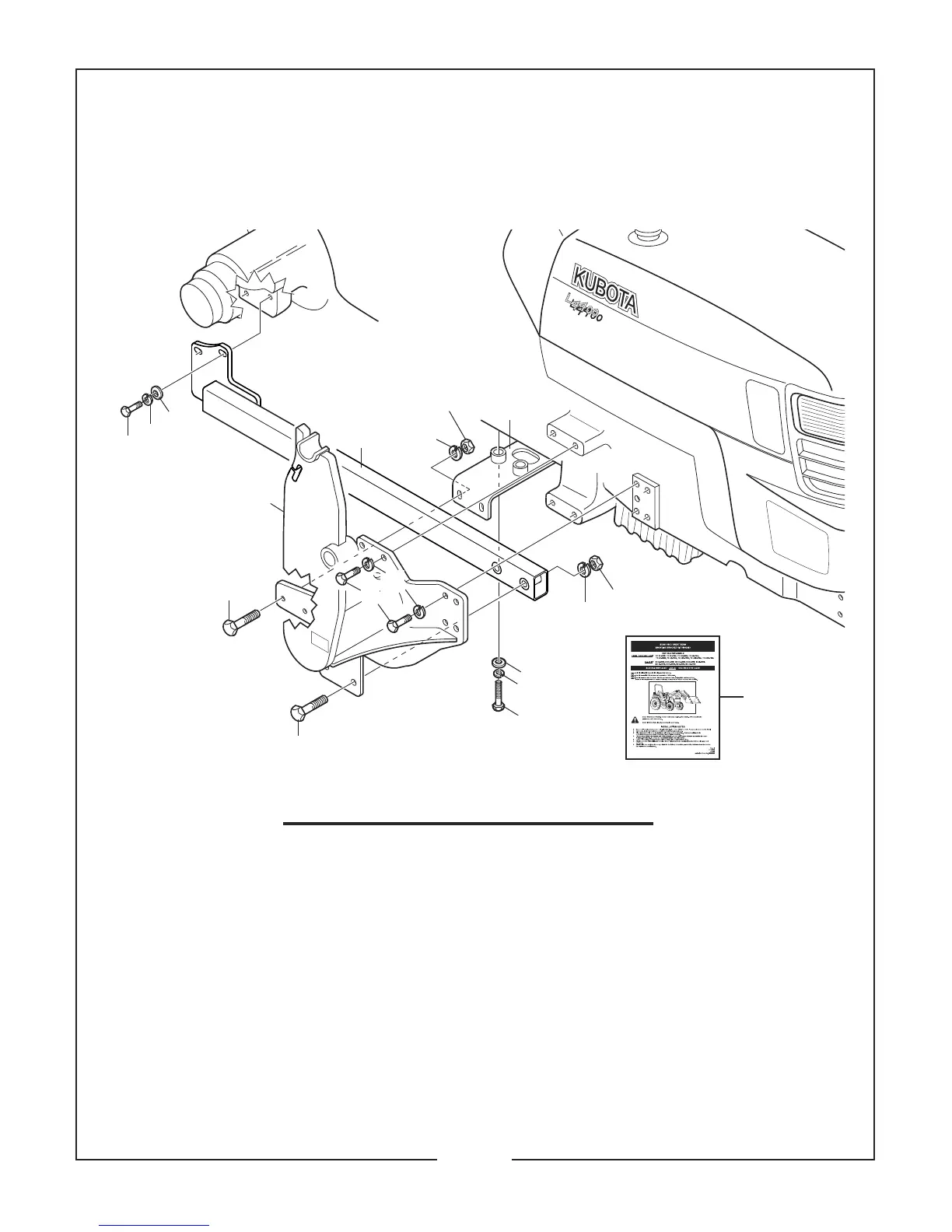

50065665 MOUNTING BRACKET KIT
3045 LOADER
TRACTORS USED ON: KUBOTA L4400-FWA, L4400-HST/FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50051144 1 R.H. Bracket Mounting Weldment
50051146 1 L.H. Bracket Mounting Weldment
2 50063228 1 L.H. Rear Brace Weldment
50063227 1 R.H. Rear Brace Weldment
3 50049212 1 Center Support Weldment
4 44277 4 Capscrew M12 x 1.25 x 35 G8.8 ZP
5 44333 4 Capscrew M12 x 1.25 x 55 G8.8 ZP
6 44200 8 Lockwasher M12 ZP
7 –––– 4 Capscrew 1/2” x 2” G5 ZP
8 –––– 4 Hex Nut 1/2” CP
9 –––– 4 Lockwasher 1/2” CP
10 –––– 4 Flatwasher 1/2” ZP
11 44291 16 Capscrew M16 x 1.5 x 45 G8.8
12 –––– 4 Hex Nut 5/8” CP GR 5
13 –––– 4 Capscrew 5/8” x 3-3/4” G5 ZP
14 –––– 20 Lockwasher 5/8” CP
15 50020926 8 Flatwasher 1/2” SAE HRD ZP
16 50065667 1 Instruction Sheet
4
6
15
1
7
13
10
6
5
14
12
2
11
14
9
8
3
16
May, 2009
