BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

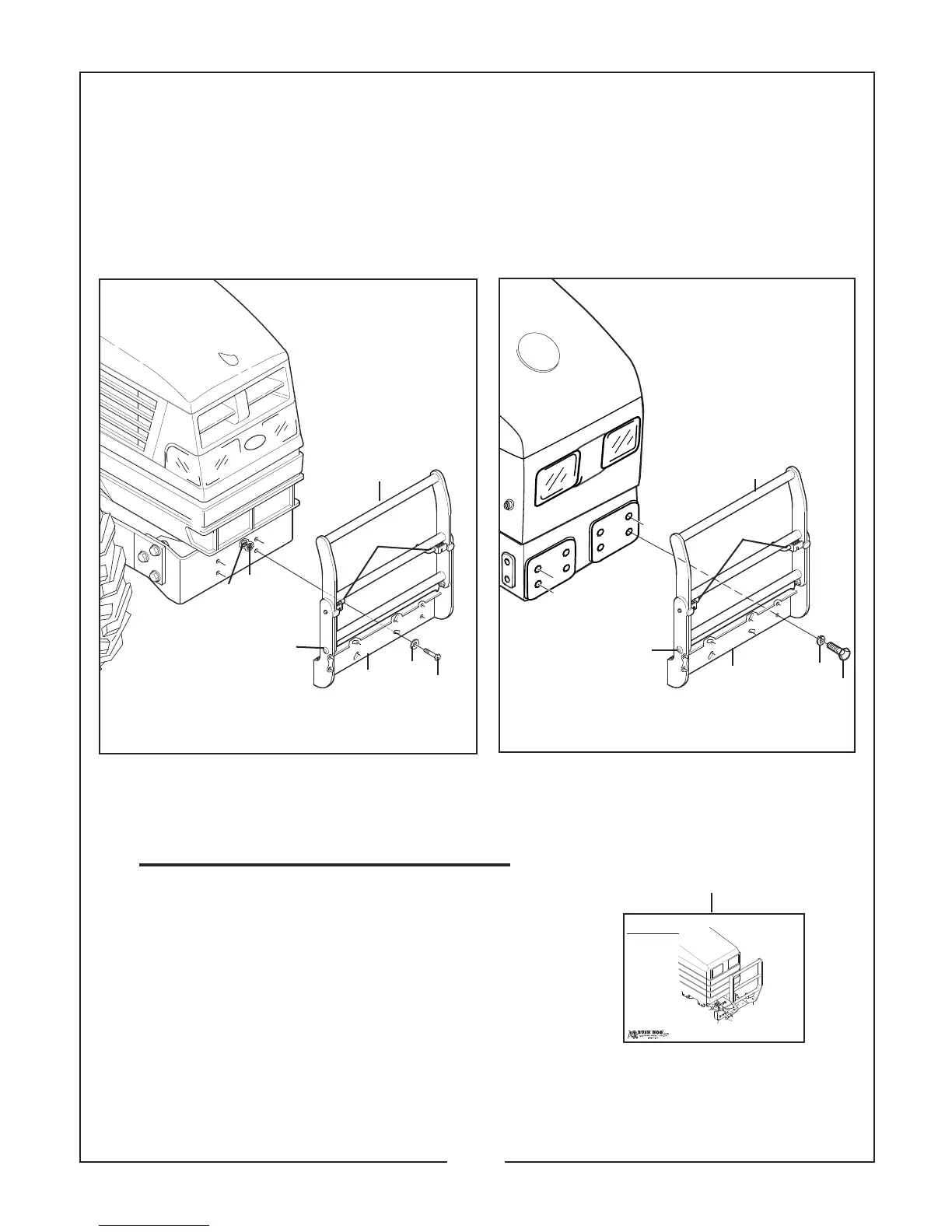

50102968 GRILL GUARD KIT
3045 LOADER
Used on Kioti DK45, DK55, DK55C,
Same 70 Explorer II, 90 Explorer II
& Cub Cadet 8454SS Tractors
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50102108 1 Grill Guard
2 50102964 1 Front Bracket
3 ––––– 4 Capscrew 1/2” x 2-1/2” G5 ZP
4 ––––– 4 Lockwasher 1/2” ZP
5 ––––– 4 Hex Nut 1/2” ZP
6 44134 2 Carriage Bolt 1/2” x 1-3/4” G5
7 15554 2 Top Lock Hex Nut 1/2”
8 50032700 2 Latch Pin
9 50034114 2 Spring
10 44078 2 Roll Pin
11 50040958 1 Instruction Sheet
12 50021763 4 Capscrew M14 x 2 x 40
13 44233 4 Lockwasher M14
14 –––– 4 Flatwasher 1/2”
11
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
1-20C-1
1
1
3
12
13
6,7
6,7
4
5
2
2
14
8,9,10
8,9,10
Kioti DK45, DK55, DK55C
Cub Cadet 8454SS
Same 70 Explorer II, 90 Explorer II
SEPTEMBER, 2006
