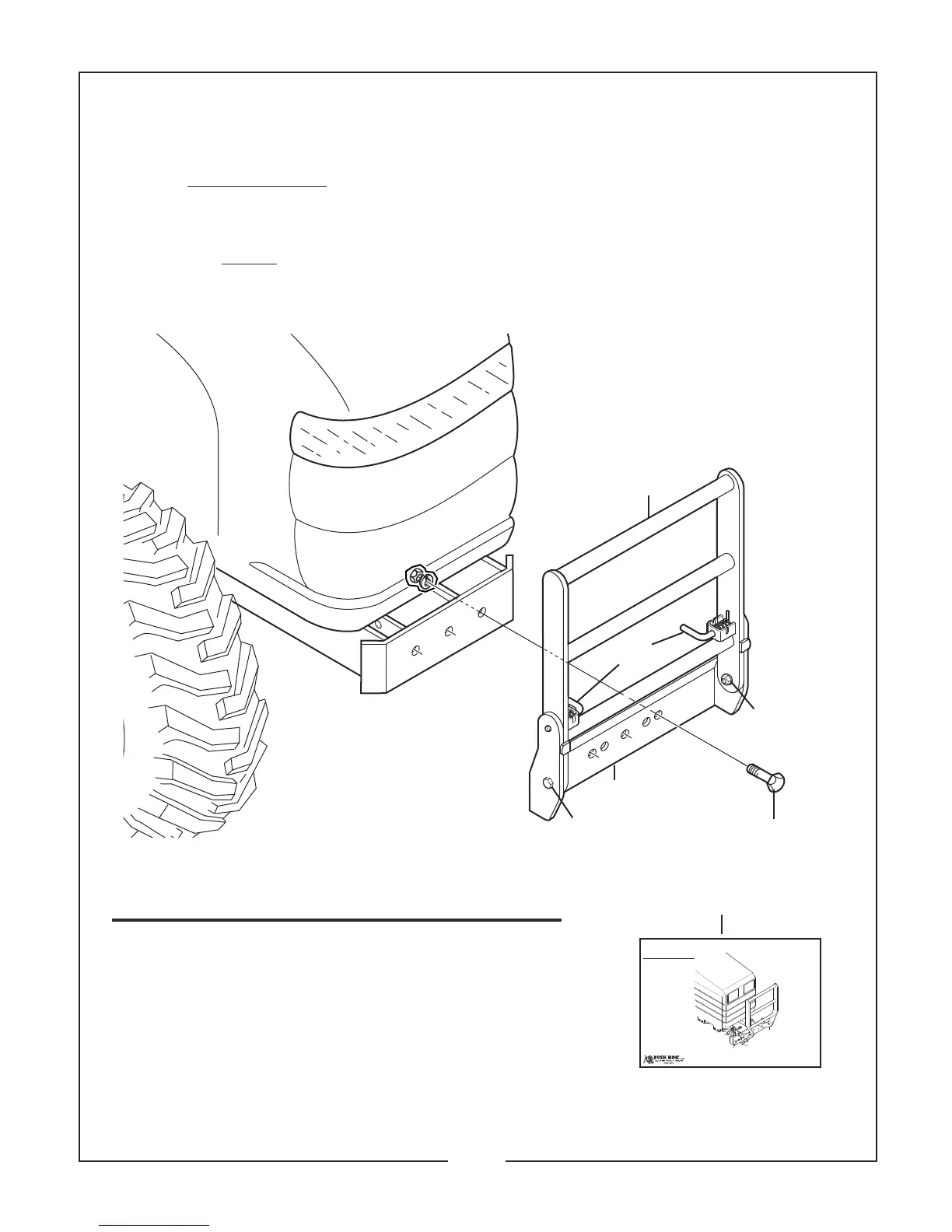

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
3,4,5
8,9,10
6,7
1
11
2
1-20C-2
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50035526 1 Front Mounting Bracket
2 50035523 1 Grill Guard
3 –––– 3 Capscrew 5/8” x 2” G5 ZP
4 –––– 3 Lockwasher 5/8” CP
5 –––– 3 Hex Nut 5/8” CP
6 –––– 2 Capscrew 1/2” x 1-3/4” G5 ZP
7 19518 2 Locknut 1/2” CP
8 50032700 2 Latch Pin
9 50034114 2 Spring
10 44078 2 Roll Pin
11 50035529 1 Instruction Sheet
6,7
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
May, 2009
50035527 GRILL GUARD KIT
3045 LOADER
FOR TRACTOR MODELS:
FORD/ NEW HOLLAND 1530, 1630, 1725, 1925, TC 25, TC 25D, TC 29, TC 29D, TC 29DA, TC 30,
TC 31DA, TC 33, TC 33D, TC 33DA, TC 34DA, TC 35, TC 35A, TC 35D, TC 40, TC 40D, TC 45, TC 45D,
TC 35DA, TC 40A, TC 40DA, TC 45A, TC 45DA, T1520, T2210, T2220, T2310, T2320, T2330,
BOOMER 2030, BOOMER 2035, BOOMER 3040, BOOMER 3045 & BOOMER 3050
CASE/ IH D 25, DX 25, D 29, DX 29, DX 29 FARMALL, DX 31 FARMALL, D 33, DX 33,
DX 33 FARMALL, DX 34 FARMALL, D 35, D 40, DX 35, DX 40, D 45, DX 45,
FARMALL 31, FARMALL 35, FARMALL 40, FARMALL 45, FARMALL 50
