Bush Hog LOADER 3045 - Page 27

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

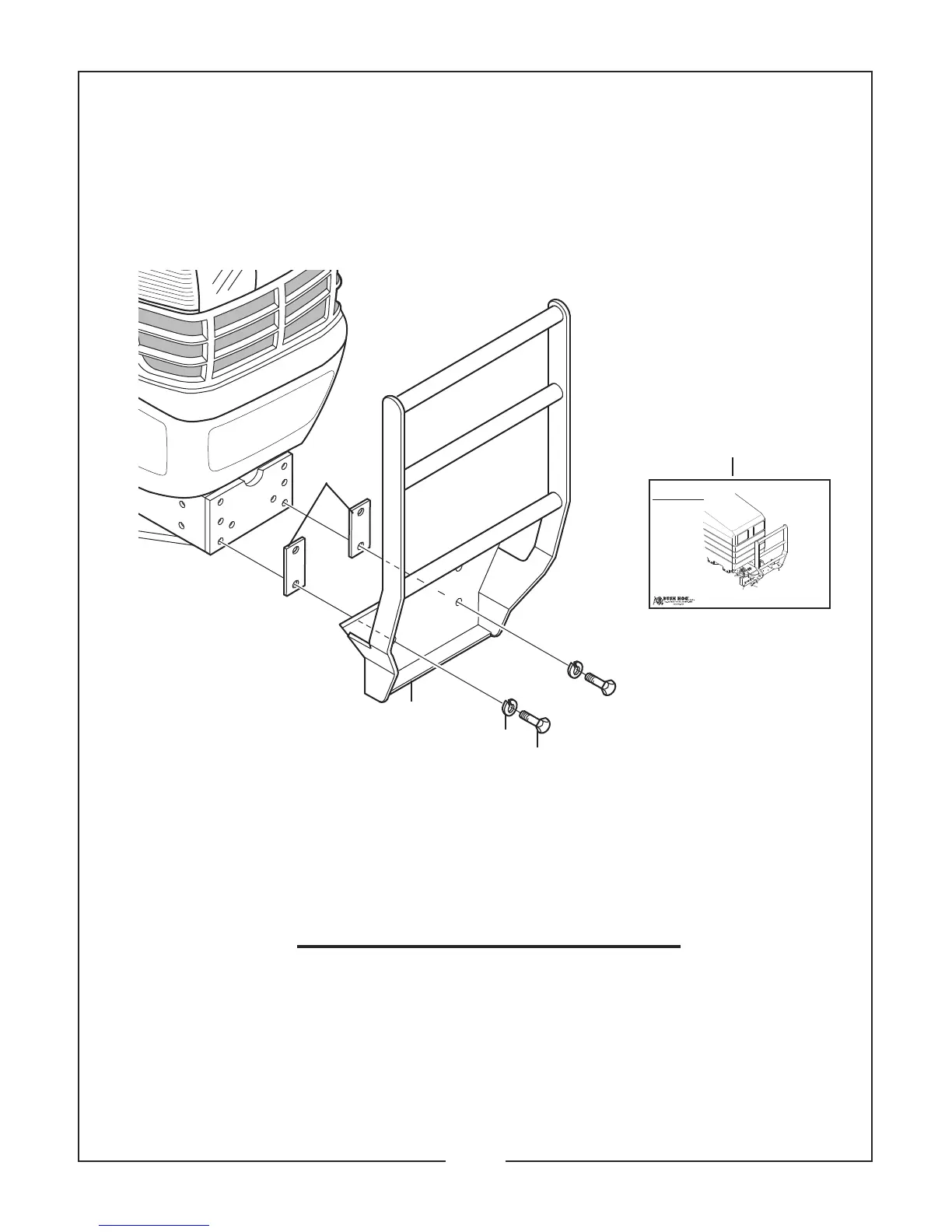

50040941 GRILL GUARD KIT
3045 LOADER
Kubota Models: L3130, L3430, L3830, L2800, L3400
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50040925 1 Grill Guard
2 44396 4 Capscrew M14 x 1.5 x 40 G8.8 ZP
3 44233 4 Lockwasher M14 ZP
4 50040944 1 Instruction Sheet
5 50044988 2 Spacer Pad
1
2
5
4
3
1-20C-3
SEPTEMBER, 2006
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
