BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20C-5

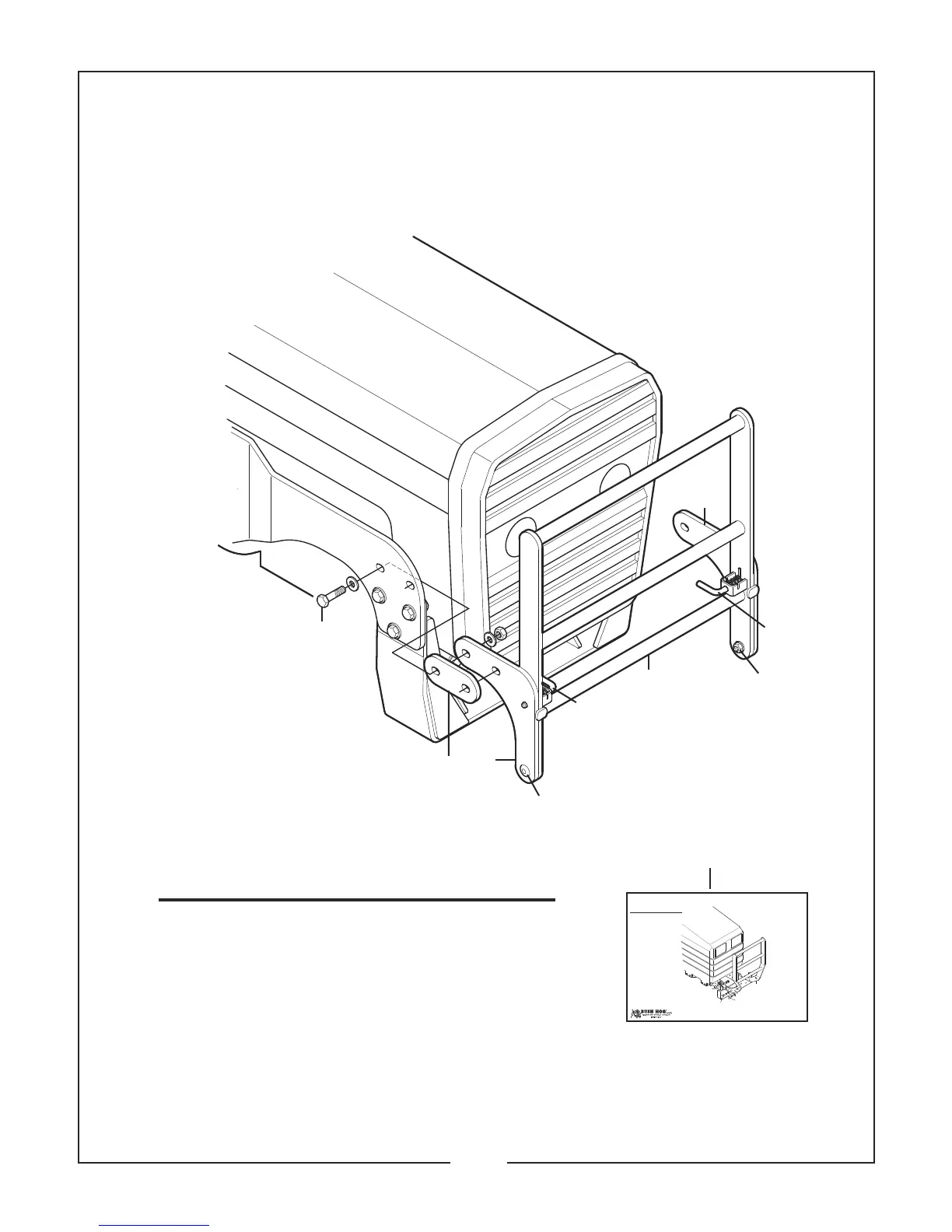

50102172 GRILL GUARD KIT
For 3045 Loader
Used on Massey Ferguson 240, 240S, 241, 243, 250, 253, 263 Tractors
2
12
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50102174 1 Grill Guard
2 50102177 2 Mounting Plate
3 50101341 2 Plate Spacer
4 4 Capscrew 5/8” x 2-1/2” Gr. 5 ZP
5 44814 8 Flatwasher 5/8” SAE HRD ZP
6 15598 4 Locknut 5/8”
7 44134 2 Carriage Bolt 1/2” x 1-3/4” G5 ZP
8 50020921 2 Locknut 1/2” CP
9 50032700 2 Latch Pin
10 50034114 2 Spring
11 44078 2 Roll Pin
12 50036184 1 Instruction Sheet
1
4,5,5,6
7,8
2
3
7,8
9,10,11
9,10,11
SEPTEMBER, 2006
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/ 27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
